SMART MINI – LINEAR WAY – (CAT40, 12K)

$39,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

23.6
Y Travel

17.72
Z Travel

19.69
Table Size

29.53 x 17.72
Spindle Taper

CAT40
Spindle Speed

12,000 rpm
AC Spindle Motor

10/15 HP

WSX-TEST

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

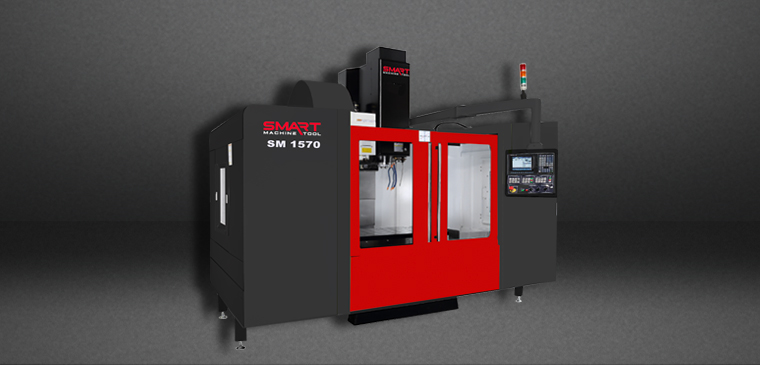

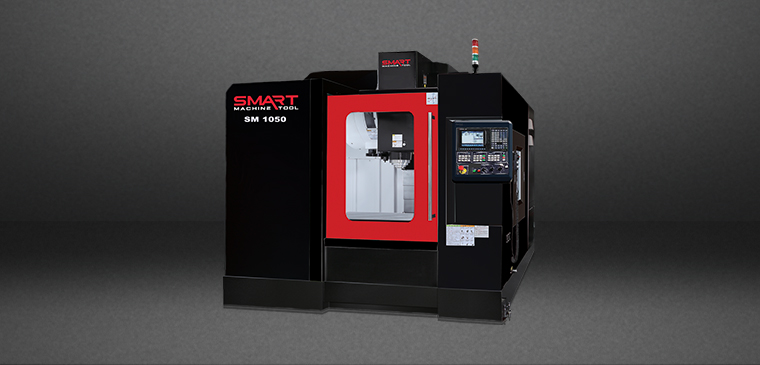

SM 1050, 1370, 1570 Linear Guideway Series Brochure

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

High Speed Tapping and Machining Centers Brochure

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

SM 1100, 1370, 1682, 2082, 2110 Box Way Series Brochure

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

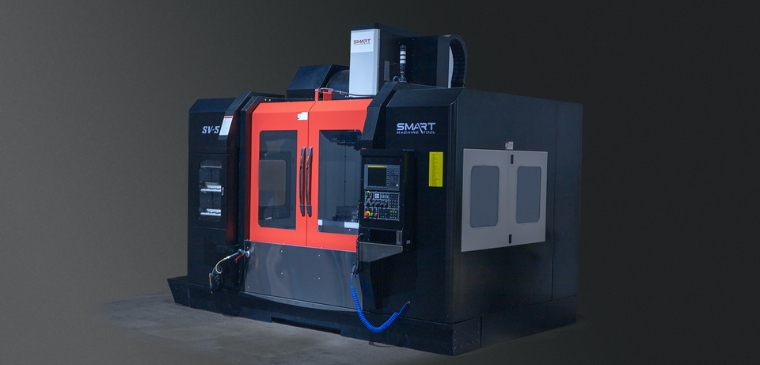

SV Series Brochure

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

SW 216 – BRIDGE TYPE – (CAT50, 6K)

$419,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

82.68
Y Travel

62.99
Z Travel

30.71
Table Size

78.74 x 57.09
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

SMART SM 1682-50 – BOX WAY – (CAT50, 6K)

$239,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

62.99
Y Travel

32.28
Z Travel

25.98
Table Size

69.9 x 32.28
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35/30 hp
Magazine Capacity

40

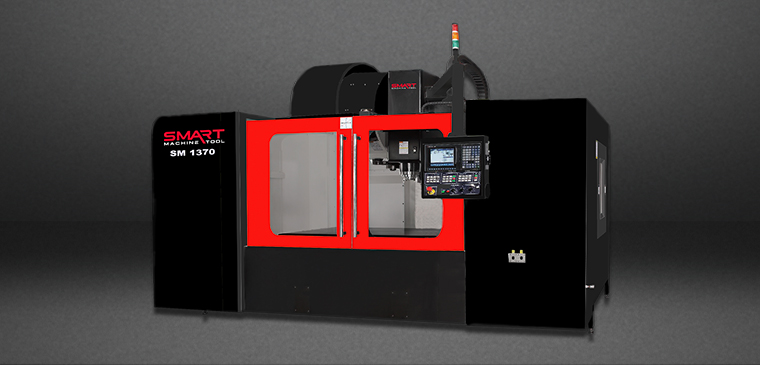

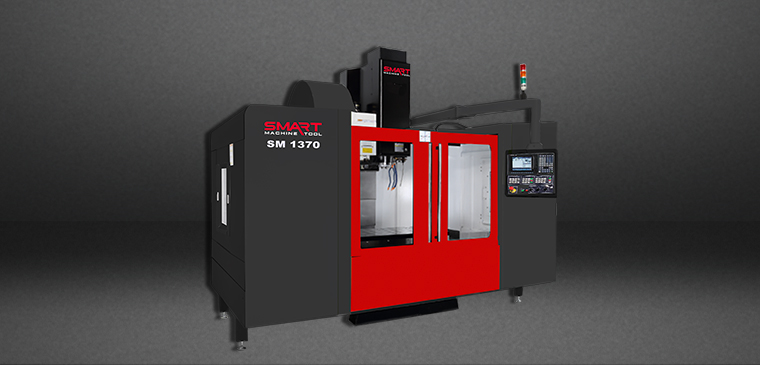

SMART SM 1370-50 – BOX WAY – (CAT50, 6K)

$189,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

51.18
Y Travel

27.56
Z Travel

25.98
Table Size

57.09 x 27.56
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35/30 hp
Magazine Capacity

24

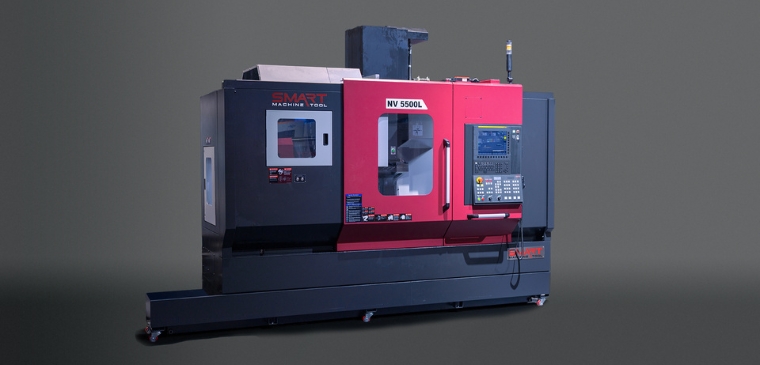

SMART NV 5500L – LINEAR WAY – (CAT40, 12K)

$119,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

53.15
Y Travel

22.44
Z Travel

20.8
Table Size

59.06 x 22.44
Spindle Taper

CAT40 (BIG Plus)
Spindle Speed

12,000 rpm
Spindle HP

25 hp
Magazine Capacity

30

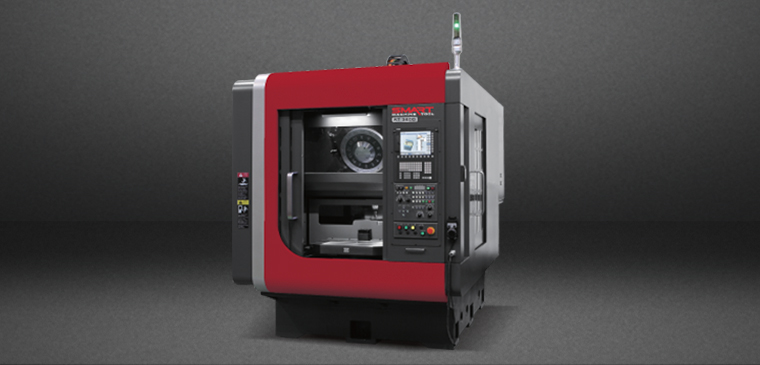

SMART KT 360D – LINEAR WAY – (BT30, 15K)

$99,900 $79,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

20.5
Y Travel

14.2
Z Travel

11.8
Table Size

29.59 x 13.7
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10/7.5 hp
Magazine Capacity

14

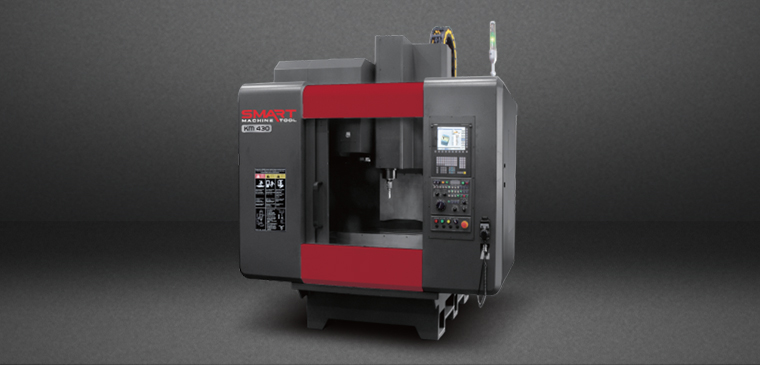

SMART KM 430 – CROSS ROLLER WAY – (BT40, 12K)

$99,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

31
Y Travel

16.9
Z Travel

16.9
Table Size

36 x 16
Spindle Taper

BT40
Spindle Speed

12,000 rpm
Spindle HP

15 hp
Magazine Capacity

20

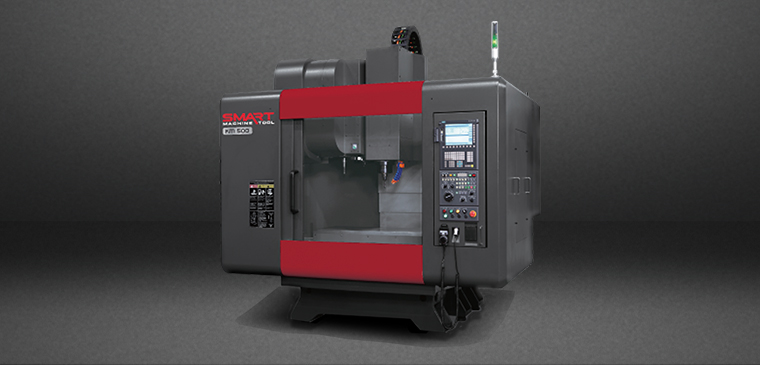

SMART KM 500 – CROSS ROLLER WAY – (BT30, 12K)

$119,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

39
Y Travel

19.9
Z Travel

20.4
Table Size

40 x 20
Spindle Taper

BT30
Spindle Speed

12,000 rpm
Spindle HP

15 hp
Magazine Capacity

24

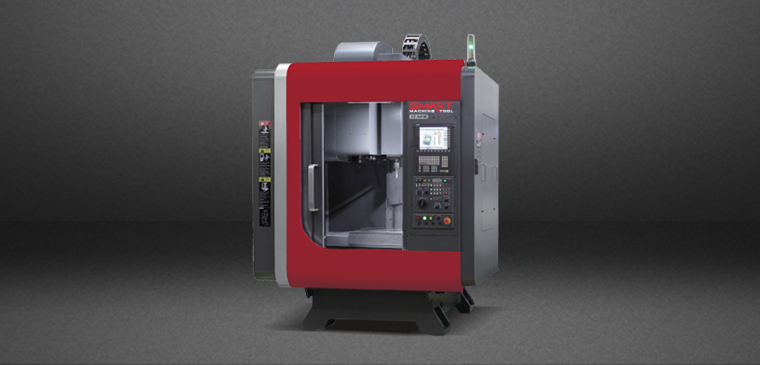

SMART KT 420 – CROSS ROLLER WAY – (BT30, 15K)

$74,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

22
Y Travel

16.5
Z Travel

11.8
Table Size

25.9 x 15.7
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10 hp
Magazine Capacity

14

SMART KT 420A – CROSS ROLLER WAY – (BT30, 15K)

$75,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

22
Y Travel

16.5
Z Travel

11.8
Table Size

25.9 x 15.7
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

25 / 7.5 hp
Magazine Capacity

20

SMART KT 420L – CROSS ROLLER WAY – (BT30, 15K)

$78,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

27.5
Y Travel

16.5
Z Travel

11.8
Table Size

31.5 x 15.7
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10 hp
Magazine Capacity

14

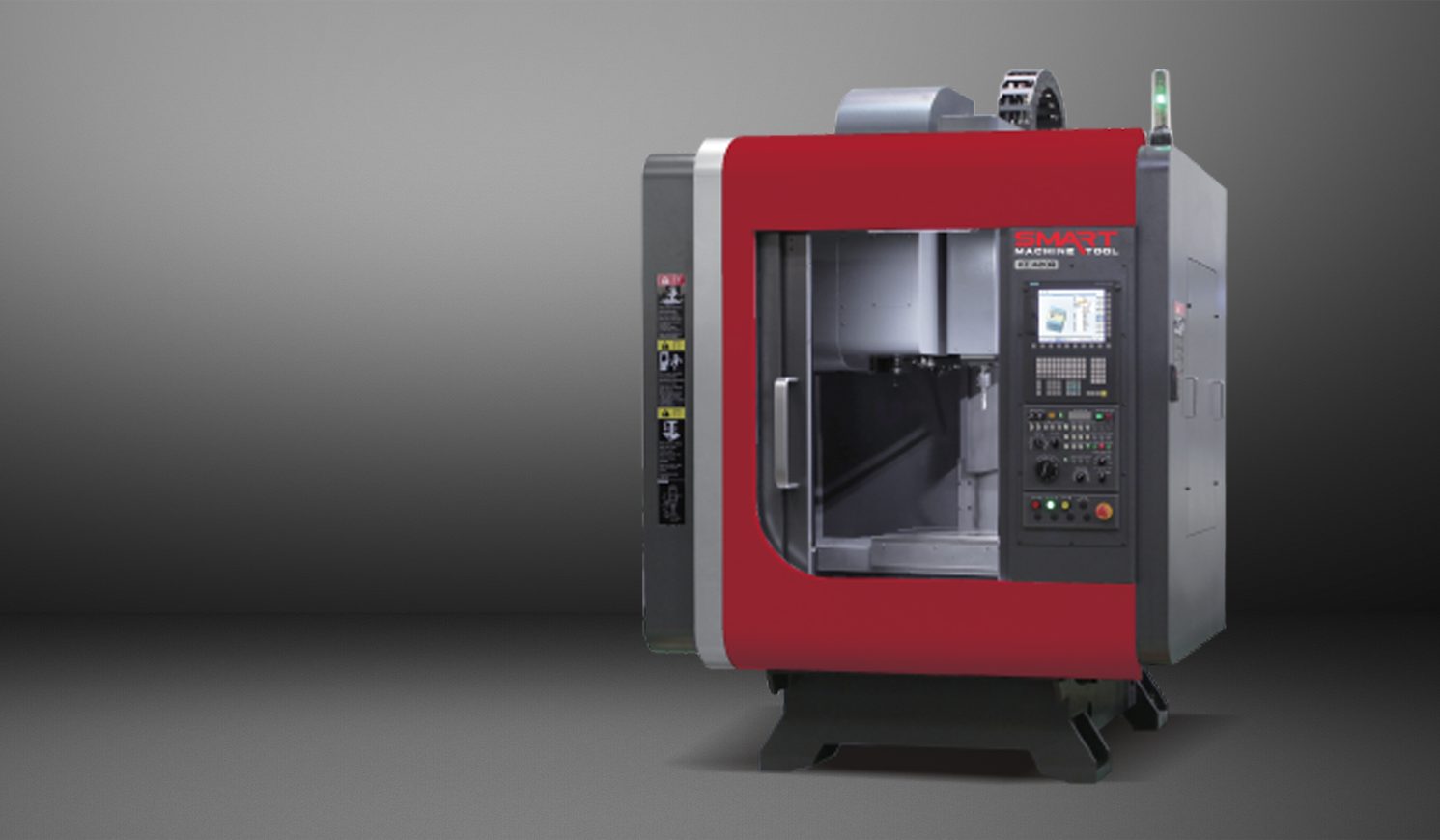

SMART KT 420AL – CROSS ROLLER WAY – (BT30, 15K)

$85,900 $69,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

27.5
Y Travel

16.5
Z Travel

11.8
Table Size

31.5 x 15.7
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

25 / 7.5 hp
Magazine Capacity

20

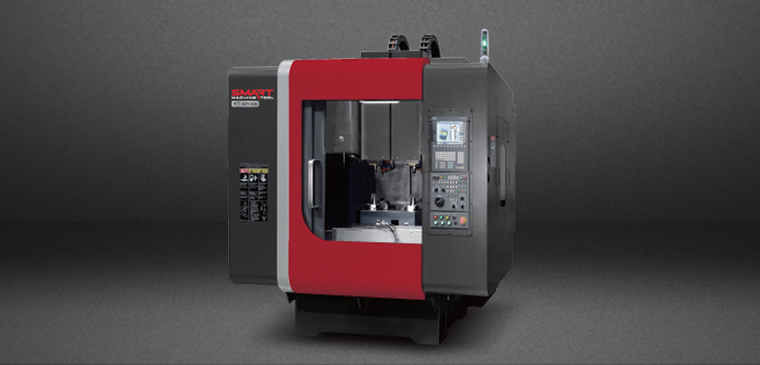

SMART KT 420DH – CROSS ROLLER WAY – (BT30, 15K)

$159,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

22
Y Travel

16.5
Z Travel

16.9
Table Size

15.7 x 45
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10 hp
Magazine Capacity

2-20

SMART KT 450DH – CROSS ROLLER WAY – (CAT40, 12K)

$179,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

22
Y Travel

16
Z Travel

16.9
Table Size

15.7 x 45
Spindle Taper

CAT40
Spindle Speed

12,000 rpm
Spindle HP

15 hp
Magazine Capacity

2-26

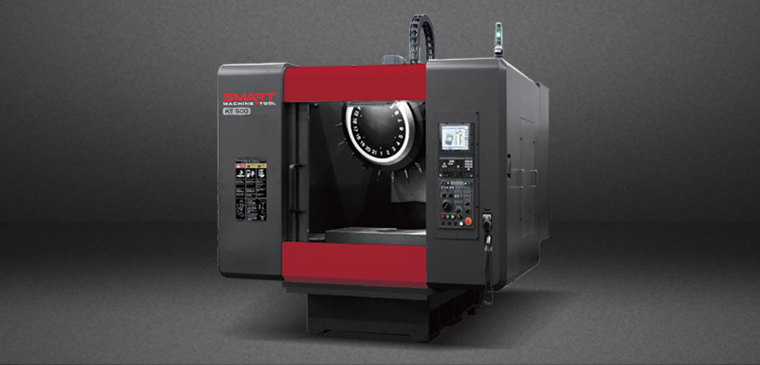

SMART KT 500 – CROSS ROLLER WAY – (BT30, 15K)

$99,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

39
Y Travel

19
Z Travel

12
Table Size

44 x 19
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10 hp
Magazine Capacity

14

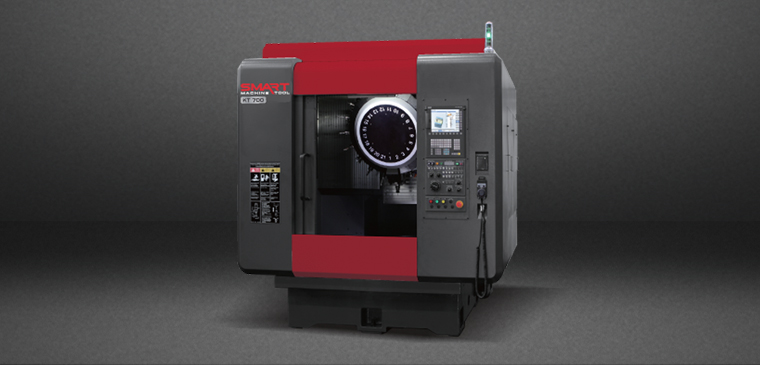

SMART KT 700 – CROSS ROLLER WAY – (BT30, 15K)

$109,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

31
Y Travel

27
Z Travel

12
Table Size

31 x 27
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10 hp
Magazine Capacity

14

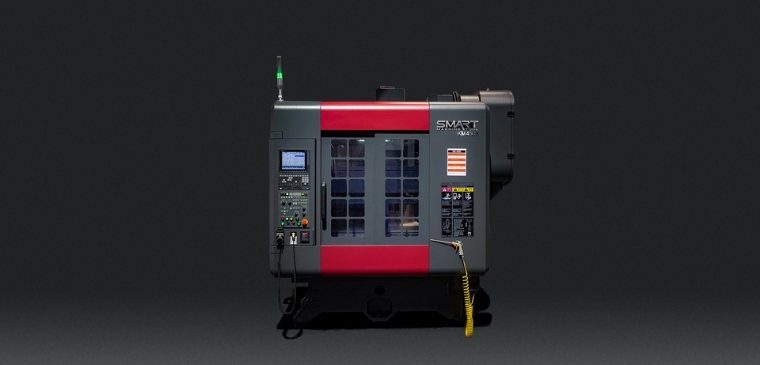

SMART KM 450D – LINEAR WAY – (CAT40, 12K)

$136,900 $119,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

27.6
Y Travel

17.7
Z Travel

18.9
Table Size

27.5 x 17.7
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

15/10 hp
Magazine Capacity

30

SMART SM 1100-50 – BOX WAY – (CAT50, 6K)

$169,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

43.31
Y Travel

23.62
Z Travel

24.8
Table Size

50 x 23.62
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

30/25 hp
Magazine Capacity

32

SMART SM 1682-50 – BOX WAY – (CAT50, 12K)

$281,800
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

62.99
Y Travel

32.28
Z Travel

25.98
Table Size

69.9 x 32.28
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

12,000 rpm
Spindle HP

25 hp
Magazine Capacity

40

SMART SM 2082-50 – BOX WAY – (CAT50, 6K)

$259,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

81.1
Y Travel

32.28
Z Travel

25.98
Table Size

84.65 x 32.28
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35/30 hp
Magazine Capacity

40

SMART SM 2110-50 – BOX WAY – (CAT50, 6K)

$349,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

82.68
Y Travel

40.16
Z Travel

32.28
Table Size

88.58 x 40.16
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35/30 hp
Magazine Capacity

40

HSA 2212 – BRIDGE TYPE – (CAT50, 6K/12K)

$399,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

88.58
Y Travel

47.24
Z Travel

30.71
Table Size

78.74 x 43.31
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/12,000 RPM
Spindle HP

35 hp
Magazine Capacity

40

HSA 3212 – BRIDGE TYPE – (CAT50, 6K)

$439,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

127.95
Y Travel

47.24
Z Travel

30.71
Table Size

118.11 x 43.31
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 RPM
Spindle HP

35 hp
Magazine Capacity

40

HSA 2212 – BRIDGE TYPE – (CAT40, 12K)

$399,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

88.58
Y Travel

47.24
Z Travel

30.71
Table Size

78.74 x 43.31
Spindle Taper

CAT40 (BIG Plus)
Spindle Speed

12,000 RPM
Spindle HP

25 hp
Magazine Capacity

40

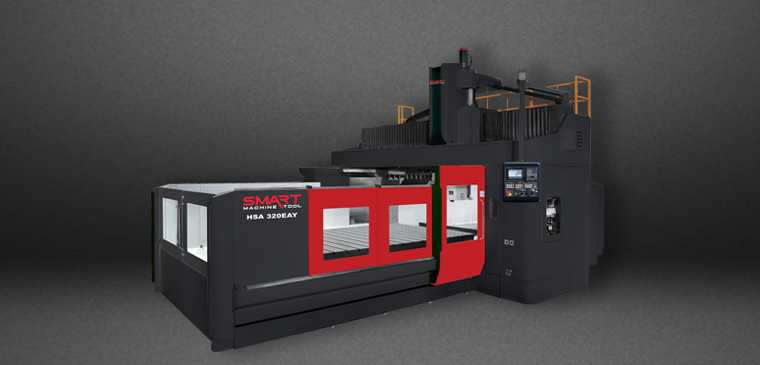

HSA 320EAY – 5-SIDED BRIDGE TYPE – (CAT50, 6K/10K)

$769,000
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

118.11
Y Travel

110.24
Z Travel

39.37
Table Size

118.11 x 70.87
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/10,000 RPM
Spindle HP

60 hp
Magazine Capacity

32

HSA 420EAY – 5-SIDED BRIDGE TYPE – (CAT50, 6K/10K)

$839,000
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

157.48
Y Travel

110.24
Z Travel

39.37
Table Size

157.48 x 70.87
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/10,000 RPM
Spindle HP

60 hp
Magazine Capacity

32

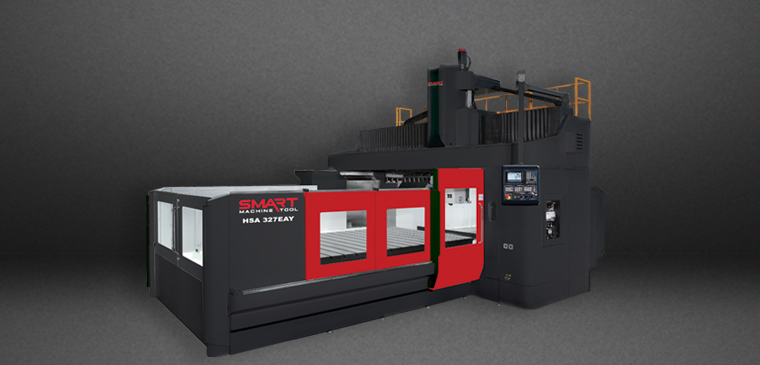

HSA 327EAY – 5-SIDED BRIDGE TYPE – (CAT50, 6K/10K)

$819,000
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

118.11
Y Travel

137.8
Z Travel

39.37
Table Size

118.11 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/10,000 RPM
Spindle HP

30/25 hp
Magazine Capacity

32

HSA 427EAY – 5-SIDED BRIDGE TYPE – (CAT50, 6K/10K)

$869,000
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

157.48
Y Travel

137.8
Z Travel

39.37
Table Size

157.48 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/10,000 RPM
Spindle HP

30/25 hp
Magazine Capacity

32

HSA 423 – BRIDGE TYPE – (CAT50, 6K/12K)

$669,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

157.48
Y Travel

90.55
Z Travel

30.71
Table Size

157.48 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/12,000 RPM
Spindle HP

35 hp
Magazine Capacity

40

HSA 523 – BRIDGE TYPE – (CAT50, 6K/12K)

$729,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

196.85
Y Travel

90.55
Z Travel

30.71
Table Size

196.85 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/12,000 RPM
Spindle HP

35 hp
Magazine Capacity

40

HSA 323 – BRIDGE TYPE – (CAT50, 6K/12K)

$599,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

118.11
Y Travel

90.55
Z Travel

30.71
Table Size

118.11 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/12,000 RPM
Spindle HP

35 hp
Magazine Capacity

40

SW 316 – BRIDGE TYPE – (CAT50, 6K)

$439,900 $339,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

122.05
Y Travel

62.99
Z Travel

30.71
Table Size

118.11 x 57.09
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

SW 323 – BRIDGE TYPE – (CAT50, 6K)

$529,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

118.11
Y Travel

90.55
Z Travel

30.71
Table Size

118.11 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

SW 423 – BRIDGE TYPE – (CAT50, 6K)

$599,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

157.48
Y Travel

90.55
Z Travel

30.71
Table Size

157.48 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

SW 523 – BRIDGE TYPE – (CAT50, 6K)

$649,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

196.85
Y Travel

90.55
Z Travel

30.71
Table Size

196.85 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

SW 623 – BRIDGE TYPE – (CAT50, 6K)

$699,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

236.22
Y Travel

90.55
Z Travel

30.71
Table Size

236.22 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

Kenichi Compact B

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Kenichi Focus 5

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Kenichi Linmax B

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Kenichi Overview

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

HNK R Series

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

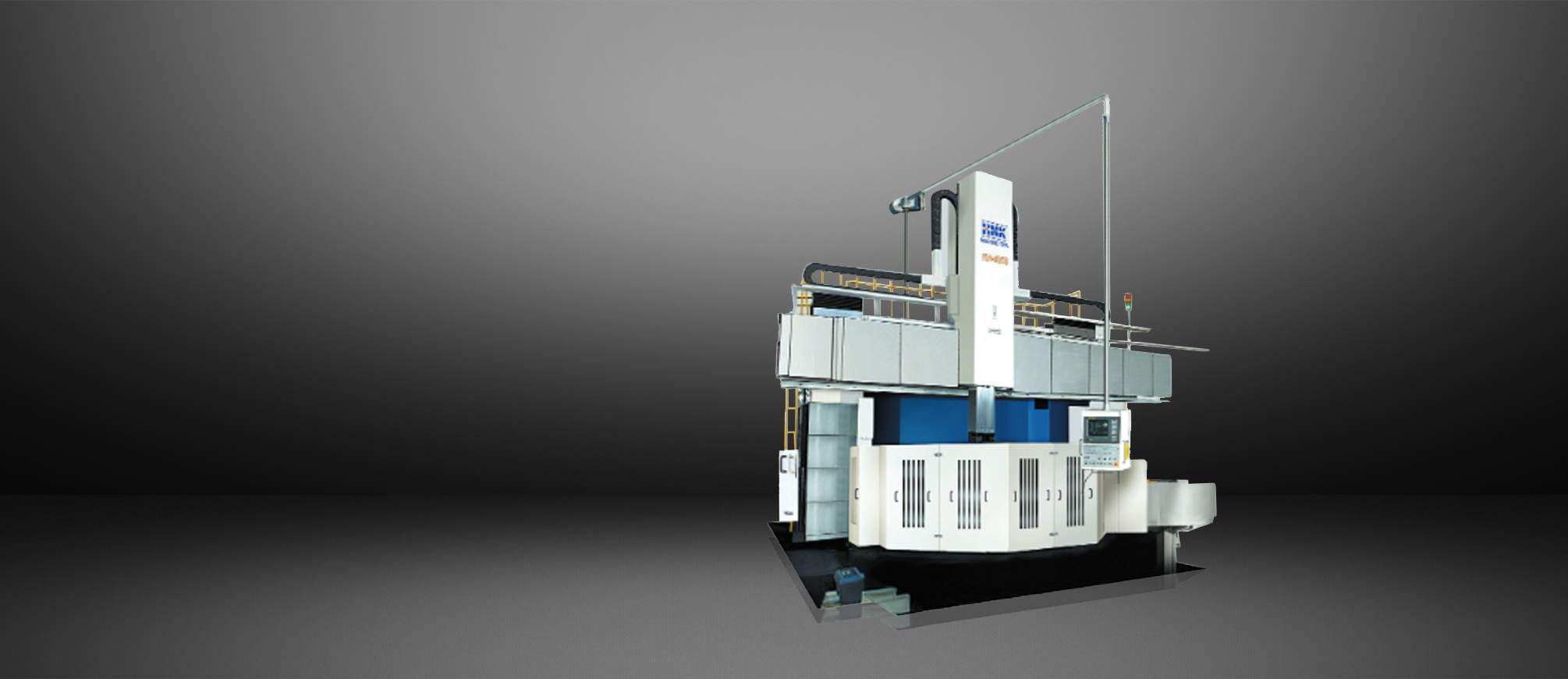

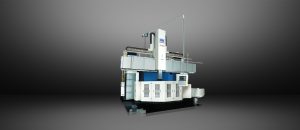

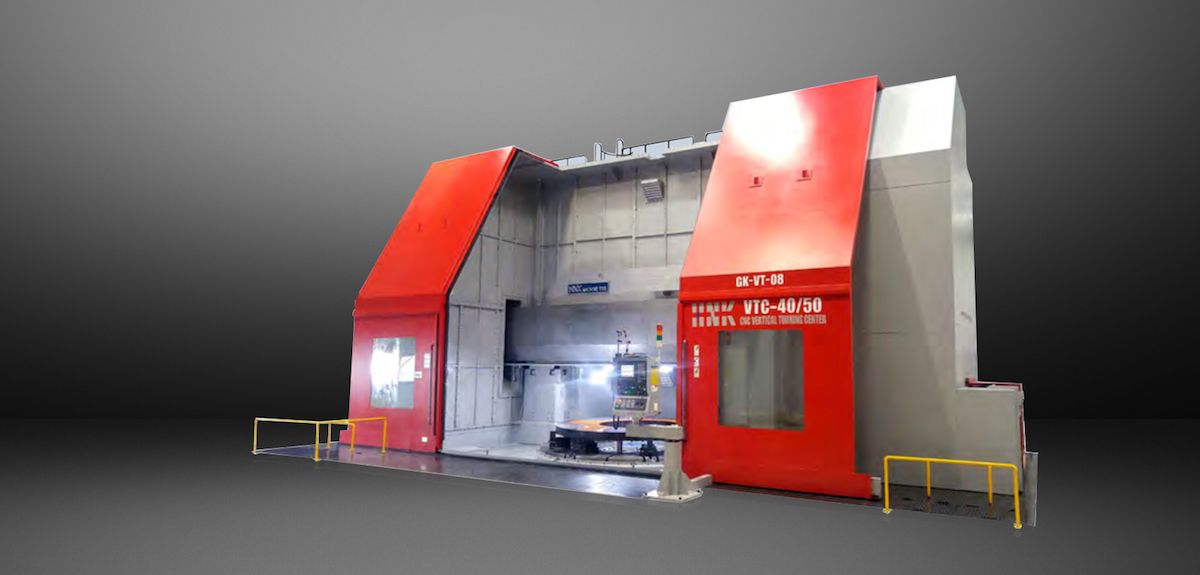

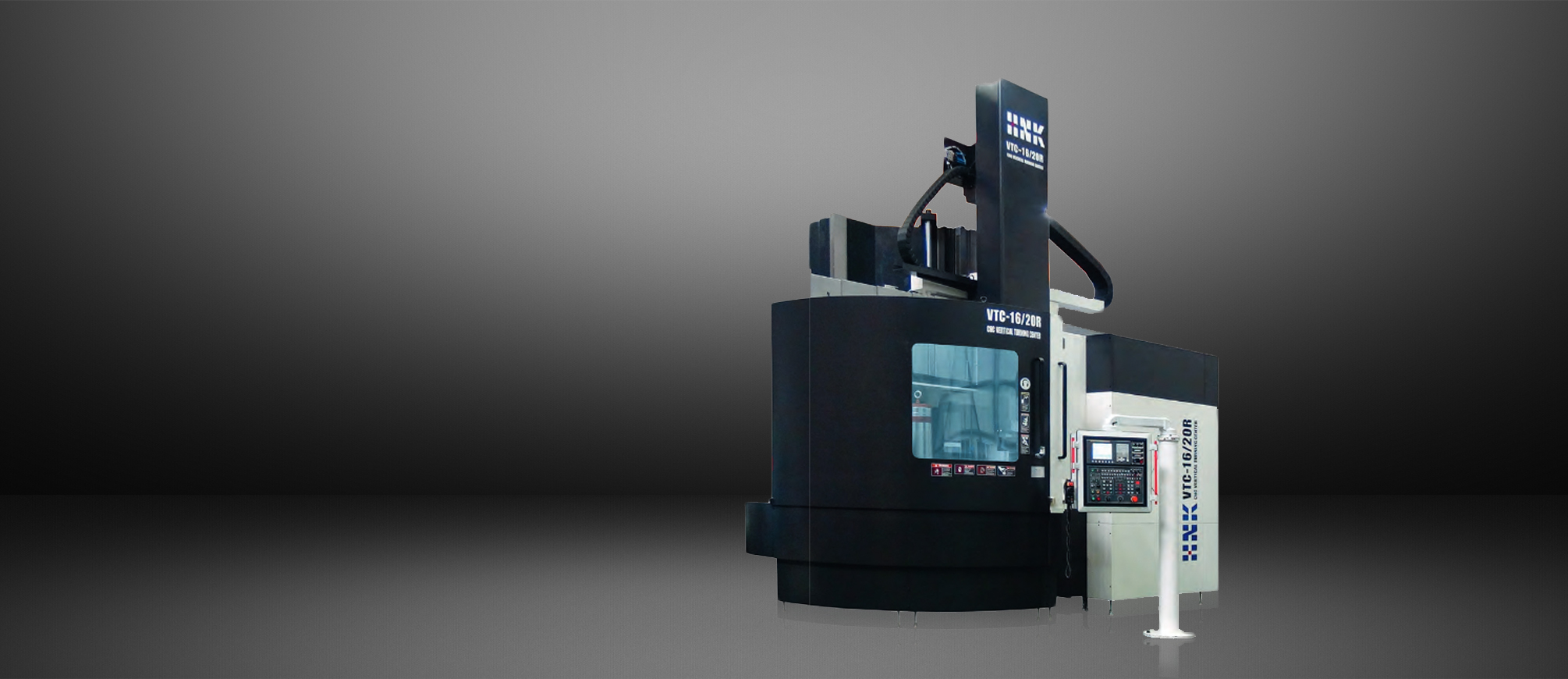

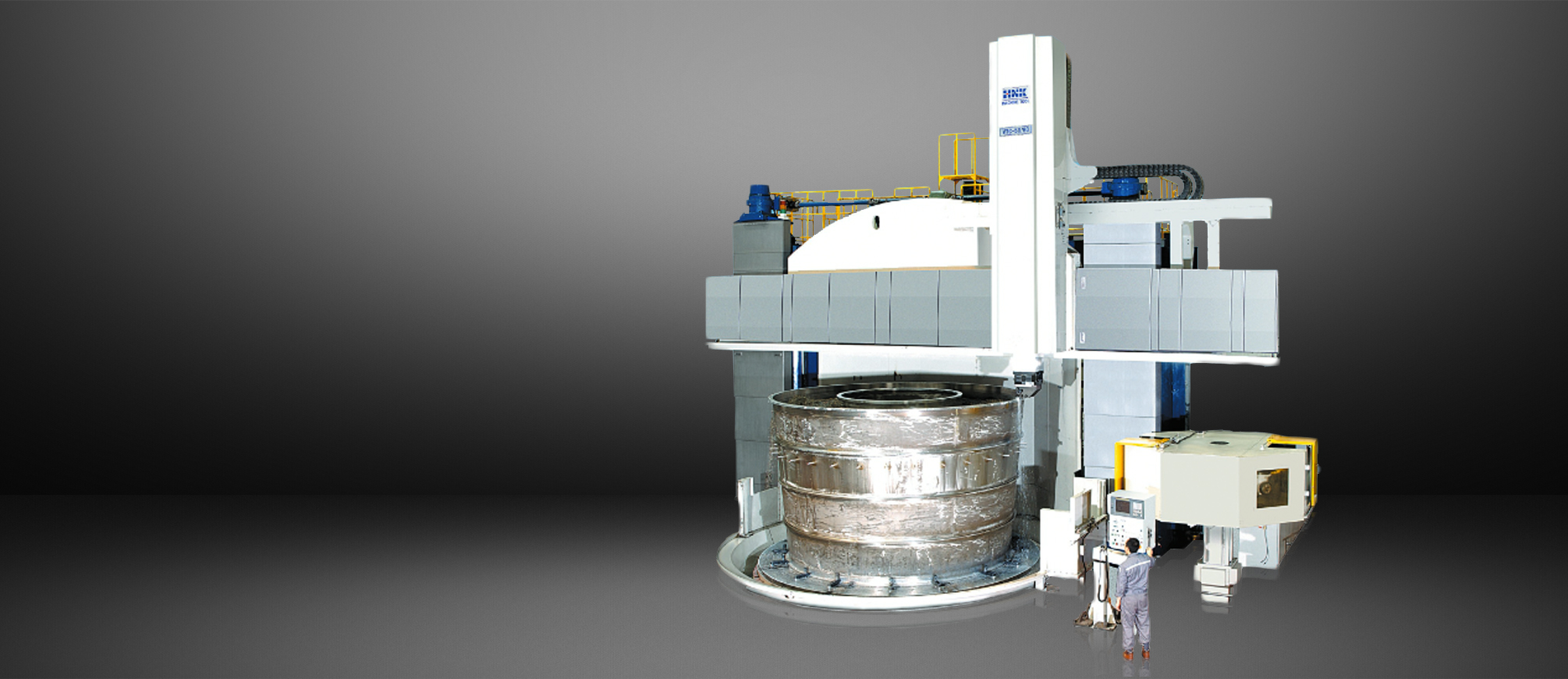

HNK NT & VTC Series

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

HNK KTM

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

HNK HPM

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

HNK HGH-HGG

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

HNK HL Series

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

HNK HFB Series

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

HNK HFB FLYER

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

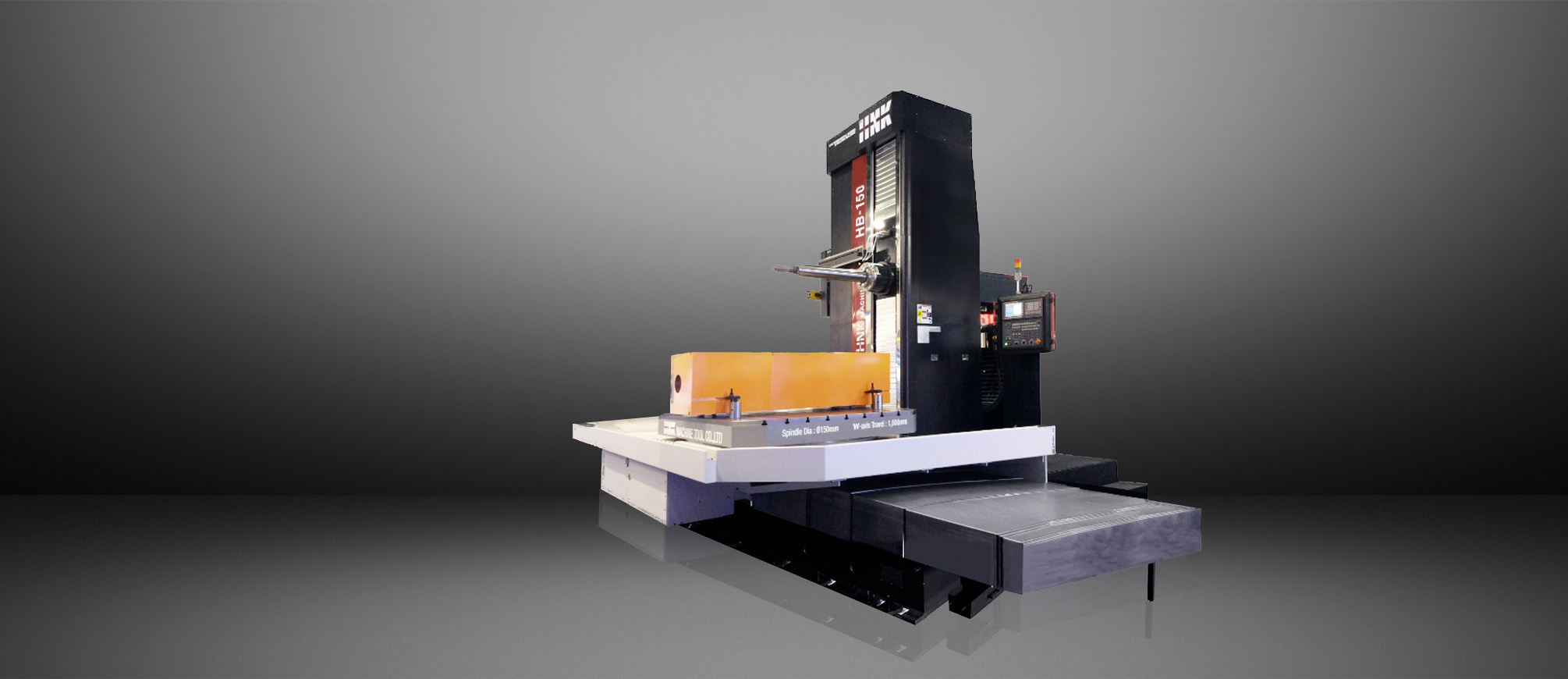

HNK HB Series

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

HNK General

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

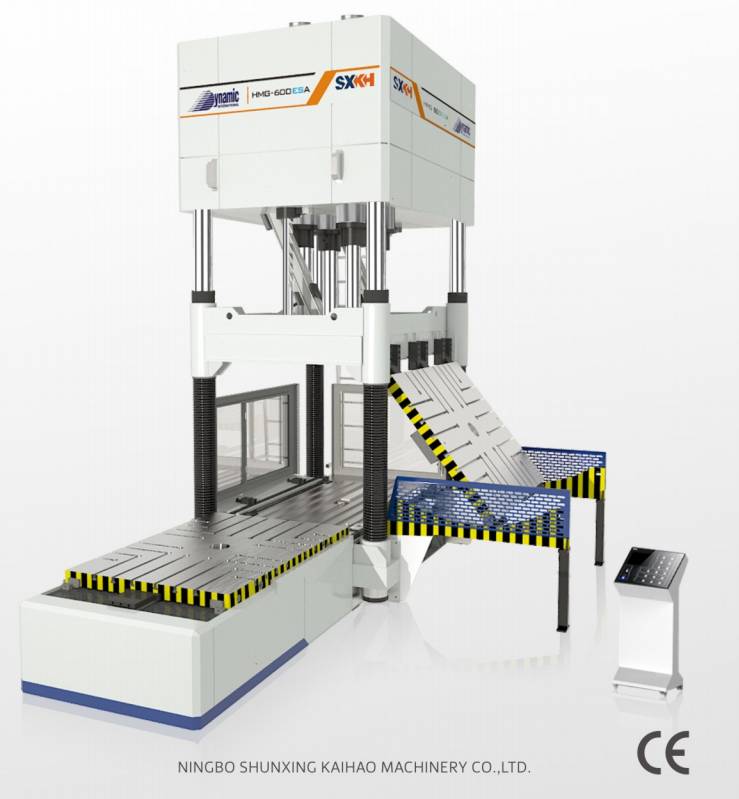

SXKH

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

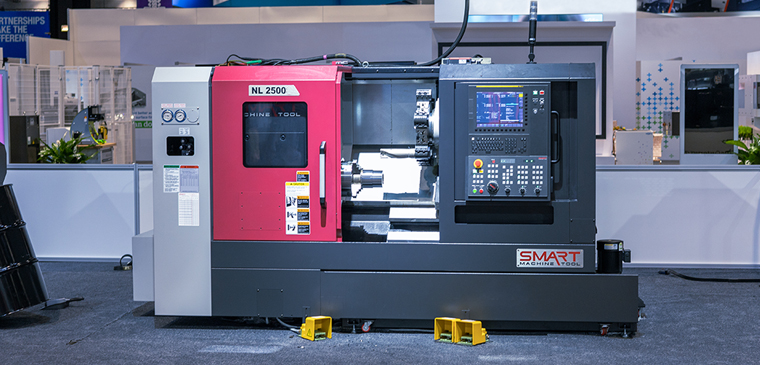

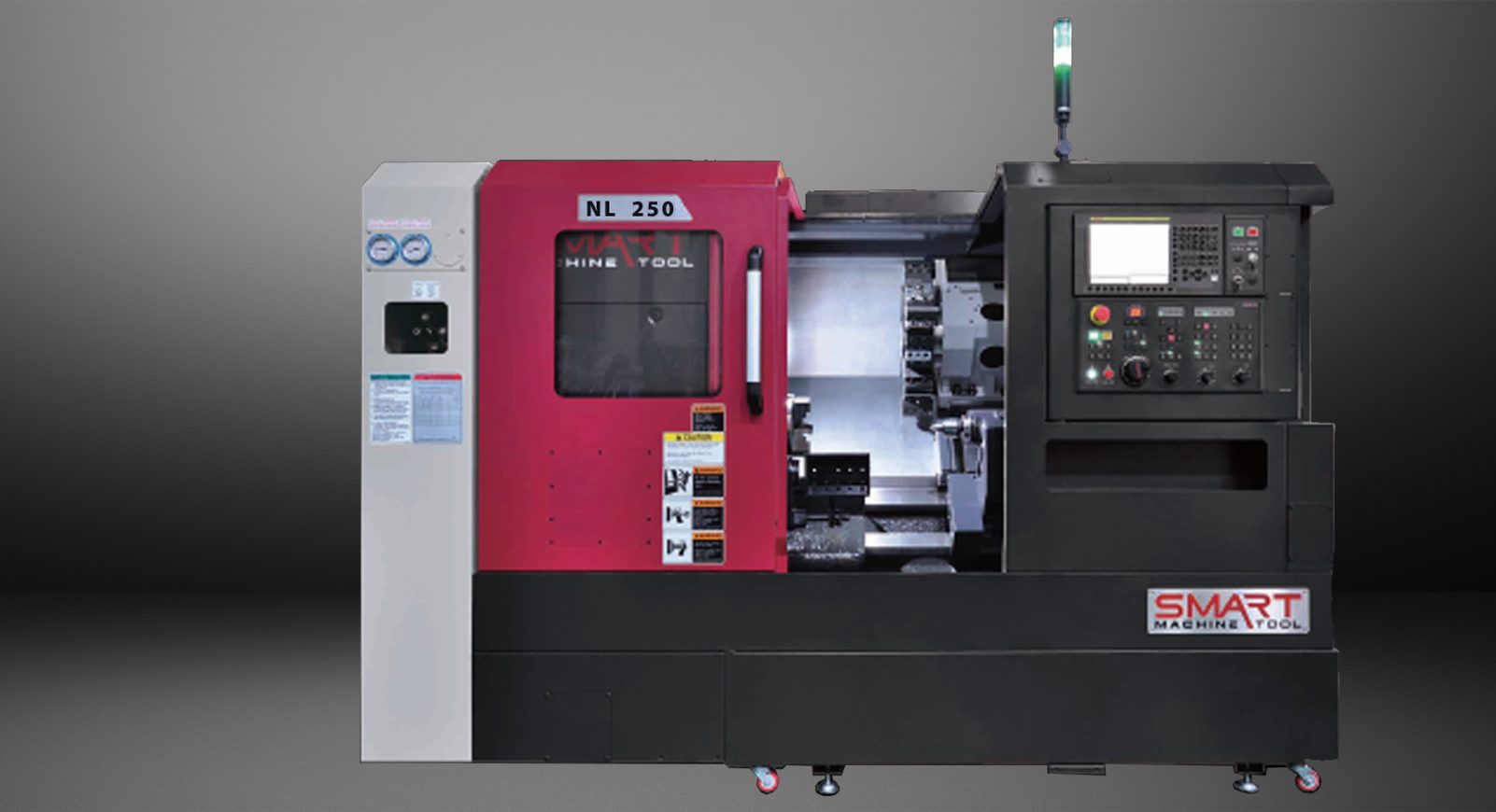

SMART NL 2500/750 – BOX WAY – (10″ CHUCK)

$105900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

27.56
Max Turning Diameter

18.90
Max Turning Length

29.53
Chuck

10
Spindle Nose

A2-8
Spindle Motor

47 hp
Spindle Speed

4,000 rpm
Bar Capacity

3.19

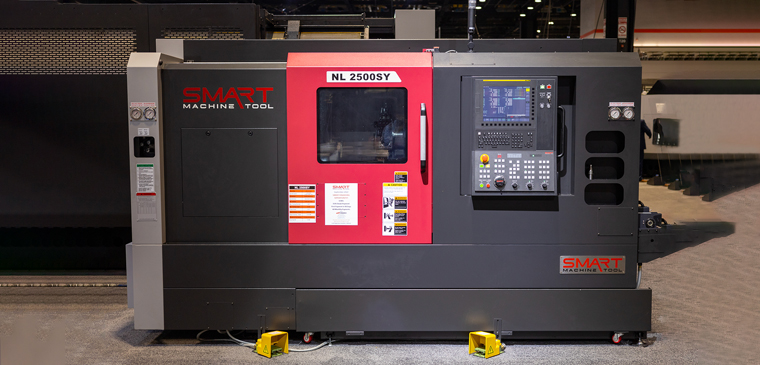

SMART NL 2500SY – BOX WAY – (10″ CHUCK)

$189,900 $169,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

31.89
Max Turning Diameter

15.51
Max Turning Length

28.07
Chuck /Sub Spindle

10 / 8
Spindle Nose / Sub Spindle

A2-8 / A2-6
Spindle Motor / Sub Spindle

25/35 hp / 20 hp
Spindle Speed / Sub Spindle

4,000 rpm / 5,000 rpm
Bar Capacity / Sub Spindle

3.19 / 2.0

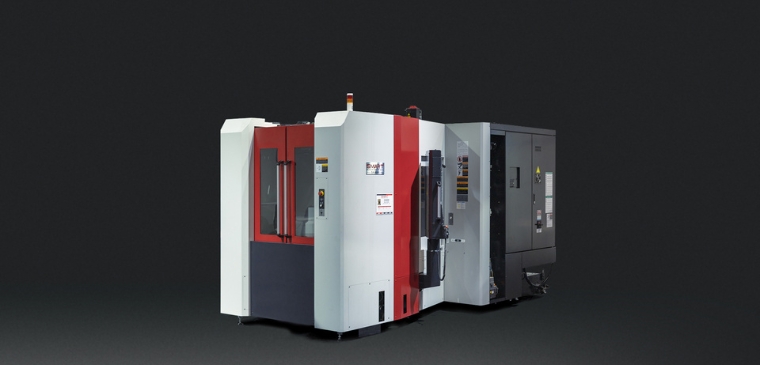

SMART SX 4000

$229,900 $179,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

22.05
Y Travel

22.05
Z Travel

27.17
Table Size

15.75
Spindle Taper

#40
Spindle Speed

100 - 15,000 RPM
Spindle HP

50
Spindle Torque (ft/lbs)

184
Rapid Traverse Rate

2,480
Number of Tools

60

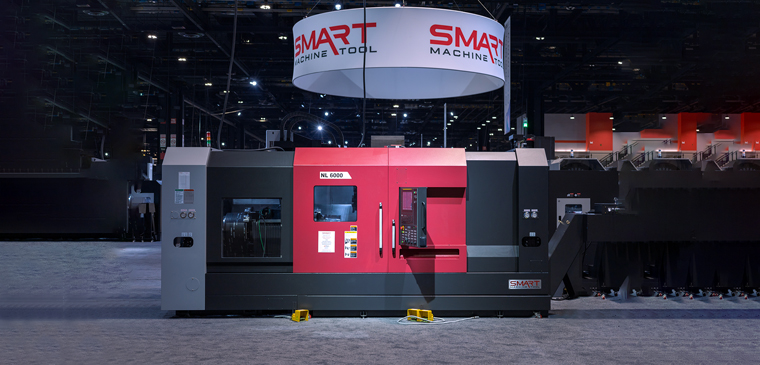

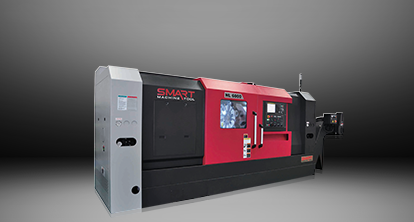

SMART NL 6000M/1500 – BOX WAY – (24″ CHUCK)

$289,800
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

59.06
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50 / 73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

SMART NL 6000XLM – BOX WAY – (24″ CHUCK)

$379,800 $299,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

125.98
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

SMART NL 6000XXLM – BOX WAY – (24″ CHUCK)

$539,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

157
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

SMART NL 6000CXLM – BOX WAY – (24″ CHUCK)

$399,800
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

35.4
Max Turning Length

125.9
Chuck

Chuck Not Included
Spindle Nose

A1-20
Spindle Motor

50/73 hp
Spindle Speed

1,000 rpm
Bar Capacity

6.56

SMART NL 6000LM – BOX WAY – (24″ CHUCK)

$319,800 $249,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

86.61
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

SMART NL 6000CLM – BOX WAY – (24″ CHUCK)

$439,800 $319,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

35.4
Max Turning Length

86.6
Chuck

Chuck Not Included
Spindle Nose

A1-20
Spindle Motor

50/73 hp
Spindle Speed

1,000 rpm
Bar Capacity

6.52

SMART NL 6000CM – BOX WAY – (24″ CHUCK)

$349,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

37.80
Max Turning Length

61.02
Chuck

Chuck Not Included
Spindle Nose

A1-20
Spindle Motor

50/73 hp
Spindle Speed

1,000 rpm
Bar Capacity

10.8

SMART NL 6000SM/750 – BOX WAY – (24″ CHUCK)

$259,800
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

27.56
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.52

SMART NX 7000

$459,900 $379,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

39
Y Travel

37
Z Travel

41.3
Table Size

24
Spindle Taper

50
Spindle Speed

12,000 rpm
Spindle Torque (ft/lbs)

310
Rapid Traverse Rate

2,362
Number of Tools

64/88

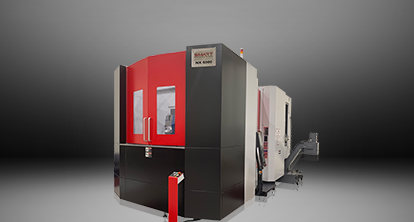

SMART NX 5000

$359,900 $299,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

31
Y Travel

29
Z Travel

32.7
Table Size

20
Spindle Taper

50
Spindle Speed

12,000 rpm
Spindle Torque (ft/lbs)

310
Rapid Traverse Rate

1,968
Number of Tools

60

SMART NL 6000XL – BOX WAY – (24″ CHUCK)

$369,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

125
Chuck

24
Spindle Nose

A2-15
Spindle Motor

73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.55

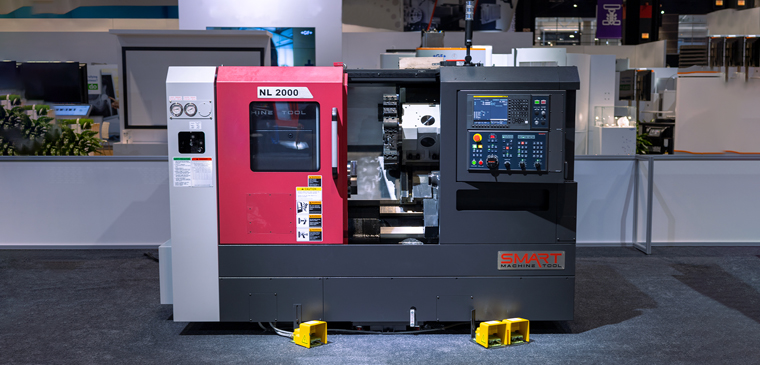

SMART NL 2000 – BOX WAY – (8″ CHUCK)

$85,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

22.44
Max Turning Diameter

15.39
Max Turning Length

22.05
Chuck

8
Spindle Nose

A2-6
Spindle Motor

20/25 hp
Spindle Speed

4,500 rpm
Bar Capacity

2.64

SMART NL 1500M – BOX WAY – (6″ CHUCK)

$95,800
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

22.44
Max Turning Diameter

15.0
Max Turning Length

21.26
Chuck

6
Spindle Nose

A2-5
Spindle Motor

15/25 hp
Spindle Speed

6,000 rpm
Bar Capacity

2.01

SMART NL 1500 – BOX WAY – (6″ CHUCK)

$85,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

22.44
Max Turning Diameter

15.39
Max Turning Length

22.05
Chuck

6
Spindle Nose

A2-5
Spindle Motor

15/25 hp
Spindle Speed

6,000 rpm
Bar Capacity

2.01

SMART NL 150 – BOX WAY – (6″ CHUCK)

$72,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

22.44
Max Turning Diameter

15.39
Max Turning Length

22.05
Chuck

6
Spindle Nose

A2-5
Spindle Motor

15/25 hp
Spindle Speed

6,000 rpm
Bar Capacity

2.01

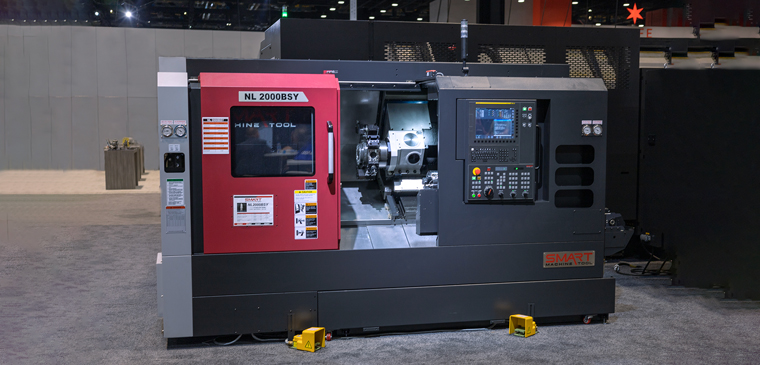

SMART NL 2000BSY – BOX WAY – (8″ CHUCK)

$159,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

31.89
Max Turning Diameter

16.18
Max Turning Length

28.94
Chuck

8
Spindle Nose

A2-6
Spindle Motor

20/25 hp
Spindle Speed

4,500 rpm
Bar Capacity

2.64

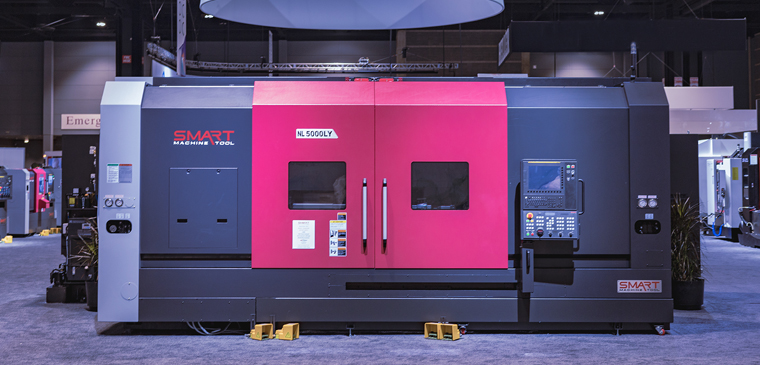

SMART NL 5000LY – BOX WAY – (21″ CHUCK)

$299,900 $259,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

35.4
Max Turning Diameter

21.6
Max Turning Length

78.4
Chuck

21
Spindle Nose

A2-15
Spindle Motor

60 hp
Spindle Speed

1,500 rpm
Bar Capacity

6.56

SMART NL 4000LY – BOX WAY – (18″ CHUCK)

$289,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

35.4
Max Turning Diameter

21.6
Max Turning Length

79.4
Chuck

18
Spindle Nose

A2-11
Spindle Motor

60 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.63

SMART NL 3500BY – BOX WAY – (15″ CHUCK)

$229,900 $209,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

33.5
Max Turning Diameter

16.9
Max Turning Length

57
Chuck

15
Spindle Nose

A2-11
Spindle Motor

40 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.6

SMART NL 2000ASY – BOX WAY – (6″ CHUCK)

$155,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

31.89
Max Turning Diameter

16.18
Max Turning Length

29.53
Chuck

6
Spindle Nose

A2-5
Spindle Motor

15 / 25 hp
Spindle Speed

6,000 rpm
Bar Capacity

2.00

SMART NL 2000M – BOX WAY – (8″ CHUCK)

$95,800 $89,800
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

22.44
Max Turning Diameter

15.0
Max Turning Length

21.26
Chuck

8
Spindle Nose

A2-6
Spindle Motor

20/25 hp
Spindle Speed

4,500 rpm
Bar Capacity

2.56

SMART NL 2000BM – BOX WAY – (10″ CHUCK)

$99,800
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

22.44
Max Turning Diameter

15.0
Max Turning Length

21.26
Chuck

10
Spindle Nose

A2-8
Spindle Motor

20/25 hp
Spindle Speed

3,500 rpm
Bar Capacity

3.19

SMART SM30-2500

$179,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X AXIS TRAVEL (INCHES)

98.42
Y AXIS TRAVEL (INCHES)

15.75
Z AXIS TRAVEL (INCHES)

15.75
TABLE SIZE (INCHES)

98.42 x 15.75
SPINDLE TAPER

BBT30
SPINDLE SPEED

12,000 RPM
SPINDLE HP

5.5 HP
MAGAZINE CAPACITY

16

SMART SV 2 – LINEAR WAY – (CAT40, 12K)

$79,900 $74,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

31.4
Y Travel

19.6
Z Travel

19.6
Table Size

19.6 x 39.2
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

20/25 hp
Magazine Capacity

30

SMART SV 1 – LINEAR WAY – (CAT40, 8K)

$64,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

23.6
Y Travel

17.7
Z Travel

19.7
Table Size

29.5 x 17.7
Spindle Taper

CAT40
Spindle Speed

8,000 rpm
Spindle HP

15/20 hp
Magazine Capacity

24

SMART SV 4 – LINEAR WAY – (CAT40, 12K)

$99,900 $94,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

51.18
Y Travel

25.59
Z Travel

23.62
Table Size

57.09 x 23.62
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

20/25 hp
Magazine Capacity

30

SMART SV 3 – LINEAR WAY – (CAT40, 12K)

$89,900 $84,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

41.34
Y Travel

20.47
Z Travel

20.47
Table Size

45.28 x 19.69
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

20/25 hp
Magazine Capacity

30

SMART SV 5 – LINEAR WAY – (CAT40, 12K)

$114,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X Travel

51.18
Y Travel

27.56
Z Travel

27.56
Table Size

57.09 x 25.59
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

20/25 hp
Magazine Capacity

30

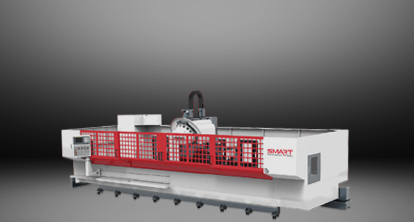

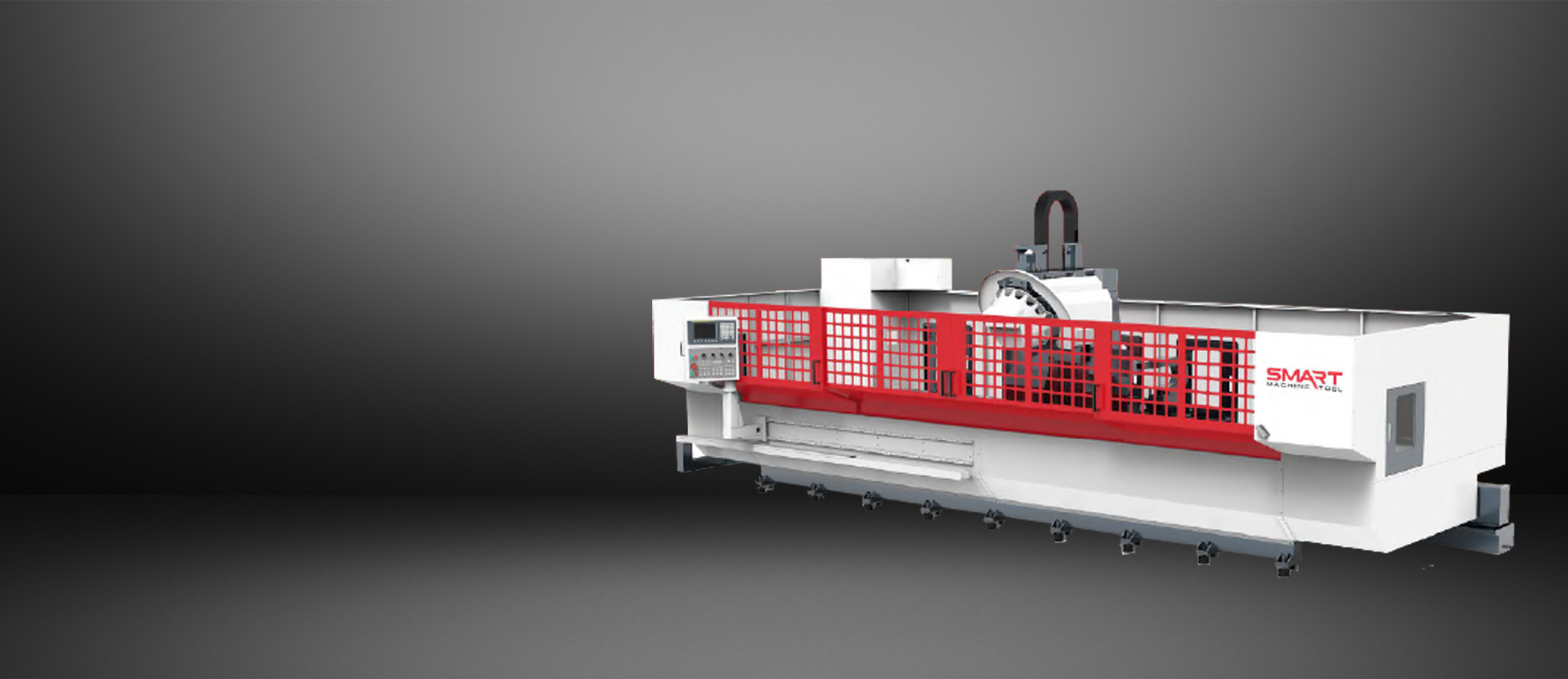

SMART SM30-4500

$249,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X AXIS TRAVEL (INCHES)

177.17
Y AXIS TRAVEL (INCHES)

15.75
Z AXIS TRAVEL (INCHES)

15.75
TABLE SIZE (INCHES)

177.17 x 15.75
SPINDLE TAPER

BBT30
SPINDLE SPEED

12,000 RPM
SPINDLE HP

5.5 HP
MAGAZINE CAPACITY

16

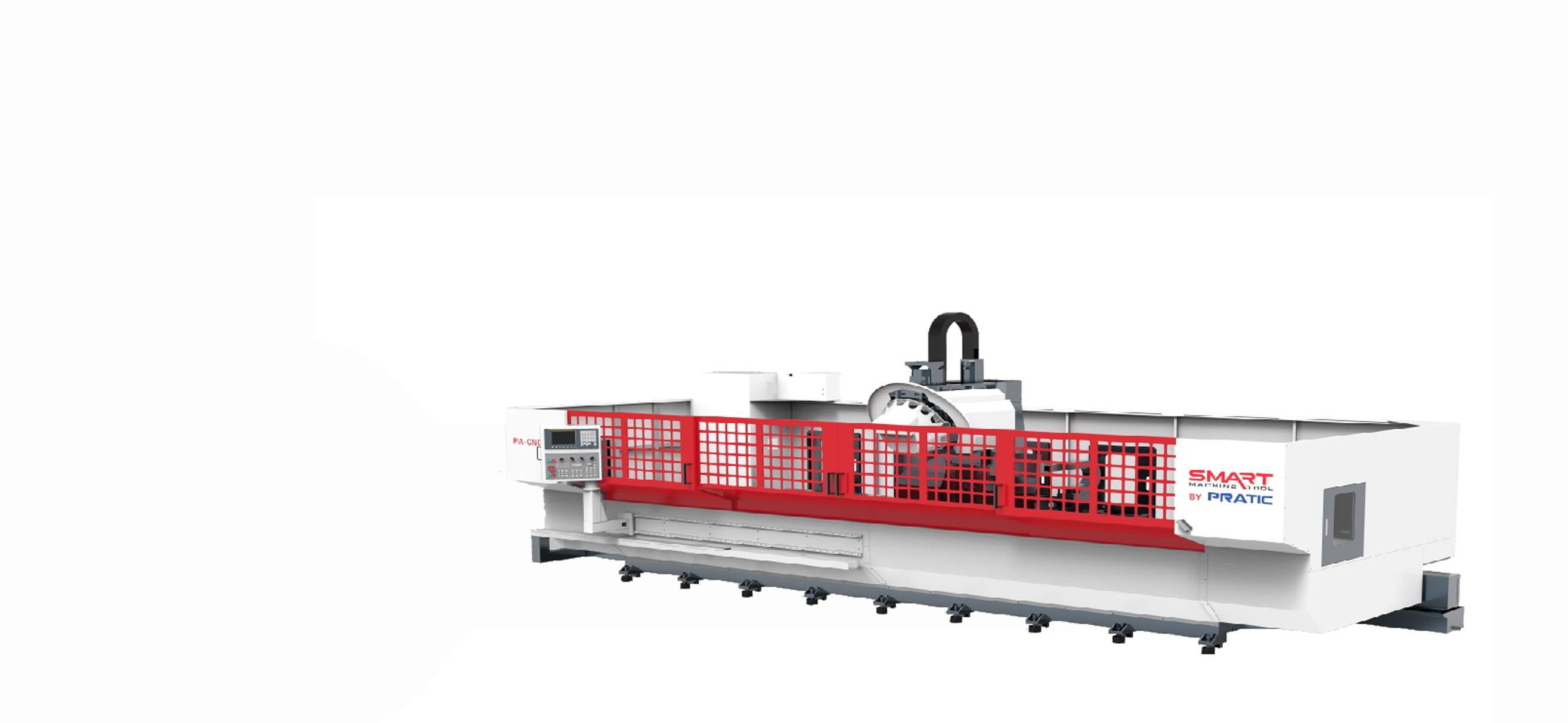

SMART SM30-6500

$279,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X AXIS TRAVEL (INCHES)

255.91
Y AXIS TRAVEL (INCHES)

15.75
Z AXIS TRAVEL (INCHES)

15.75
TABLE SIZE

255.91 x 15.75
SPINDLE TAPER

BBT30
SPINDLE SPEED

12,000 RPM
SPINDLE HP

5.5 HP
MAGAZINE CAPACITY

16

SMART NL 2500M/750 – BOX WAY – (10″ CHUCK)

$115,800
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

27.56
Max Turning Diameter

17.72
Max Turning Length

27.56
Chuck

10
Spindle Nose

A2-8
Spindle Motor

47 hp
Spindle Speed

4,000 rpm
Bar Capacity

3.19

SMART NL 3000BLM – BOX WAY – (12″ CHUCK)

$149,800 $139,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

27.56
Max Turning Diameter

17.72
Max Turning Length

41.34
Chuck

12
Spindle Nose

A2-11
Spindle Motor

29.5/47 hp
Spindle Speed

2,800 rpm
Bar Capacity

4.02

SMART NL 3000BM – BOX WAY – (12″ CHUCK)

$141,800
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

27.56
Max Turning Diameter

17.72
Max Turning Length

29.53
Chuck

12
Spindle Nose

A2-11
Spindle Motor

29.5/47 hp
Spindle Speed

2,800 rpm
Bar Capacity

4.02

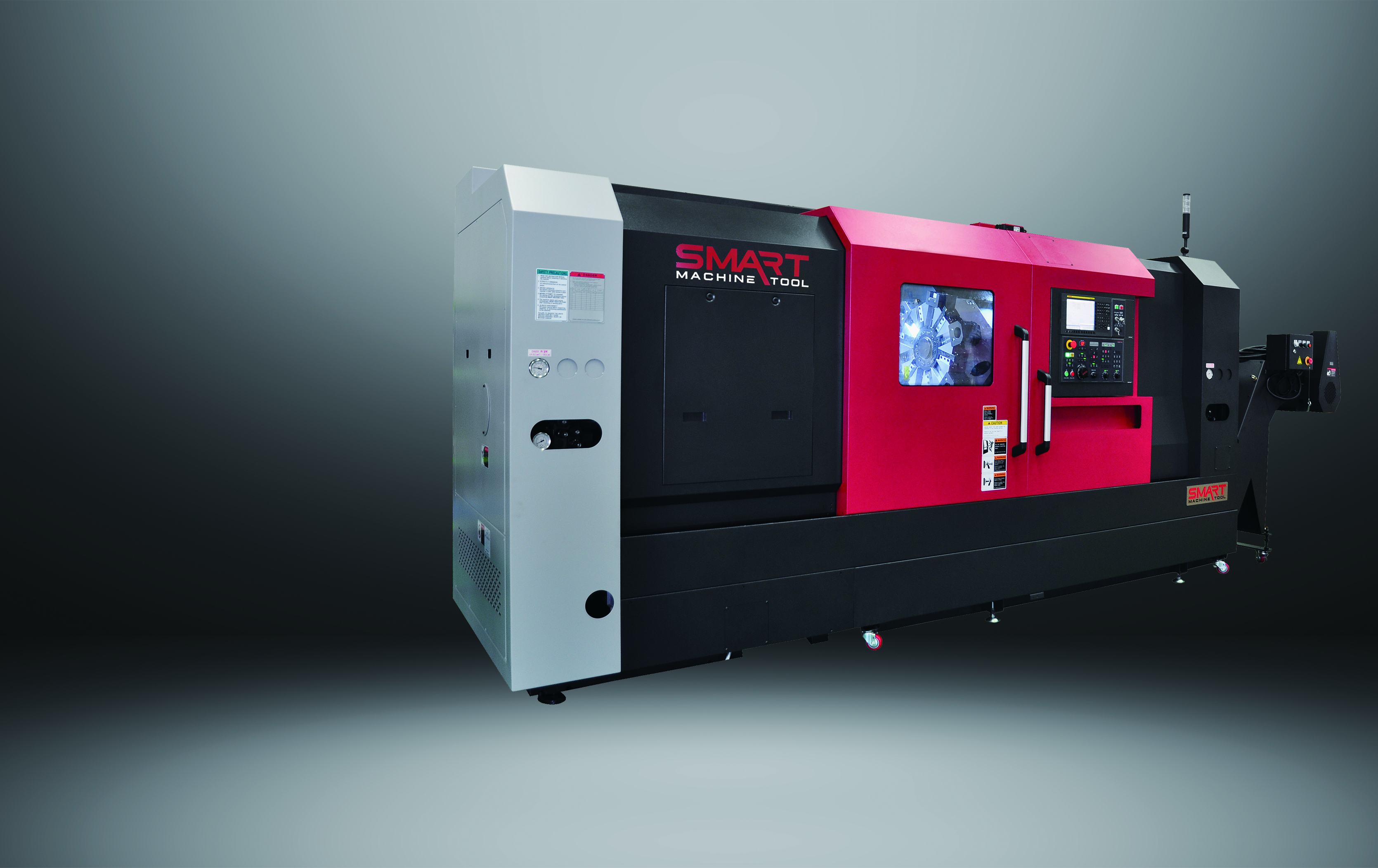

SMART NL 3000BL – BOX WAY – (12″ CHUCK)

$139,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

27.56
Max Turning Diameter

18.90
Max Turning Length

43.31
Chuck

12
Spindle Nose

A2-11
Spindle Motor

29.5/47 hp
Spindle Speed

2,800 rpm
Bar Capacity

4.02

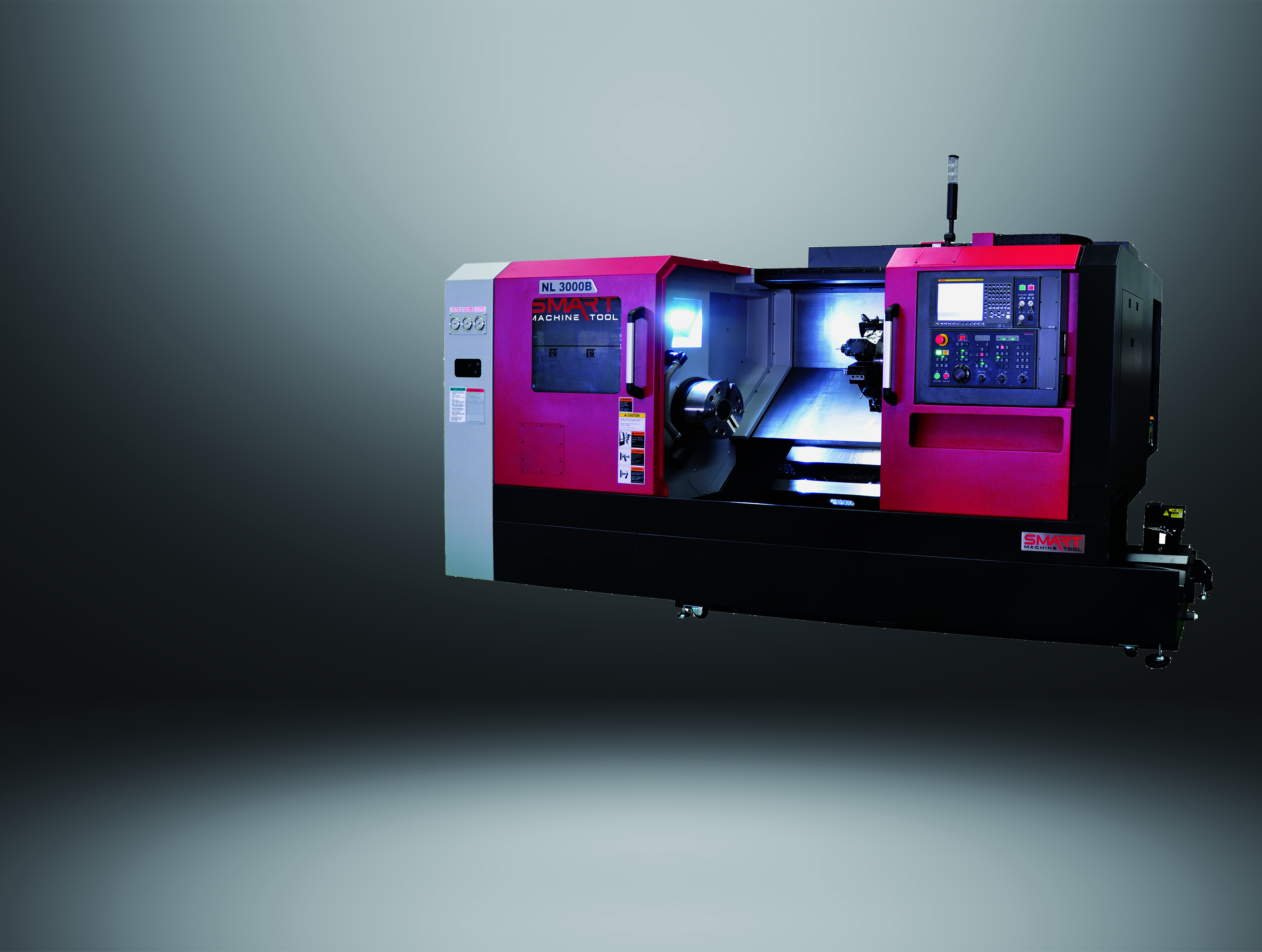

SMART NL 3000B – BOX WAY – (12″ CHUCK)

$131,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

27.56
Max Turning Diameter

18.90
Max Turning Length

29.53
Chuck

12
Spindle Nose

A2-11
Spindle Motor

29.5/47 hp
Spindle Speed

2,800 rpm
Bar Capacity

4.02

SMART NL 4000 – BOX WAY – (18″ CHUCK)

$189,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

31.10
Max Turning Diameter

22.83
Max Turning Length

47.76
Chuck

18
Spindle Nose

A2-11
Spindle Motor

40/60 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.63

SMART NL 4000L – BOX WAY

$215,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

31.10
Max Turning Diameter

22.83
Max Turning Length

87.13
Chuck

18
Spindle Nose

A2-11
Spindle Motor

40/60 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.59

SMART NL 5000M – BOX WAY – (21″ CHUCK)

$229,800
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

35.43
Max Turning Diameter

22.05
Max Turning Length

44.06
Chuck

21
Spindle Nose

A2-15
Spindle Motor

40/60 hp
Spindle Speed

1,500 rpm
Bar Capacity

6.56

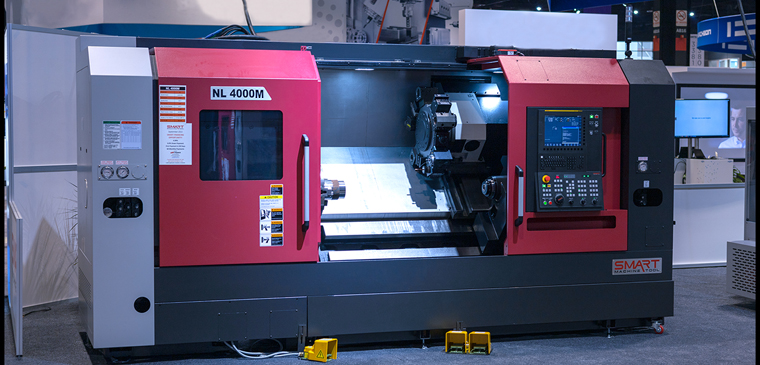

SMART NL 4000M – BOX WAY – (18″ CHUCK)

$199,800 $179,800
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

31.10
Max Turning Diameter

22.05
Max Turning Length

45.08
Chuck

18
Spindle Nose

A2-11
Spindle Motor

40 / 60 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.59

SMART NL 4000LM – BOX WAY (18″ CHUCK)

$225,800
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

31.10
Max Turning Diameter

22.05
Max Turning Length

84.5
Chuck

18
Spindle Nose

A2-11
Spindle Motor

40 / 60 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.59

SMART NL 5000LM – BOX WAY – (21″ CHUCK)

$259,800 $199,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

35.43
Max Turning Diameter

22.05
Max Turning Length

83.43
Chuck

21
Spindle Nose

A2-15
Spindle Motor

40/60 hp
Spindle Speed

1,500 rpm
Bar Capacity

6.56

SMART NL 5000 – BOX WAY – (21″ CHUCK)

$219,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

35.43
Max Turning Diameter

26.38
Max Turning Length

45.47
Chuck

21
Spindle Nose

A2-15
Spindle Motor

40/60 hp
Spindle Speed

1,500 rpm
Bar Capacity

6.56

SMART NL 5000L – BOX WAY – (21″ CHUCK)

$249,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

35.43
Max Turning Diameter

22.83
Max Turning Length

84.84
Chuck

21
Spindle Nose

A2-15
Spindle Motor

40/60 hp
Spindle Speed

1,500 rpm
Bar Capacity

6.56

SMART NL 6000L – BOX WAY – (24″ CHUCK)

$309,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

37.80
Max Turning Length

88.58
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

SMART NL 6000S/750 – BOX WAY (24″ CHUCK)

$249,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

37.80
Max Turning Length

29.53
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

SMART NL 6000/1500 – BOX WAY (24″ CHUCK)

$279,900
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

37.80
Max Turning Length

61.02
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

VTC-20/25

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

TABLE SIZE

78.7''
MAX SWING/MAX TURNING DIAMETER

98.4''
MAX TURNING HEIGHT

70.9''
MAX LOAD

26460 LBS
TABLE SPEED

200 RPM
TABLE HP

60/75 HP
MACHINE WEIGHT

105600 LBS

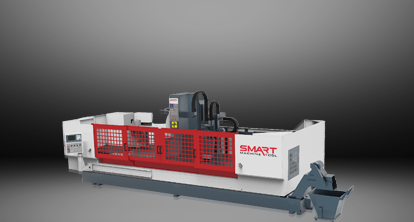

SMART SM40-4500

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X AXIS TRAVEL (INCHES)

177
Y AXIS TRAVEL (INCHES)

23
Z AXIS TRAVEL (INCHES)

18
TABLE SIZE (INCHES)

177 x 23
SPINDLE TAPER

CAT40 (BIG PLUS)
SPINDLE SPEED

12,000 RPM
SPINDLE HP

15 HP
MAGAZINE CAPACITY

30

VTC-100/160

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

TABLE SIZE

393.7''
MAX SWING/MAX TURNING DIAMETER

629.9''
MAX TURNING HEIGHT

236.2''
MAX LOAD

992080 LBS
TABLE SPEED

15 RPM
TABLE HP

355 HP
MACHINE WEIGHT

1543000 LBS

VTC-25/40

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

TABLE SIZE

98.4''
MAX SWING/MAX TURNING DIAMETER

157.5''
MAX TURING HEIGHT

78.7'' (98'')
MAX LOAD

44000 LBS
TABLE SPEED

130 RPM
TABLE HP

60/75 HP
MACHINE WEIGHT

151800 LBS

SMART SM40-6500

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X AXIS TRAVEL (INCHES)

256
Y AXIS TRAVEL (INCHES)

23
Z AXIS TRAVEL (INCHES)

18
TABLE SIZE (INCHES)

256 x 23
SPINDLE TAPER

CAT40 (BIG PLUS)
SPINDLE SPEED

12,000 RPM
SPINDLE HP

15 HP
MAGAZINE CAPACITY

30

SMART SM40-8500

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

X AXIS TRAVEL (INCHES)

335
Y AXIS TRAVEL (INCHES)

23
Z AXIS TRAVEL (INCHES)

18
TABLE SIZE (INCHES)

335 x 23
SPINDLE TAPER

CAT40 (BIG PLUS)
SPINDLE SPEED

12,000 RPM
SPINDLE HP

15 HP
MAGAZINE CAPACITY

30

Coming Soon

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

Coming Soon

0

SM30 & SM40 Brochure

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

NX Series Brochure

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

NL Series Brochure

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

NL Flyer

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

General Line-Up Brochure

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

SMART Korea General Lineup Brochure

$0
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

VTC-80/100

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

TABLE SIZE

314.9''
MAX SWING/MAX TURNING DIAMETER

393.7''
MAX TURNING HEIGHT

236.2''
MAX LOAD

771618 LBS
TABLE SPEED

20 RPM
TABLE HP

355 HP
MACHINE WEIGHT

146400 LBS

VTC-60/70

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

TABLE SIZE

236.2''
MAX SWING/MAX TURNING DIAMETER

275.6''
MAX TURNING HEIGHT

137.8''
MAX LOAD

330690 LBS
TABLE SPEED

40 RPM
TABLE HP

255 HP
MACHINE WEIGHT

643700 LBS

VTC-40/50

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

TABLE SIZE

157.5''
MAX SWING/MAX TURNING DIAMETER

196.9''
MAX TURNING HEIGHT

98.4''
MAX LOAD

110230 LBS
TABLE SPEED

50 RPM
TABLE HP

134 HP
MACHINE WEIGHT

321200 LBS

VTC-28/30

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

TABLE SIZE

98'' (110'')
MAX SWING/MAX TURNING DIAMETER

118''
MAX TURNING HEIGHT

78''
MAX LOAD

44000 LBS
TABLE SPEED

130 RPM
TABLE HP

50/75 HP
MACHINE WEIGHT

132000 LBS

VTC-12/16R

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

TABLE SIZE

47.2''
MAX SWING/MAX TURNING DIAMETER

63''
MAX TURNING HEIGHT

47.2''
MAX LOAD

14400 LBS
TABLE SPEED

330 RPM
TABLE HP

40/50 HP
MACHINE WEIGHT

44092 LBS

HB-150LHX

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

SPINDLE DIAMETER

5.9''
X-TRAVELS

196.8'' (236.2'')
Y-TRAVELS

137.8''
Z-TRAVELS

78.7''
W-TRAVELS

39.4''
ROTARY TABLE SIZE

98.4'' X 118.1''
MAX TABLE LOAD

77000 LBS
MACHINE WEIGHT

187392 LBS

VTC-50/60

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

TABLE SIZE

196.9''
MAX SWING/MAX TURNING DIAMETER

236.2''
MAX TURNING HEIGHT

118.1''
MAX LOAD

132280 LBS
TABLE SPEED

50 RPM
TABLE HP

208 HP
MACHINE WEIGHT

462000 LBS

HB-150X

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

SPINDLE DIAMETER

5.9''
X-TRAVELS

157''
Y-TRAVELS

98''
Z-TRAVELS

78''
W-TRAVELS

27.6''
ROTARY TABLE SIZE

78.7'' X 86.6''
MAX TABLE LOAD

44000 LBS
MACHINE WEIGHT

104256 LBS

VTC-30/40

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

TABLE SIZE

118.1''
MAX SWING/MAX TURNING DIAMETER

157.5''
MAX TURNING HEIGHT

86'' (98'')
MAX LOAD

66000 LBS
TABLE SPEED

100 RPM
TABLE HP

80/100 HP
MACHINE WEIGHT

187000 LBS

HB-130X

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

SPINDLE DIAMETER

5.1''
X-TRAVELS

157''
Y-TRAVELS

98''
Z-TRAVELS

63''
W-TRAVELS

27.55''
ROTARY TABLE SIZE

78.7'' X 86.6''
MAX TABLE LOAD

44000 LBS
MACHINE WEIGHT

94975 LBS

NT-10/12 F

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

TABLE SIZE

39.4''
MAX SWING/MAX TURNING DIAMETER

49.2''
MAX TURNING HEIGHT

31.5''
MAX LOAD

9920 LBS
TABLE SPEED

450 RPM
TABLE HP

40/50 HP
MACHINE WEIGHT

37478 LBS

HB-130S

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

SPINDLE DIAMETER

5.1''
X-TRAVELS

59.1'' (78.7'')
Y-TRAVELS

59''
Z-TRAVELS

51.2''
W-TRAVELS

27.56''
ROTARY TABLE SIZE

55'' x 63''
MAX TABLE LOAD

15400 LBS
MACHINE WEIGHT

55113 LBS (57143 LBS)

HB-150

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

SPINDLE DIAMETER

5.9''
X-TRAVELS

118.1''
Y-TRAVELS

90.6''
Z-TRAVELS

63.0''
W-TRAVELS

27.6''
ROTARY TABLE SIZE

78.7'' X 86.6''
MAX TABLE LOAD

44000 LBS
MACHINE WEIGHT

95349 LBS

HB-110M

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

SPINDLE DIAMETER

4.3''
X-TRAVELS

62.9''
Y-TRAVELS

59''
Z-TRAVELS

39.3''
W-TRAVELS

13.7''
ROTARY TABLE SIZE

39.3'' X 43.3''
MAX TABLE LOAD

6613 LBS
MACHINE WEIGHT

44092 LBS

HB-130CX

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

SPINDLE DIAMETER

5.1''
X-TRAVELS

157.5''
Y-TRAVELS

90.6''
Z-TRAVELS

51.1''
W-TRAVELS

27.56''
ROTATRY TABLE SIZE

63.0'' X 157.5''
MAX TABLE LOAD

44000 LBS
MACHINE WEIGHT

111686 LBS

HB-130C

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

SPINDLE DIAMETER

5.1''
X-TRAVELS

118.1''
Y-TRAVELS

78.7''
Z-TRAVELS

51.2''
W-TRAVELS

27.5''
ROTARY TABLE SIZE

55.1'' X 55.1''
MAX TABLE LOAD

15400 LBS
MACHINE WEIGHT

90389 LBS

VTC-16/20R

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

TABLE SIZE

63''
MAX SWING/MAX TURNING DIAMETER

78.7''
MAX TURNING HEIGHT

63''
MAX LOAD

17600 LBS
TABLE SPEED

250 RPM
TABLE HP

50/60 HP
MACHINE WEIGHT

56000 LBS

HB-150LH

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

SPINDLE DIAMETER

5.9''
X-TRAVELS

157''
Y-TRAVELS

98''
Z-TRAVELS

63''
W-TRAVELS

39''
ROTARY TABLE SIZE

78.7'' X 86.6''
MAX TABLE LOAD

44000 LBS
MACHINE WEIGHT

104256 LBS

HB-130

$N/A
* Call Sales for Term & Conditions.

Your Dealer:

Specifications

SPINDLE DIAMETER

5.1''
X-TRAVELS

118.1''
Y-TRAVELS

90''
Z-TRAVELS

51.2''
W-TRAVELS

27.56''
ROTARY TABLE SIZE

63'' X 70.9''
TABLE LOAD

26400 LBS
MACHINE WEIGHT

86906 LBS

SMART MINI – LINEAR WAY – (CAT40, 12K)

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$39,900* Call Sales for Term & Conditions.

WSX-TEST

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

SM 1050, 1370, 1570 Linear Guideway Series Brochure

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

High Speed Tapping and Machining Centers Brochure

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

SM 1100, 1370, 1682, 2082, 2110 Box Way Series Brochure

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

SV Series Brochure

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

SW 216 – BRIDGE TYPE – (CAT50, 6K)

Selected Options

Machine Options
Z Axis Travel 42”$24900
Manual Angular Head (HF-M90L) 2000RPM$13859
HF-SU360L Semi-Automatic Universal Head 5 Degree 2500RPM$42800
HF-ME35L Manual Extension Head 350mmL 4000RPM$14800
HF-S90L Semi-Automatic 90 Degree Head 5 Degree Indexing 2000RPM$36800
Arm Seat for Head$8900
Renishaw Tools Probe TS-27R$6900
Renishaw Workpiece Probe RMP-60$18900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$419,900* Call Sales for Term & Conditions.

SMART SM 1682-50 – BOX WAY – (CAT50, 6K)

Selected Options

Machine Options
Lift Up Chip Conveyor$6950
Air Thru Spindle$1450
Coolant/Air Gun$950
BT50 Gripper$2500
DDS 12,000 RPM 25 HP$16900
Renishaw CAT40/50 OMP60 Spindle Probe - CAT40/50 Shank OMP60 + OMP60 Probe Kit (MOD TX/OPT-OFF)$4500
Renishaw OTS AA Optical Tool Setter$2400
Manual Guide i Training $2000
3 Color Tower Light$450
60 ATC$5900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$239,900* Call Sales for Term & Conditions.

SMART SM 1370-50 – BOX WAY – (CAT50, 6K)

Selected Options

Machine Options
Lift Up Chip Conveyor$6950
Air Thru Spindle$1450
Coolant/Air Gun$950
BT50 Gripper$2500
DDS 12,000 RPM 25/20 HP (Factory Order)$16900
Renishaw CAT40/50 OMP60 Spindle Probe - CAT40/50 Shank OMP60 + OMP60 Probe Kit (MOD TX/OPT-OFF)$4500
Renishaw OTS AA Optical Tool Setter$2400
Manual Guide i Training $2000
3 Color Tower Light$450
32 Tool ATC$1900
40 Tool ATC$8000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$189,900* Call Sales for Term & Conditions.

SMART NV 5500L – LINEAR WAY – (CAT40, 12K)

Selected Options

Machine Options
Lift Up Chip Conveyor$8900
Air Thru Spindle$1450
Coolant/Air Gun$950
BT40 Gripper$2000
Renishaw CAT40/50 OMP60 Spindle Probe - CAT40/50 Shank OMP60 + OMP60 Probe Kit (MOD TX/OPT-OFF)$4500
Renishaw OTS AA Optical Tool Setter$2400
Manual Guide i Training $2000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$119,900* Call Sales for Term & Conditions.

SMART KT 360D – LINEAR WAY – (BT30, 15K)

Selected Options

Machine Options
Lift Up Chip Conveyor$6950
290 PSI Thru Spindle$5900
Coolant/Air Gun$950
Fanuc OiMF-P$4000
21 Tools$2000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$79,900* Call Sales for Term & Conditions.

SMART KM 430 – CROSS ROLLER WAY – (BT40, 12K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6900
Fanuc OiMF-P$4000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$99,900* Call Sales for Term & Conditions.

SMART KM 500 – CROSS ROLLER WAY – (BT30, 12K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6900
Fanuc OiMF-P$4000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$119,900* Call Sales for Term & Conditions.

SMART KT 420 – CROSS ROLLER WAY – (BT30, 15K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6900
Fanuc OiMF-P$4000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$74,900* Call Sales for Term & Conditions.

SMART KT 420A – CROSS ROLLER WAY – (BT30, 15K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6900
Fanuc OiMF-P$4000
24,000 RPM, 25/5 HP$6000
26 Tools$1500

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$75,900* Call Sales for Term & Conditions.

SMART KT 420L – CROSS ROLLER WAY – (BT30, 15K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6900
Fanuc OiMF-P$4000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$78,900* Call Sales for Term & Conditions.

SMART KT 420AL – CROSS ROLLER WAY – (BT30, 15K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6900
Fanuc OiMF-P$4000
24,000 RPM, 25/5 HP$6000
26 Tools$1500

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$69,900* Call Sales for Term & Conditions.

SMART KT 420DH – CROSS ROLLER WAY – (BT30, 15K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6900
Fanuc OiMF-P$4000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$159,900* Call Sales for Term & Conditions.

SMART KT 450DH – CROSS ROLLER WAY – (CAT40, 12K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6900
Fanuc OiMF-P$4000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$179,900* Call Sales for Term & Conditions.

SMART KT 500 – CROSS ROLLER WAY – (BT30, 15K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6900
Fanuc OiMF-P$4000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$99,900* Call Sales for Term & Conditions.

SMART KT 700 – CROSS ROLLER WAY – (BT30, 15K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6900
Fanuc OiMF-P$4000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$109,900* Call Sales for Term & Conditions.

SMART KM 450D – LINEAR WAY – (CAT40, 12K)

Selected Options

Machine Options
Lift Up Chip Conveyor$6950
290 PSI Thru Spindle$5900
Coolant/Air Gun$950
Fanuc OIMF-P$4000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$119,900* Call Sales for Term & Conditions.

SMART SM 1100-50 – BOX WAY – (CAT50, 6K)

Selected Options

Machine Options
Lift Up Chip Conveyor$6950
Air Thru Spindle$1450
Coolant/Air Gun$950
BT50 Gripper$2500
DDS 12,000 RPM 25 HP$16900
Renishaw CAT40/50 OMP60 Spindle Probe - CAT40/50 Shank OMP60 + OMP60 Probe Kit (MOD TX/OPT-OFF)$4500
Renishaw OTS AA Optical Tool Setter$2400
Manual Guide i Training $2000
3 Color Tower Light$450

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$169,900* Call Sales for Term & Conditions.

SMART SM 1682-50 – BOX WAY – (CAT50, 12K)

Selected Options

Machine Options
Lift Up Chip Conveyor$6950
Air Thru Spindle$1450
Coolant/Air Gun$950
BT50 Gripper$2500
Renishaw CAT40/50 OMP60 Spindle Probe - CAT40/50 Shank OMP60 + OMP60 Probe Kit (MOD TX/OPT-OFF)$4500
Renishaw OTS AA Optical Tool Setter$2400
Manual Guide i Training $2000
3 Color Tower Light$450
60 ATC$5900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$281,800* Call Sales for Term & Conditions.

SMART SM 2082-50 – BOX WAY – (CAT50, 6K)

Selected Options

Machine Options
Lift Up Chip Conveyor$6950
Air Thru Spindle$1450
Coolant/Air Gun$950
BT50 Gripper$2500
DDS 12,000 RPM 25 HP$16900
Renishaw CAT40/50 OMP60 Spindle Probe - CAT40/50 Shank OMP60 + OMP60 Probe Kit (MOD TX/OPT-OFF)$4500
Renishaw OTS AA Optical Tool Setter$2400
Manual Guide i Training $2000
3 Color Tower Light$450
60 ATC$5900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$259,900* Call Sales for Term & Conditions.

SMART SM 2110-50 – BOX WAY – (CAT50, 6K)

Selected Options

Machine Options
Lift Up Chip Conveyor$6950
Air Thru Spindle$1450
Coolant/Air Gun$950
BT50 Gripper$2500
DDS 12,000 RPM 25 HP$16900
Renishaw CAT40/50 OMP60 Spindle Probe - CAT40/50 Shank OMP60 + OMP60 Probe Kit (MOD TX/OPT-OFF)$4500
Renishaw OTS AA Optical Tool Setter$2400
Manual Guide i Training $2000
3 Color Tower Light$450
60 ATC$5900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$349,900* Call Sales for Term & Conditions.

HSA 2212 – BRIDGE TYPE – (CAT50, 6K/12K)

Selected Options

Machine Options
CTS 70 Bar (1000psi) with Water Cart (145.3 Gal)$24800
AICC 2 (_400 Blocks)$5970
Direct Drive Spindle 12000RPM_αiIT 22*26KW [34.87HP]$14062
Oil Skimmer$2600
Renishaw Tools Probe TS-27R$6900
Renishaw Workpiece Probe RMP 60$18900
Renishaw CAT40/50 OMP60 spindle probe CAT40/50 Shank OMP60 + OMP60 probe kit (MOD TX/OPT-OFF)$4500
Renishaw OTS AA optical tool setter$2400
Manual 90 Degree Head HF-M90L 2000RPM$12800
Manual Universal Head HF-MU360L 2500RPM$19800
Swivel Arm$8900
ATC 60 Tools (from 40 Tools Upgrade 60 Tools)$14700
Data Server 1GB$3950

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$399,900* Call Sales for Term & Conditions.

HSA 3212 – BRIDGE TYPE – (CAT50, 6K)

Selected Options

Machine Options
CTS 70 Bar (1000psi) with Water Cart (145.3 Gal)$24800
AICC 2 (_400 Blocks)$5970
Direct Drive Spindle 12000RPM_αiIT 22*26KW [34.87HP]$14062
Oil Skimmer$2600
Renishaw Tools Probe TS-27R$6900
Renishaw Workpiece Probe RMP 60$18900
Renishaw CAT40/50 OMP60 spindle probe CAT40/50 Shank OMP60 + OMP60 probe kit (MOD TX/OPT-OFF)$4500
Renishaw OTS AA optical tool setter$2400
Manual 90 Degree Head HF-M90L 2000RPM$12800
Manual Universal Head HF-MU360L 2500RPM$19800
Swivel Arm$8900
ATC 60 Tools (from 40 Tools Upgrade 60 Tools)$14700
Data Server 1GB$3950

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$439,900* Call Sales for Term & Conditions.

HSA 2212 – BRIDGE TYPE – (CAT40, 12K)

Selected Options

Machine Options
CTS 70 Bar (1000psi) with Water Cart (145.3 Gal)$24800
AICC 2 (_400 Blocks)$5970
Oil Skimmer$2600
Renishaw Tools Probe TS-27R$6900
Renishaw Workpiece Probe RMP 60$18900
Renishaw OTS AA optical tool setter$4500
Renishaw OTS AA optical tool setter$2400
Manual 90 Degree Head HF-M90L 2000RPM$12800
Manual Universal Head HF-MU360L 2500RPM$19800
Swivel Arm$8900
ATC 60 Tools (from 40 Tools Upgrade 60 Tools)$14700
Data Server 1GB$3950

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$399,900* Call Sales for Term & Conditions.

HSA 320EAY – 5-SIDED BRIDGE TYPE – (CAT50, 6K/10K)

Selected Options

Machine Options
Tool ARM Type Tool Magazine_90 pcs$92123
Tool ARM Type Tool Magazine (Vertical/Horizontal)_62 pcs$39955
Gear Spindle 6000RPM$22847
Coolant Through Spindle_70BAR (1015.24PSI) With Secondary Tank$18602
Automatic Mutiangular Milling Head_HF-AU360H, 1deg./div., 4000RPM, CTS$118989
Automatic Mutiangular Milling Head_HF-AU360H, 2.5deg./div., 4000RPM, CTS $112352
Automatic Extend Head_HF-AE50L*4000RPM, 500mmL (19.69"L)$27579
Automatic Extend Head_HF-AE35L*4000RPM, 350mmL (13.78"L)$23927
Automatic Angular Head (HF-A90H) 1deg./div., 4000RPM, CTS$70015
Automatic Angular Head (HF-A90H) 2.5deg./div., 4000RPM, CTS$68799
Auto Rotary ARM Seat of Angular Head for HF-A90$16952
Auto Rotary ARM Seat of Angular Head for HF-AU360$16743
Auto Rotary ARM Seat of Angular Head for HF-AR90$14627
TS-27R Intelligent Tool Setter (Touch Probe + Tool Database + Alarm Report System + Intelligent Tool Sort)$4630
Workpiece Measure Probe (Renishaw RMP60)$24823

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$769,000* Call Sales for Term & Conditions.

HSA 420EAY – 5-SIDED BRIDGE TYPE – (CAT50, 6K/10K)

Selected Options

Machine Options
Tool ARM Type Tool Magazine_90 pcs$92123
Tool ARM Type Tool Magazine (Vertical/Horizontal)_62 pcs$39955
Gear Spindle 6000RPM$22847
Coolant Through Spindle_70BAR (1015.24PSI) With Secondary Tank$18602
Automatic Mutiangular Milling Head_HF-AU360H, 1deg./div., 4000RPM, CTS$118989
Automatic Mutiangular Milling Head_HF-AU360H, 2.5deg./div., 4000RPM, CTS $112352
Automatic Extend Head_HF-AE50L*4000RPM, 500mmL (19.69"L)$27579
Automatic Extend Head_HF-AE35L*4000RPM, 350mmL (13.78"L)$23927
Automatic Angular Head (HF-A90H) 1deg./div., 4000RPM, CTS$70015
Automatic Angular Head (HF-A90H) 2.5deg./div., 4000RPM, CTS$68799
Auto Rotary ARM Seat of Angular Head for HF-A90$16952
Auto Rotary ARM Seat of Angular Head for HF-AU360$16743
Auto Rotary ARM Seat of Angular Head for HF-AR90$14627
TS-27R Intelligent Tool Setter (Touch Probe + Tool Database + Alarm Report System + Intelligent Tool Sort)$4630
Workpiece Measure Probe (Renishaw RMP60)$24823

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$839,000* Call Sales for Term & Conditions.

HSA 327EAY – 5-SIDED BRIDGE TYPE – (CAT50, 6K/10K)

Selected Options

Machine Options
Tool ARM Type Tool Magazine_90 pcs$92123
Tool ARM Type Tool Magazine (Vertical/Horizontal)_62 pcs$39955
Gear Spindle 6000RPM$22847
Coolant Through Spindle_70BAR (1015.24PSI) With Secondary Tank$18602
Automatic Mutiangular Milling Head_HF-AU360H, 1deg./div., 4000RPM, CTS$118989
Automatic Mutiangular Milling Head_HF-AU360H, 2.5deg./div., 4000RPM, CTS $112352
Automatic Extend Head_HF-AE50L*4000RPM, 500mmL (19.69"L)$27579
Automatic Extend Head_HF-AE35L*4000RPM, 350mmL (13.78"L)$23927
Automatic Angular Head (HF-A90H) 1deg./div., 4000RPM, CTS$70015
Automatic Angular Head (HF-A90H) 2.5deg./div., 4000RPM, CTS$68799
Auto Rotary ARM Seat of Angular Head for HF-A90$16952
Auto Rotary ARM Seat of Angular Head for HF-AU360$16743
Auto Rotary ARM Seat of Angular Head for HF-AR90$14627
TS-27R Intelligent Tool Setter (Touch Probe + Tool Database + Alarm Report System + Intelligent Tool Sort)$4630
Workpiece Measure Probe (Renishaw RMP60)$24823

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$819,000* Call Sales for Term & Conditions.

HSA 427EAY – 5-SIDED BRIDGE TYPE – (CAT50, 6K/10K)

Selected Options

Machine Options
Tool ARM Type Tool Magazine_90 pcs$92123
Tool ARM Type Tool Magazine (Vertical/Horizontal)_62 pcs$39955
Gear Spindle 6000RPM$22847
Coolant Through Spindle_70BAR (1015.24PSI) With Secondary Tank$18602
Automatic Mutiangular Milling Head_HF-AU360H, 1deg./div., 4000RPM, CTS$118989
Automatic Mutiangular Milling Head_HF-AU360H, 2.5deg./div., 4000RPM, CTS $112352
Automatic Extend Head_HF-AE50L*4000RPM, 500mmL (19.69"L)$27579
Automatic Extend Head_HF-AE35L*4000RPM, 350mmL (13.78"L)$23927
Automatic Angular Head (HF-A90H) 1deg./div., 4000RPM, CTS$70015
Automatic Angular Head (HF-A90H) 2.5deg./div., 4000RPM, CTS$68799
Auto Rotary ARM Seat of Angular Head for HF-A90$16952
Auto Rotary ARM Seat of Angular Head for HF-AU360$16743
Auto Rotary ARM Seat of Angular Head for HF-AR90$14627
TS-27R Intelligent Tool Setter (Touch Probe + Tool Database + Alarm Report System + Intelligent Tool Sort)$4630
Workpiece Measure Probe (Renishaw RMP60)$24823

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$869,000* Call Sales for Term & Conditions.

HSA 423 – BRIDGE TYPE – (CAT50, 6K/12K)

Selected Options

Machine Options
CTS 70 Bar (1000psi) with Water Cart (145.3 Gal)$24800
AICC 2 (_400 Blocks)$5970
Direct Drive Spindle 12000RPM_αiIT 22*26KW [34.87HP]$14062
Oil Skimmer$2600
Renishaw Tools Probe TS-27R$6900
Renishaw Workpiece Probe RMP 60$18900
Manual 90 Degree Head HF-M90L 2000RPM$12800
Manual Universal Head HF-MU360L 2500RPM$19800
Swivel Arm$8900
ATC 60 Tools (from 40 Tools Upgrade 60 Tools)$14700
Data Server 1GB$3950

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$669,900* Call Sales for Term & Conditions.

HSA 523 – BRIDGE TYPE – (CAT50, 6K/12K)

Selected Options

Machine Options
CTS 70 Bar (1000psi) with Water Cart (145.3 Gal)$24800
AICC 2 (_400 Blocks)$5970
Direct Drive Spindle 12000RPM_αiIT 22*26KW [34.87HP]$14062
Oil Skimmer$2600
Renishaw Tools Probe TS-27R$6900
Renishaw Workpiece Probe RMP 60$18900
Manual 90 Degree Head HF-M90L 2000RPM$12800
Manual Universal Head HF-MU360L 2500RPM$19800
Swivel Arm$8900
ATC 60 Tools (from 40 Tools Upgrade 60 Tools)$14700
Data Server 1GB$3950

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$729,900* Call Sales for Term & Conditions.

HSA 323 – BRIDGE TYPE – (CAT50, 6K/12K)

Selected Options

Machine Options
CTS 70 Bar (1000psi) with Water Cart (145.3 Gal)$24800
AICC 2 (_400 Blocks)$5970
Direct Drive Spindle 12000RPM_αiIT 22*26KW [34.87HP]$14062
Oil Skimmer$2600
Renishaw Tools Probe TS-27R$6900
Renishaw Workpiece Probe RMP 60$18900
Renishaw CAT40/50 OMP60 spindle probe CAT40/50 Shank OMP60 + OMP60 probe kit (MOD TX/OPT-OFF)$4500
Renishaw OTS AA optical tool setter$2400
Manual 90 Degree Head HF-M90L 2000RPM$12800
Manual Universal Head HF-MU360L 2500RPM$19800
Swivel Arm$8900
ATC 60 Tools (from 40 Tools Upgrade 60 Tools)$14700
Data Server 1GB$3950

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$599,900* Call Sales for Term & Conditions.

SW 316 – BRIDGE TYPE – (CAT50, 6K)

Selected Options

Machine Options
Z Axis Travel 42”$24900
Manual Angular Head (HF-M90L) 2000RPM$13859
HF-SU360L Semi-Automatic Universal Head 5 Degree 2500RPM$42800
HF-ME35L Manual Extension Head 350mmL 4000RPM$14800
HF-S90L Semi-Automatic 90 Degree Head 5 Degree Indexing 2000RPM$36800
Arm Seat for Head$8900
Renishaw Tools Probe TS-27R$6900
Renishaw Workpiece Probe RMP-60$18900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$339,900* Call Sales for Term & Conditions.

SW 323 – BRIDGE TYPE – (CAT50, 6K)

Selected Options

Machine Options
Z Axis Travel 42”$24900
Manual Angular Head (HF-M90L) 2000RPM$13859
HF-SU360L Semi-Automatic Universal Head 5 Degree 2500RPM$42800
HF-ME35L Manual Extension Head 350mmL 4000RPM$14800
HF-S90L Semi-Automatic 90 Degree Head 5 Degree Indexing 2000RPM$36800
Arm Seat for Head$8900
Renishaw Tools Probe TS-27R$6900
Renishaw Workpiece Probe RMP-60$18900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$529,900* Call Sales for Term & Conditions.

SW 423 – BRIDGE TYPE – (CAT50, 6K)

Selected Options

Machine Options
Z Axis Travel 42”$24900
Manual Angular Head (HF-M90L) 2000RPM$13859
HF-SU360L Semi-Automatic Universal Head 5 Degree 2500RPM$42800
HF-ME35L Manual Extension Head 350mmL 4000RPM$14800
HF-S90L Semi-Automatic 90 Degree Head 5 Degree Indexing 2000RPM$36800
Arm Seat for Head$8900
Renishaw Tools Probe OS-27R$6900
Renishaw Workpiece Probe OMP-60$18900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$599,900* Call Sales for Term & Conditions.

SW 523 – BRIDGE TYPE – (CAT50, 6K)

Selected Options

Machine Options
Z Axis Travel 42”$24900
Manual Angular Head (HF-M90L) 2000RPM$13859
HF-SU360L Semi-Automatic Universal Head 5 Degree 2500RPM$42800
HF-ME35L Manual Extension Head 350mmL 4000RPM$14800
HF-S90L Semi-Automatic 90 Degree Head 5 Degree Indexing 2000RPM$36800
Arm Seat for Head$8900
Renishaw Tools Probe TS-27R$6900
Renishaw Workpiece Probe RMP-60$18900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$649,900* Call Sales for Term & Conditions.

SW 623 – BRIDGE TYPE – (CAT50, 6K)

Selected Options

Machine Options
Z Axis Travel 42”$24900
Manual Angular Head (HF-M90L) 2000RPM$13859
HF-SU360L Semi-Automatic Universal Head 5 Degree 2500RPM$42800
HF-ME35L Manual Extension Head 350mmL 4000RPM$14800
HF-S90L Semi-Automatic 90 Degree Head 5 Degree Indexing 2000RPM$36800
Arm Seat for Head$8900
Renishaw Tools Probe TS-27R$6900
Renishaw Workpiece Probe RMP-60$18900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$699,900* Call Sales for Term & Conditions.

Kenichi Compact B

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

Kenichi Focus 5

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

Kenichi Linmax B

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

Kenichi Overview

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

HNK R Series

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

HNK NT & VTC Series

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

HNK KTM

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

HNK HPM

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

HNK HGH-HGG

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

HNK HL Series

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

HNK HFB Series

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

HNK HFB FLYER

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

HNK HB Series

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

HNK General

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

SXKH

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

SMART NL 2500/750 – BOX WAY – (10″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9900
Chip Conveyor - Side Discharge $5950
Auto Part Catcher (retrofitable)$3950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
3 Set of Hard Jaws$500
1 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1")$950
U-Drill Tool Holder (2")$950

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$105,900* Call Sales for Term & Conditions.

SMART NL 2500SY – BOX WAY – (10″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge $5950
Auto Part Catcher $3950
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1")$950
U-Drill Tool Holder (2")$950
X-Axis Live Tool Holder ER-25 (non-coolant thru)$3,100
Z-Axis Live Tool Holder ER-25 (non-coolant thru) $4,900
O.D. Holder (1”)$950
Double O.D. Holder (main/sub)$950
Double O.D. Holder (1/2 index)$950

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$169,900* Call Sales for Term & Conditions.

SMART SX 4000

Selected Options

Machine Options
Contact Your Distributor for Options.$

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$179,900* Call Sales for Term & Conditions.

SMART NL 6000M/1500 – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$7950
Hydraulic Steady Rest Preparation Kit$10900
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
Boring Bar Holder (3”)$950
O.D. Holder (1-1/4”)$950
X-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru)$5,400
Z-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru)$6,900

Sleeves
Boring Bar Sleeve Set 3”x(5/8”,3/4”,1”,1-1/4”,1-1/2”,2”,2-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$289,800* Call Sales for Term & Conditions.

SMART NL 6000XLM – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$10950
Hydraulic Steady Rest Preparation Kit$10900
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
X-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru)$5,400
Z-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru)$6,900
Boring Bar Holder (3”)$950
O.D. Holder (1-1/4”)$950

Sleeves
Boring Bar Sleeve Set 3”x(5/8”,3/4”,1”,1-1/4”,1-1/2”,2”,2-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$299,900* Call Sales for Term & Conditions.

SMART NL 6000XXLM – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$10950
Hydraulic Steady Rest Preparation Kit$10900
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
X-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru)$5,400
Z-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru)$6,900
Boring Bar Holder (3”)$950
O.D. Holder (1-1/4”)$950

Sleeves
Boring Bar Sleeve Set 3”x(5/8”,3/4”,1”,1-1/4”,1-1/2”,2”,2-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$539,900* Call Sales for Term & Conditions.

SMART NL 6000CXLM – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$9950
Hydraulic Steady Rest Preparation Kit$10900
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
24" Front Mounted 3-Jaw Air Chuck$39900
24" Rear Mounted 3-Jaw Manual Chuck$14900

Holders
X-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru) $5,400
Z-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru) $6,900
X-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru) $2,900
Z-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru) $4,600
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
Boring Bar Holder (3”)$950
O.D. Holder (1")$950

Sleeves
Boring Bar Sleeve Set 3”x(5/8”,3/4”,1”,1-1/4”,1-1/2”,2”,2-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$399* Call Sales for Term & Conditions.

SMART NL 6000LM – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$9950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
Hydraulic Steady Rest Preparation Kit $10900

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
Boring Bar Holder (3”)$950
O.D. Holder (1-1/4”)$950
X-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru)$5,400
Z-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru)$6,900

Sleeves
Boring Bar Sleeve Set 3”x(5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”,2",2-1/2")$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$249,900* Call Sales for Term & Conditions.

SMART NL 6000CLM – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$9950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
Hydraulic Steady Rest Preparation Kit $10900
24" Front Mounted 3-Jaw Air Chuck$39900
24" Rear Mounted 3-Jaw Manual Chuck$14900

Holders
X-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru) $5,400
Z-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru) $6,900
X-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru) $2,900
Z-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru) $4,600
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
Boring Bar Holder (3”)$950
O.D. Holder (1")$950

Sleeves
Boring Bar Sleeve Set 3”x(5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”,2",2-1/2")$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$319,900* Call Sales for Term & Conditions.

SMART NL 6000CM – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$9950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
Hydraulic Steady Rest Preparation Kit $10900
24" Front Mounted 3-Jaw Air Chuck$39900
24" Rear Mounted 3-Jaw Manual Chuck$

Holders
Face Tool Holder (1-1/4”)$950
Boring Bar Holder (3”)$950
O.D. Holder (1")$950
U-Drill Tool Holder (3")$950

Sleeves
Boring Bar Sleeve Set 3”x (5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”,2",2-1/2")$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$349,900* Call Sales for Term & Conditions.

SMART NL 6000SM/750 – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$7950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
Hydraulic Steady Rest Preparation Kit $10900
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
Boring Bar Holder (3”)$950
X-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru)$2,900
Z-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru)$4,600
X-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru) $5,400
Z-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru) $6,900
O.D. Holder (1")$950

Sleeves
Boring Bar Sleeve Set 3”x(5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”,2",2-1/2")$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$259,800* Call Sales for Term & Conditions.

SMART NX 7000

Selected Options

Machine Options
Expanded Capacity Automatic Tool Change System - Upcharge 88 Chain type ATC $39000
Expanded Capacity Automatic Tool Change System - Upcharge 126 Chain type ATC $79000
Additional Pallet$9900
Coolant Thru Spindle 870 PSI$10900
Overhead Shower Coolant System$5900
Chip Blaster Model JV40 (1000 PSI System) $21900
Chip Blaster Mist Blaster Mist Collection with HEPA Filter$8600
Conveyor with Mesh Hinge Belt, Scraper, Turbo Microfine 2$30900
Conveyor with Magnetic Plate for Filtration System Turbo$34900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$379,900* Call Sales for Term & Conditions.

SMART NX 5000

Selected Options

Machine Options
Additional Pallet$8900
Coolant Thru Spindle 870 PSI$10900
Overhead Shower Coolant System$5900
Chip Blaster Model JV40 (1000 PSI System)$21900
Chip Blaster Mist Blaster Mist Collection with HEPA Filter$8600
Conveyor with Mesh Hinge Belt, Scraper, Turbo Microfine 2$30900
Conveyor with Magnetic Plate for Filtration System Turbo$24900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$299,900* Call Sales for Term & Conditions.

SMART NL 6000XL – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9900
Chip Conveyor - Side Discharge$10950
Hydraulic Steady Rest Preparation Kit$10900
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
Boring Bar Holder (3”)$950
O.D. Holder (1-1/4”)$950

Sleeves
Boring Bar Sleeve Set 3”x(5/8”,3/4”,1”,1-1/4”,1-1/2”,2”,2-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$369,900* Call Sales for Term & Conditions.

SMART NL 2000 – BOX WAY – (8″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9900
Chip Conveyor - Side Discharge$5950
Auto Door Single - Door Open with Safety Release (retrofitable) (10 Weeks Delivery)$5400
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1”)$950
U-Drill Tool Holder (2”)$950
Boring Bar Holder (2")$950

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”)$1,800

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$85,900* Call Sales for Term & Conditions.

SMART NL 1500M – BOX WAY – (6″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$5950
Auto Door Single - Door Open with Safety Release (retrofitable) (10 Weeks Delivery)$5400
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1”)$950
U-Drill Tool Holder (2”)$950
Boring Bar Holder (2")$950
X-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru)$2,900
Z-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru)$4,600
O.D. Holder (1")$950

Sleeves
Boring Bar Sleeve Set 1.5”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”)$1,800

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$95,800* Call Sales for Term & Conditions.

SMART NL 1500 – BOX WAY – (6″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9900
Chip Conveyor - Side Discharge$5950
Auto Door Single - Door Open with Safety Release (retrofitable) (10 Weeks Delivery)$5400
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1”)$950
U-Drill Tool Holder (2”)$950
Boring Bar Holder (2")$950

Sleeves
Boring Bar Sleeve Set 1.5”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”)$1,800

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$85,900* Call Sales for Term & Conditions.

SMART NL 150 – BOX WAY – (6″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$5950
140 PSI Coolant Pump, Replaces Standard Pump$1450
Manual Guide i$2000
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450
Parts Catcher$3950
Tool Setter$3950
Oil Skimmer$1500

Holders
Face Tool Holder (1”)$950
U-Drill Tool Holder (2”)$950
Boring Bar Holder (2”)$950

Sleeves
Boring Bar Sleeve Set 1.5”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”)$1,800

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$72,900* Call Sales for Term & Conditions.

SMART NL 2000BSY – BOX WAY – (8″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$5950
Internal Parts Catcher / Parts Conveyor$5950
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Hard Jaws$300
3 Color Tower Light$450

Holders
X-Axis Live Tool Holder ER-25 (non-coolant thru)$2,900
Z-Axis Live Tool Holder ER-25 (non-coolant thru)$4,600
Face Tool Holder (1”)$950
O.D. Holder (1”)$950
U-Drill Tool Holder (1-1/2”)$950
Boring Bar Holder (1-1/2")$

Sleeves
Boring Bar Sleeve Set 1-1/2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”)$1,800

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$159,900* Call Sales for Term & Conditions.

SMART NL 5000LY – BOX WAY – (21″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$9950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
Hydraulic Steady Rest Preparation Kit $10900

Holders
X-Axis Live Tool Holder BMT75, ER-32 (non-coolant thru)$4,200
Z-Axis Live Tool Holder BMT75, ER-32 (non-coolant thru)$5,900
Face Tool Holder (1-1/4”)$950
O.D. Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2", 2"))$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$259,900* Call Sales for Term & Conditions.

SMART NL 4000LY – BOX WAY – (18″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$9950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
Hydraulic Steady Rest Preparation Kit $10900

Holders
X-Axis Live Tool Holder BMT75, ER-32 (non-coolant thru)$4,200
Z-Axis Live Tool Holder BMT75, ER-32 (non-coolant thru)$5,900
Face Tool Holder (1-1/4”)$950
O.D. Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2", 2"))$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$289,900* Call Sales for Term & Conditions.

SMART NL 3500BY – BOX WAY – (15″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$9950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
Hydraulic Steady Rest Preparation Kit $10900

Holders
X-Axis Live Tool Holder BMT75, ER-32 (non-coolant thru)$4,200
Z-Axis Live Tool Holder BMT75, ER-32 (non-coolant thru)$5,900
Face Tool Holder (1-1/4”)$950
O.D. Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2", 2"))$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$209,900* Call Sales for Term & Conditions.

SMART NL 2000ASY – BOX WAY – (6″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$5950
Internal Parts Catcher / Parts Conveyor$5950
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Hard Jaws$300
3 Color Tower Light$450

Holders
X-Axis Live Tool Holder ER-25 (non-coolant thru)$2,900
Z-Axis Live Tool Holder ER-25 (non-coolant thru)$4,600
Face Tool Holder (1”)$950
O.D. Holder (1”)$950
U-Drill Tool Holder (1-1/2”)$950
Boring Bar Holder (1-1/2")$950

Sleeves
Boring Bar Sleeve Set 1-1/2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”)$1,800

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$155,900* Call Sales for Term & Conditions.

SMART NL 2000M – BOX WAY – (8″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$5950
Auto Door Single - Door Open with Safety Release (retrofitable) (10 Weeks Delivery)$5400
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
X-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru)$2,900
Z-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru) $4,600
Face Tool Holder (1”)$950
U-Drill Tool Holder (1.5”)$950
O.D. Holder (1”)$950
Boring Bar Holder (1.5”)$950

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”)$1,800

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$89,800* Call Sales for Term & Conditions.

SMART NL 2000BM – BOX WAY – (10″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$5950
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
X-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru)$2,900
Z-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru) $4,600
Face Tool Holder (1”)$950
U-Drill Tool Holder (2”)$950
O.D. Holder (1”)$950
Boring Bar Holder (2”)$950

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”)$1,800

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$99,800* Call Sales for Term & Conditions.

SMART SM30-2500

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$179,900* Call Sales for Term & Conditions.

SMART SV 2 – LINEAR WAY – (CAT40, 12K)

Selected Options

Machine Options
290 PSI Coolant Thru Spindle $3900
Renishaw Receiver and GUI Software$3000
Renishaw Probe and Tool Setter (when purchased with machine)$1995
CTS Preparation$1900
4 Axis Preparation$1950
High Speed Machining, 200 Look Ahead$995
Coolant/Air Gun$950

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$74,900* Call Sales for Term & Conditions.

SMART SV 1 – LINEAR WAY – (CAT40, 8K)

Selected Options

Machine Options
290 PSI Coolant Thru Spindle $2900
10,000 RPM with Spindle Oil Coolant$3500
Auger for Chip Removal$2900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$64,900* Call Sales for Term & Conditions.

SMART SV 4 – LINEAR WAY – (CAT40, 12K)

Selected Options

Machine Options
290 PSI Coolant Thru Spindle$2900
Renishaw Receiver and GUI Software$3000
Renishaw Probe and Tool Setter (when purchased with machine)$1995
CTS Preparation$1900
4 Axis Preparation$1950
High Speed Machining, 200 Look Ahead$995
Coolant/Air Gun$950

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$94,900* Call Sales for Term & Conditions.

SMART SV 3 – LINEAR WAY – (CAT40, 12K)

Selected Options

Machine Options
290 PSI Coolant Thru Spindle$2900
Renishaw Receiver and GUI Software$3000
Renishaw Probe and Tool Setter (when purchased with machine)$1995
CTS Preparation$1900
4 Axis Preparation$1950
High Speed Machining, 200 Look Ahead$995
Coolant/Air Gun$950

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$84,900* Call Sales for Term & Conditions.

SMART SV 5 – LINEAR WAY – (CAT40, 12K)

Selected Options

Machine Options
Renishaw Probe and Tool Setter (when purchased with machine)$1995
290 PSI Coolant Thru Spindle$2900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$114,900* Call Sales for Term & Conditions.

SMART SM30-4500

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$249,900* Call Sales for Term & Conditions.

SMART SM30-6500

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$279,900* Call Sales for Term & Conditions.

SMART NL 2500M/750 – BOX WAY – (10″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$5950
Auto Part Catcher (Retrofitable)$3950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
X-Axis Live Tool Holder BMT65, ER-32 (non-coolant thru)$3,100
Z-Axis Live Tool Holder BMT65, ER-32 (non-coolant thru)$4,900
Face Tool Holder (1")$950
O.D. Holder (1”)$950
U-Drill Tool Holder (2")$950
Boring Bar Holder (2”)$950

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$115,800* Call Sales for Term & Conditions.

SMART NL 3000BLM – BOX WAY – (12″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge $6950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
3 Set of Hard Jaws$500
1 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1")$950
U-Drill Tool Holder (2")$950
X-Axis Live Tool Holder BMT65, ER-32 (non-coolant thru)$3,100
Z-Axis Live Tool Holder BMT65, ER-32 (non-coolant thru)$4,900
O.D. Holder (1”)$950
Boring Bar Holder (2”)$950

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$139,900* Call Sales for Term & Conditions.

SMART NL 3000BM – BOX WAY – (12″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge $6950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1")$950
U-Drill Tool Holder (2")$950
Boring Bar Holder (2”)$950
O.D. Holder (1”) $950
X-Axis Live Tool Holder BMT65, ER-32 (non-coolant thru) $3,100
Z-Axis Live Tool Holder BMT65, ER-32 (non-coolant thru) $4,900

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$141,800* Call Sales for Term & Conditions.

SMART NL 3000BL – BOX WAY – (12″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9900
Chip Conveyor - Side Discharge $6950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
3 Set of Hard Jaws$500
1 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1")$950
U-Drill Tool Holder (2")$950
Boring Bar Holder (2”)$950
X-Axis Live Tool Holder BMT65, ER-32 (non-coolant thru) $2,100
Z-Axis Live Tool Holder BMT65, ER-32 (non-coolant thru) $3,900

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$139,900* Call Sales for Term & Conditions.

SMART NL 3000B – BOX WAY – (12″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$10000
Chip Conveyor - Side Discharge $6950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1")$950
U-Drill Tool Holder (2")$950
Boring Bar Holder (2”)$950

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$131,900* Call Sales for Term & Conditions.

SMART NL 4000 – BOX WAY – (18″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9900
Chip Conveyor - Side Discharge $7950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950
Boring Bar Holder (2-1/2”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$189,900* Call Sales for Term & Conditions.

SMART NL 4000L – BOX WAY

Selected Options

Machine Options
Milling/Live Tool Turret$9900
Chip Conveyor - Side Discharge $7950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950
Boring Bar Holder (2-1/2”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$215,900* Call Sales for Term & Conditions.

SMART NL 5000M – BOX WAY – (21″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge $7950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950
X-Axis Live Tool Holder BMT75, ER-40 (non-coolant thru)$4,200
Z-Axis Live Tool Holder BMT75, ER-40 (non-coolant thru)$5,900
Boring Bar Holder (2-1/2”)$950
O.D. Holder (1-1/4”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$229,800* Call Sales for Term & Conditions.

SMART NL 4000M – BOX WAY – (18″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge $7950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950
X-Axis Live Tool Holder BMT75, ER-40 (non-coolant thru)$4,200
Z-Axis Live Tool Holder BMT75, ER-40 (non-coolant thru)$5,900
Boring Bar Holder (2-1/2”)$950
O.D. Holder (1-1/4”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$179,800* Call Sales for Term & Conditions.

SMART NL 4000LM – BOX WAY (18″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge $7950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950
X-Axis Live Tool Holder BMT75, ER-40 (non-coolant thru)$4,200
Z-Axis Live Tool Holder BMT75, ER-40 (non-coolant thru)$5,900
Boring Bar Holder (2-1/2”)$950
O.D. Holder (1-1/4”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$225,800* Call Sales for Term & Conditions.

SMART NL 5000LM – BOX WAY – (21″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge $9950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
Hydraulic Steady Rest Preparation Kit$10900

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950
X-Axis Live Tool Holder BMT75, ER-40 (non-coolant thru)$4,200
Z-Axis Live Tool Holder BMT75, ER-40 (non-coolant thru)$5,900
Boring Bar Holder (2-1/2”)$950
O.D. Holder (1-1/4”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$199,900* Call Sales for Term & Conditions.

SMART NL 5000 – BOX WAY – (21″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9900
Chip Conveyor - Side Discharge $7950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950
Boring Bar Holder (2-1/2”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$219,900* Call Sales for Term & Conditions.

SMART NL 5000L – BOX WAY – (21″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9900
Chip Conveyor - Side Discharge $9950
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
Hydraulic Steady Rest Preparation Kit$10900
3 Set of Hard Jaws$500
1 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950
Boring Bar Holder (2-1/2”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$249,900* Call Sales for Term & Conditions.

SMART NL 6000L – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9900
Chip Conveyor - Side Discharge 2200$9950
Hydraulic Steady Rest Preparation Kit$10900
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
3 Set of Hard Jaws$500
1 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
Boring Bar Holder (3”)$950

Sleeves
Boring Bar Sleeve Set 3”x(5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$309,900* Call Sales for Term & Conditions.

SMART NL 6000S/750 – BOX WAY (24″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9900
Chip Conveyor - Side Discharge$7950
Hydraulic Steady Rest Preparation Kit$10900
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
Boring Bar Holder (3”)$950

Sleeves
Boring Bar Sleeve Set 3”x(5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$249,900* Call Sales for Term & Conditions.

SMART NL 6000/1500 – BOX WAY (24″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9900
Chip Conveyor - Side Discharge 2200$7950
Hydraulic Steady Rest Preparation Kit$10900
140 PSI Coolant Pump, Replaces Standard Pump$1450
290 PSI Coolant Pump, Replaces Standard Pump$3600
Manual Guide i Training$2000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
Boring Bar Holder (3”)$950

Sleeves
Boring Bar Sleeve Set 3”x(5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$279,900* Call Sales for Term & Conditions.

VTC-20/25

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

SMART SM40-4500

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

VTC-100/160

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

VTC-25/40

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

SMART SM40-6500

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

SMART SM40-8500

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

Coming Soon

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

SM30 & SM40 Brochure

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

NX Series Brochure

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

NL Series Brochure

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

NL Flyer

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

General Line-Up Brochure

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

SMART Korea General Lineup Brochure

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$0* Call Sales for Term & Conditions.

VTC-80/100

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

VTC-60/70

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

VTC-40/50

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

VTC-28/30

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

VTC-12/16R

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

HB-150LHX

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

VTC-50/60

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

HB-150X

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

VTC-30/40

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

HB-130X

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

NT-10/12 F

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

HB-130S

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

HB-150

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

HB-110M

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

HB-130CX

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

HB-130C

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

VTC-16/20R

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

HB-150LH

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

HB-130

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$* Call Sales for Term & Conditions.

SMART MINI – LINEAR WAY – (CAT40, 12K) - Quote

Your Dealer:

Specifications

X Travel

23.6
Y Travel

17.72
Z Travel

19.69
Table Size

29.53 x 17.72
Spindle Taper

CAT40
Spindle Speed

12,000 rpm
AC Spindle Motor

10/15 HP

WSX-TEST - Quote

Your Dealer:

Specifications

SM 1050, 1370, 1570 Linear Guideway Series Brochure - Quote

Your Dealer:

Specifications

High Speed Tapping and Machining Centers Brochure - Quote

Your Dealer:

Specifications

SM 1100, 1370, 1682, 2082, 2110 Box Way Series Brochure - Quote

Your Dealer:

Specifications

SV Series Brochure - Quote

Your Dealer:

Specifications

SW 216 – BRIDGE TYPE – (CAT50, 6K) - Quote

Your Dealer:

Specifications

X Travel

82.68
Y Travel

62.99
Z Travel

30.71
Table Size

78.74 x 57.09
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

SMART SM 1682-50 – BOX WAY – (CAT50, 6K) - Quote

Your Dealer:

Specifications

X Travel

62.99
Y Travel

32.28
Z Travel

25.98
Table Size

69.9 x 32.28
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35/30 hp
Magazine Capacity

40

SMART SM 1370-50 – BOX WAY – (CAT50, 6K) - Quote

Your Dealer:

Specifications

X Travel

51.18
Y Travel

27.56
Z Travel

25.98
Table Size

57.09 x 27.56
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35/30 hp
Magazine Capacity

24

SMART NV 5500L – LINEAR WAY – (CAT40, 12K) - Quote

Your Dealer:

Specifications

X Travel

53.15
Y Travel

22.44
Z Travel

20.8
Table Size

59.06 x 22.44
Spindle Taper

CAT40 (BIG Plus)
Spindle Speed

12,000 rpm
Spindle HP

25 hp
Magazine Capacity

30

SMART KT 360D – LINEAR WAY – (BT30, 15K) - Quote

Your Dealer:

Specifications

X Travel

20.5
Y Travel

14.2
Z Travel

11.8
Table Size

29.59 x 13.7
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10/7.5 hp
Magazine Capacity

14

SMART KM 430 – CROSS ROLLER WAY – (BT40, 12K) - Quote

Your Dealer:

Specifications

X Travel

31
Y Travel

16.9
Z Travel

16.9
Table Size

36 x 16
Spindle Taper

BT40
Spindle Speed

12,000 rpm
Spindle HP

15 hp
Magazine Capacity

20

SMART KM 500 – CROSS ROLLER WAY – (BT30, 12K) - Quote

Your Dealer:

Specifications

X Travel

39
Y Travel

19.9
Z Travel

20.4
Table Size

40 x 20
Spindle Taper

BT30
Spindle Speed

12,000 rpm
Spindle HP

15 hp
Magazine Capacity

24

SMART KT 420 – CROSS ROLLER WAY – (BT30, 15K) - Quote

Your Dealer:

Specifications

X Travel

22
Y Travel

16.5
Z Travel

11.8
Table Size

25.9 x 15.7
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10 hp
Magazine Capacity

14

SMART KT 420A – CROSS ROLLER WAY – (BT30, 15K) - Quote

Your Dealer:

Specifications

X Travel

22
Y Travel

16.5
Z Travel

11.8
Table Size

25.9 x 15.7
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

25 / 7.5 hp
Magazine Capacity

20

SMART KT 420L – CROSS ROLLER WAY – (BT30, 15K) - Quote

Your Dealer:

Specifications

X Travel

27.5
Y Travel

16.5
Z Travel

11.8
Table Size

31.5 x 15.7
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10 hp
Magazine Capacity

14

SMART KT 420AL – CROSS ROLLER WAY – (BT30, 15K) - Quote

Your Dealer:

Specifications

X Travel

27.5
Y Travel

16.5
Z Travel

11.8
Table Size

31.5 x 15.7
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

25 / 7.5 hp
Magazine Capacity

20

SMART KT 420DH – CROSS ROLLER WAY – (BT30, 15K) - Quote

Your Dealer:

Specifications

X Travel

22
Y Travel

16.5
Z Travel

16.9
Table Size

15.7 x 45
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10 hp
Magazine Capacity

2-20

SMART KT 450DH – CROSS ROLLER WAY – (CAT40, 12K) - Quote

Your Dealer:

Specifications

X Travel

22
Y Travel

16
Z Travel

16.9
Table Size

15.7 x 45
Spindle Taper

CAT40
Spindle Speed

12,000 rpm
Spindle HP

15 hp
Magazine Capacity

2-26

SMART KT 500 – CROSS ROLLER WAY – (BT30, 15K) - Quote

Your Dealer:

Specifications

X Travel

39
Y Travel

19
Z Travel

12
Table Size

44 x 19
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10 hp
Magazine Capacity

14

SMART KT 700 – CROSS ROLLER WAY – (BT30, 15K) - Quote

Your Dealer:

Specifications

X Travel

31
Y Travel

27
Z Travel

12
Table Size

31 x 27
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10 hp
Magazine Capacity

14

SMART KM 450D – LINEAR WAY – (CAT40, 12K) - Quote

Your Dealer:

Specifications

X Travel

27.6
Y Travel

17.7
Z Travel

18.9
Table Size

27.5 x 17.7
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

15/10 hp
Magazine Capacity

30

SMART SM 1100-50 – BOX WAY – (CAT50, 6K) - Quote

Your Dealer:

Specifications

X Travel

43.31
Y Travel

23.62
Z Travel

24.8
Table Size

50 x 23.62
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

30/25 hp
Magazine Capacity

32

SMART SM 1682-50 – BOX WAY – (CAT50, 12K) - Quote

Your Dealer:

Specifications

X Travel

62.99
Y Travel

32.28
Z Travel

25.98
Table Size

69.9 x 32.28
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

12,000 rpm
Spindle HP

25 hp
Magazine Capacity

40

SMART SM 2082-50 – BOX WAY – (CAT50, 6K) - Quote

Your Dealer:

Specifications

X Travel

81.1
Y Travel

32.28
Z Travel

25.98
Table Size

84.65 x 32.28
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35/30 hp
Magazine Capacity

40

SMART SM 2110-50 – BOX WAY – (CAT50, 6K) - Quote

Your Dealer:

Specifications

X Travel

82.68
Y Travel

40.16
Z Travel

32.28
Table Size

88.58 x 40.16
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35/30 hp
Magazine Capacity

40

HSA 2212 – BRIDGE TYPE – (CAT50, 6K/12K) - Quote

Your Dealer:

Specifications

X Travel

88.58
Y Travel

47.24
Z Travel

30.71
Table Size

78.74 x 43.31
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/12,000 RPM
Spindle HP

35 hp
Magazine Capacity

40

HSA 3212 – BRIDGE TYPE – (CAT50, 6K) - Quote

Your Dealer:

Specifications

X Travel

127.95
Y Travel

47.24
Z Travel

30.71
Table Size

118.11 x 43.31
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 RPM
Spindle HP

35 hp
Magazine Capacity

40

HSA 2212 – BRIDGE TYPE – (CAT40, 12K) - Quote

Your Dealer:

Specifications

X Travel

88.58
Y Travel

47.24
Z Travel

30.71
Table Size

78.74 x 43.31
Spindle Taper

CAT40 (BIG Plus)
Spindle Speed

12,000 RPM
Spindle HP

25 hp
Magazine Capacity

40

HSA 320EAY – 5-SIDED BRIDGE TYPE – (CAT50, 6K/10K) - Quote

Your Dealer:

Specifications

X Travel

118.11
Y Travel

110.24
Z Travel

39.37
Table Size

118.11 x 70.87
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/10,000 RPM
Spindle HP

60 hp
Magazine Capacity

32

HSA 420EAY – 5-SIDED BRIDGE TYPE – (CAT50, 6K/10K) - Quote

Your Dealer:

Specifications

X Travel

157.48
Y Travel

110.24
Z Travel

39.37
Table Size

157.48 x 70.87
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/10,000 RPM
Spindle HP

60 hp
Magazine Capacity

32

HSA 327EAY – 5-SIDED BRIDGE TYPE – (CAT50, 6K/10K) - Quote

Your Dealer:

Specifications

X Travel

118.11
Y Travel

137.8
Z Travel

39.37
Table Size

118.11 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/10,000 RPM
Spindle HP

30/25 hp
Magazine Capacity

32

HSA 427EAY – 5-SIDED BRIDGE TYPE – (CAT50, 6K/10K) - Quote

Your Dealer:

Specifications

X Travel

157.48
Y Travel

137.8
Z Travel

39.37
Table Size

157.48 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/10,000 RPM
Spindle HP

30/25 hp
Magazine Capacity

32

HSA 423 – BRIDGE TYPE – (CAT50, 6K/12K) - Quote

Your Dealer:

Specifications

X Travel

157.48
Y Travel

90.55
Z Travel

30.71
Table Size

157.48 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/12,000 RPM
Spindle HP

35 hp
Magazine Capacity

40

HSA 523 – BRIDGE TYPE – (CAT50, 6K/12K) - Quote

Your Dealer:

Specifications

X Travel

196.85
Y Travel

90.55
Z Travel

30.71
Table Size

196.85 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/12,000 RPM
Spindle HP

35 hp
Magazine Capacity

40

HSA 323 – BRIDGE TYPE – (CAT50, 6K/12K) - Quote

Your Dealer:

Specifications

X Travel

118.11
Y Travel

90.55
Z Travel

30.71
Table Size

118.11 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/12,000 RPM
Spindle HP

35 hp
Magazine Capacity

40

SW 316 – BRIDGE TYPE – (CAT50, 6K) - Quote

Your Dealer:

Specifications

X Travel

122.05
Y Travel

62.99
Z Travel

30.71
Table Size

118.11 x 57.09
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

SW 323 – BRIDGE TYPE – (CAT50, 6K) - Quote

Your Dealer:

Specifications

X Travel

118.11
Y Travel

90.55
Z Travel

30.71
Table Size

118.11 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

SW 423 – BRIDGE TYPE – (CAT50, 6K) - Quote

Your Dealer:

Specifications

X Travel

157.48
Y Travel

90.55
Z Travel

30.71
Table Size

157.48 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

SW 523 – BRIDGE TYPE – (CAT50, 6K) - Quote

Your Dealer:

Specifications

X Travel

196.85
Y Travel

90.55
Z Travel

30.71
Table Size

196.85 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

SW 623 – BRIDGE TYPE – (CAT50, 6K) - Quote

Your Dealer:

Specifications

X Travel

236.22
Y Travel

90.55
Z Travel

30.71
Table Size

236.22 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

Kenichi Compact B - Quote

Your Dealer:

Specifications

Kenichi Focus 5 - Quote

Your Dealer:

Specifications

Kenichi Linmax B - Quote

Your Dealer:

Specifications

Kenichi Overview - Quote

Your Dealer:

Specifications

HNK R Series - Quote

Your Dealer:

Specifications

HNK NT & VTC Series - Quote

Your Dealer:

Specifications

HNK KTM - Quote

Your Dealer:

Specifications

HNK HPM - Quote

Your Dealer:

Specifications

HNK HGH-HGG - Quote

Your Dealer:

Specifications

HNK HL Series - Quote

Your Dealer:

Specifications

HNK HFB Series - Quote

Your Dealer:

Specifications

HNK HFB FLYER - Quote

Your Dealer:

Specifications

HNK HB Series - Quote

Your Dealer:

Specifications

HNK General - Quote

Your Dealer:

Specifications

SXKH - Quote

Your Dealer:

Specifications

SMART NL 2500/750 – BOX WAY – (10″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

27.56
Max Turning Diameter

18.90
Max Turning Length

29.53
Chuck

10
Spindle Nose

A2-8
Spindle Motor

47 hp
Spindle Speed

4,000 rpm
Bar Capacity

3.19

SMART NL 2500SY – BOX WAY – (10″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

31.89
Max Turning Diameter

15.51
Max Turning Length

28.07
Chuck /Sub Spindle

10 / 8
Spindle Nose / Sub Spindle

A2-8 / A2-6
Spindle Motor / Sub Spindle

25/35 hp / 20 hp
Spindle Speed / Sub Spindle

4,000 rpm / 5,000 rpm
Bar Capacity / Sub Spindle

3.19 / 2.0

SMART SX 4000 - Quote

Your Dealer:

Specifications

X Travel

22.05
Y Travel

22.05
Z Travel

27.17
Table Size

15.75
Spindle Taper

#40
Spindle Speed

100 - 15,000 RPM
Spindle HP

50
Spindle Torque (ft/lbs)

184
Rapid Traverse Rate

2,480
Number of Tools

60

SMART NL 6000M/1500 – BOX WAY – (24″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

59.06
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50 / 73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

SMART NL 6000XLM – BOX WAY – (24″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

125.98
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

SMART NL 6000XXLM – BOX WAY – (24″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

157
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

SMART NL 6000CXLM – BOX WAY – (24″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

35.4
Max Turning Length

125.9
Chuck

Chuck Not Included
Spindle Nose

A1-20
Spindle Motor

50/73 hp
Spindle Speed

1,000 rpm
Bar Capacity

6.56

SMART NL 6000LM – BOX WAY – (24″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

86.61
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

SMART NL 6000CLM – BOX WAY – (24″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

35.4
Max Turning Length

86.6
Chuck

Chuck Not Included
Spindle Nose

A1-20
Spindle Motor

50/73 hp
Spindle Speed

1,000 rpm
Bar Capacity

6.52

SMART NL 6000CM – BOX WAY – (24″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

37.80
Max Turning Length

61.02
Chuck

Chuck Not Included
Spindle Nose

A1-20
Spindle Motor

50/73 hp
Spindle Speed

1,000 rpm
Bar Capacity

10.8

SMART NL 6000SM/750 – BOX WAY – (24″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

27.56
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.52

SMART NX 7000 - Quote

Your Dealer:

Specifications

X Travel

39
Y Travel

37
Z Travel

41.3
Table Size

24
Spindle Taper

50
Spindle Speed

12,000 rpm
Spindle Torque (ft/lbs)

310
Rapid Traverse Rate

2,362
Number of Tools

64/88

SMART NX 5000 - Quote

Your Dealer:

Specifications

X Travel

31
Y Travel

29
Z Travel

32.7
Table Size

20
Spindle Taper

50
Spindle Speed

12,000 rpm
Spindle Torque (ft/lbs)

310
Rapid Traverse Rate

1,968
Number of Tools

60

SMART NL 6000XL – BOX WAY – (24″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

125
Chuck

24
Spindle Nose

A2-15
Spindle Motor

73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.55

SMART NL 2000 – BOX WAY – (8″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

22.44
Max Turning Diameter

15.39
Max Turning Length

22.05
Chuck

8
Spindle Nose

A2-6
Spindle Motor

20/25 hp
Spindle Speed

4,500 rpm
Bar Capacity

2.64

SMART NL 1500M – BOX WAY – (6″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

22.44
Max Turning Diameter

15.0
Max Turning Length

21.26
Chuck

6
Spindle Nose

A2-5
Spindle Motor

15/25 hp
Spindle Speed

6,000 rpm
Bar Capacity

2.01

SMART NL 1500 – BOX WAY – (6″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

22.44
Max Turning Diameter

15.39
Max Turning Length

22.05
Chuck

6
Spindle Nose

A2-5
Spindle Motor

15/25 hp
Spindle Speed

6,000 rpm
Bar Capacity

2.01

SMART NL 150 – BOX WAY – (6″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

22.44
Max Turning Diameter

15.39
Max Turning Length

22.05
Chuck

6
Spindle Nose

A2-5
Spindle Motor

15/25 hp
Spindle Speed

6,000 rpm
Bar Capacity

2.01

SMART NL 2000BSY – BOX WAY – (8″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

31.89
Max Turning Diameter

16.18
Max Turning Length

28.94
Chuck

8
Spindle Nose

A2-6
Spindle Motor

20/25 hp
Spindle Speed

4,500 rpm
Bar Capacity

2.64

SMART NL 5000LY – BOX WAY – (21″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

35.4
Max Turning Diameter

21.6
Max Turning Length

78.4
Chuck

21
Spindle Nose

A2-15
Spindle Motor

60 hp
Spindle Speed

1,500 rpm
Bar Capacity

6.56

SMART NL 4000LY – BOX WAY – (18″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

35.4
Max Turning Diameter

21.6
Max Turning Length

79.4
Chuck

18
Spindle Nose

A2-11
Spindle Motor

60 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.63

SMART NL 3500BY – BOX WAY – (15″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

33.5
Max Turning Diameter

16.9
Max Turning Length

57
Chuck

15
Spindle Nose

A2-11
Spindle Motor

40 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.6

SMART NL 2000ASY – BOX WAY – (6″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

31.89
Max Turning Diameter

16.18
Max Turning Length

29.53
Chuck

6
Spindle Nose

A2-5
Spindle Motor

15 / 25 hp
Spindle Speed

6,000 rpm
Bar Capacity

2.00

SMART NL 2000M – BOX WAY – (8″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

22.44
Max Turning Diameter

15.0
Max Turning Length

21.26
Chuck

8
Spindle Nose

A2-6
Spindle Motor

20/25 hp
Spindle Speed

4,500 rpm
Bar Capacity

2.56

SMART NL 2000BM – BOX WAY – (10″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

22.44
Max Turning Diameter

15.0
Max Turning Length

21.26
Chuck

10
Spindle Nose

A2-8
Spindle Motor

20/25 hp
Spindle Speed

3,500 rpm
Bar Capacity

3.19

SMART SM30-2500 - Quote

Your Dealer:

Specifications

X AXIS TRAVEL (INCHES)

98.42
Y AXIS TRAVEL (INCHES)

15.75
Z AXIS TRAVEL (INCHES)

15.75
TABLE SIZE (INCHES)

98.42 x 15.75
SPINDLE TAPER

BBT30
SPINDLE SPEED

12,000 RPM
SPINDLE HP

5.5 HP
MAGAZINE CAPACITY

16

SMART SV 2 – LINEAR WAY – (CAT40, 12K) - Quote

Your Dealer:

Specifications

X Travel

31.4
Y Travel

19.6
Z Travel

19.6
Table Size

19.6 x 39.2
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

20/25 hp
Magazine Capacity

30

SMART SV 1 – LINEAR WAY – (CAT40, 8K) - Quote

Your Dealer:

Specifications

X Travel

23.6
Y Travel

17.7
Z Travel

19.7
Table Size

29.5 x 17.7
Spindle Taper

CAT40
Spindle Speed

8,000 rpm
Spindle HP

15/20 hp
Magazine Capacity

24

SMART SV 4 – LINEAR WAY – (CAT40, 12K) - Quote

Your Dealer:

Specifications

X Travel

51.18
Y Travel

25.59
Z Travel

23.62
Table Size

57.09 x 23.62
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

20/25 hp
Magazine Capacity

30

SMART SV 3 – LINEAR WAY – (CAT40, 12K) - Quote

Your Dealer:

Specifications

X Travel

41.34
Y Travel

20.47
Z Travel

20.47
Table Size

45.28 x 19.69
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

20/25 hp
Magazine Capacity

30

SMART SV 5 – LINEAR WAY – (CAT40, 12K) - Quote

Your Dealer:

Specifications

X Travel

51.18
Y Travel

27.56
Z Travel

27.56
Table Size

57.09 x 25.59
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

20/25 hp
Magazine Capacity

30

SMART SM30-4500 - Quote

Your Dealer:

Specifications

X AXIS TRAVEL (INCHES)

177.17
Y AXIS TRAVEL (INCHES)

15.75
Z AXIS TRAVEL (INCHES)

15.75
TABLE SIZE (INCHES)

177.17 x 15.75
SPINDLE TAPER

BBT30
SPINDLE SPEED

12,000 RPM
SPINDLE HP

5.5 HP
MAGAZINE CAPACITY

16

SMART SM30-6500 - Quote

Your Dealer:

Specifications

X AXIS TRAVEL (INCHES)

255.91
Y AXIS TRAVEL (INCHES)

15.75
Z AXIS TRAVEL (INCHES)

15.75
TABLE SIZE

255.91 x 15.75
SPINDLE TAPER

BBT30
SPINDLE SPEED

12,000 RPM
SPINDLE HP

5.5 HP
MAGAZINE CAPACITY

16

SMART NL 2500M/750 – BOX WAY – (10″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

27.56
Max Turning Diameter

17.72
Max Turning Length

27.56
Chuck

10
Spindle Nose

A2-8
Spindle Motor

47 hp
Spindle Speed

4,000 rpm
Bar Capacity

3.19

SMART NL 3000BLM – BOX WAY – (12″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

27.56
Max Turning Diameter

17.72
Max Turning Length

41.34
Chuck

12
Spindle Nose

A2-11
Spindle Motor

29.5/47 hp
Spindle Speed

2,800 rpm
Bar Capacity

4.02

SMART NL 3000BM – BOX WAY – (12″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

27.56
Max Turning Diameter

17.72
Max Turning Length

29.53
Chuck

12
Spindle Nose

A2-11
Spindle Motor

29.5/47 hp
Spindle Speed

2,800 rpm
Bar Capacity

4.02

SMART NL 3000BL – BOX WAY – (12″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

27.56
Max Turning Diameter

18.90
Max Turning Length

43.31
Chuck

12
Spindle Nose

A2-11
Spindle Motor

29.5/47 hp
Spindle Speed

2,800 rpm
Bar Capacity

4.02

SMART NL 3000B – BOX WAY – (12″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

27.56
Max Turning Diameter

18.90
Max Turning Length

29.53
Chuck

12
Spindle Nose

A2-11
Spindle Motor

29.5/47 hp
Spindle Speed

2,800 rpm
Bar Capacity

4.02

SMART NL 4000 – BOX WAY – (18″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

31.10
Max Turning Diameter

22.83
Max Turning Length

47.76
Chuck

18
Spindle Nose

A2-11
Spindle Motor

40/60 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.63

SMART NL 4000L – BOX WAY - Quote

Your Dealer:

Specifications

Swing Over Bed

31.10
Max Turning Diameter

22.83
Max Turning Length

87.13
Chuck

18
Spindle Nose

A2-11
Spindle Motor

40/60 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.59

SMART NL 5000M – BOX WAY – (21″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

35.43
Max Turning Diameter

22.05
Max Turning Length

44.06
Chuck

21
Spindle Nose

A2-15
Spindle Motor

40/60 hp
Spindle Speed

1,500 rpm
Bar Capacity

6.56

SMART NL 4000M – BOX WAY – (18″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

31.10
Max Turning Diameter

22.05
Max Turning Length

45.08
Chuck

18
Spindle Nose

A2-11
Spindle Motor

40 / 60 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.59

SMART NL 4000LM – BOX WAY (18″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

31.10
Max Turning Diameter

22.05
Max Turning Length

84.5
Chuck

18
Spindle Nose

A2-11
Spindle Motor

40 / 60 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.59

SMART NL 5000LM – BOX WAY – (21″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

35.43
Max Turning Diameter

22.05
Max Turning Length

83.43
Chuck

21
Spindle Nose

A2-15
Spindle Motor

40/60 hp
Spindle Speed

1,500 rpm
Bar Capacity

6.56

SMART NL 5000 – BOX WAY – (21″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

35.43
Max Turning Diameter

26.38
Max Turning Length

45.47
Chuck

21
Spindle Nose

A2-15
Spindle Motor

40/60 hp
Spindle Speed

1,500 rpm
Bar Capacity

6.56

SMART NL 5000L – BOX WAY – (21″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

35.43
Max Turning Diameter

22.83
Max Turning Length

84.84
Chuck

21
Spindle Nose

A2-15
Spindle Motor

40/60 hp
Spindle Speed

1,500 rpm
Bar Capacity

6.56

SMART NL 6000L – BOX WAY – (24″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

37.80
Max Turning Length

88.58
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

SMART NL 6000S/750 – BOX WAY (24″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

37.80
Max Turning Length

29.53
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

SMART NL 6000/1500 – BOX WAY (24″ CHUCK) - Quote

Your Dealer:

Specifications

Swing Over Bed

40.55
Max Turning Diameter

37.80
Max Turning Length

61.02
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

VTC-20/25 - Quote

Your Dealer:

Specifications

TABLE SIZE

78.7''
MAX SWING/MAX TURNING DIAMETER

98.4''
MAX TURNING HEIGHT

70.9''
MAX LOAD

26460 LBS
TABLE SPEED

200 RPM
TABLE HP

60/75 HP
MACHINE WEIGHT

105600 LBS

SMART SM40-4500 - Quote

Your Dealer:

Specifications

X AXIS TRAVEL (INCHES)

177
Y AXIS TRAVEL (INCHES)

23
Z AXIS TRAVEL (INCHES)

18
TABLE SIZE (INCHES)

177 x 23
SPINDLE TAPER

CAT40 (BIG PLUS)
SPINDLE SPEED

12,000 RPM
SPINDLE HP

15 HP
MAGAZINE CAPACITY

30

VTC-100/160 - Quote

Your Dealer:

Specifications

TABLE SIZE

393.7''
MAX SWING/MAX TURNING DIAMETER

629.9''
MAX TURNING HEIGHT

236.2''
MAX LOAD

992080 LBS
TABLE SPEED

15 RPM
TABLE HP

355 HP
MACHINE WEIGHT

1543000 LBS

VTC-25/40 - Quote

Your Dealer:

Specifications

TABLE SIZE

98.4''
MAX SWING/MAX TURNING DIAMETER

157.5''
MAX TURING HEIGHT

78.7'' (98'')
MAX LOAD

44000 LBS
TABLE SPEED

130 RPM
TABLE HP

60/75 HP
MACHINE WEIGHT

151800 LBS

SMART SM40-6500 - Quote

Your Dealer:

Specifications

X AXIS TRAVEL (INCHES)

256
Y AXIS TRAVEL (INCHES)

23
Z AXIS TRAVEL (INCHES)

18
TABLE SIZE (INCHES)

256 x 23
SPINDLE TAPER

CAT40 (BIG PLUS)
SPINDLE SPEED

12,000 RPM
SPINDLE HP

15 HP
MAGAZINE CAPACITY

30

SMART SM40-8500 - Quote

Your Dealer:

Specifications

X AXIS TRAVEL (INCHES)

335
Y AXIS TRAVEL (INCHES)

23
Z AXIS TRAVEL (INCHES)

18
TABLE SIZE (INCHES)

335 x 23
SPINDLE TAPER

CAT40 (BIG PLUS)
SPINDLE SPEED

12,000 RPM
SPINDLE HP

15 HP
MAGAZINE CAPACITY

30

Coming Soon - Quote

Your Dealer:

Specifications

Coming Soon

0

SM30 & SM40 Brochure - Quote

Your Dealer:

Specifications

NX Series Brochure - Quote

Your Dealer:

Specifications

NL Series Brochure - Quote

Your Dealer:

Specifications

NL Flyer - Quote

Your Dealer:

Specifications

General Line-Up Brochure - Quote

Your Dealer:

Specifications

SMART Korea General Lineup Brochure - Quote

Your Dealer:

Specifications

VTC-80/100 - Quote

Your Dealer:

Specifications

TABLE SIZE

314.9''
MAX SWING/MAX TURNING DIAMETER

393.7''
MAX TURNING HEIGHT

236.2''
MAX LOAD

771618 LBS
TABLE SPEED

20 RPM
TABLE HP

355 HP
MACHINE WEIGHT

146400 LBS

VTC-60/70 - Quote

Your Dealer:

Specifications

TABLE SIZE

236.2''
MAX SWING/MAX TURNING DIAMETER

275.6''
MAX TURNING HEIGHT

137.8''
MAX LOAD

330690 LBS
TABLE SPEED

40 RPM
TABLE HP

255 HP
MACHINE WEIGHT

643700 LBS

VTC-40/50 - Quote

Your Dealer:

Specifications

TABLE SIZE

157.5''
MAX SWING/MAX TURNING DIAMETER

196.9''
MAX TURNING HEIGHT

98.4''
MAX LOAD

110230 LBS
TABLE SPEED

50 RPM
TABLE HP

134 HP
MACHINE WEIGHT

321200 LBS

VTC-28/30 - Quote

Your Dealer:

Specifications

TABLE SIZE

98'' (110'')
MAX SWING/MAX TURNING DIAMETER

118''
MAX TURNING HEIGHT

78''
MAX LOAD

44000 LBS
TABLE SPEED

130 RPM
TABLE HP

50/75 HP
MACHINE WEIGHT

132000 LBS

VTC-12/16R - Quote

Your Dealer:

Specifications

TABLE SIZE

47.2''
MAX SWING/MAX TURNING DIAMETER

63''
MAX TURNING HEIGHT

47.2''
MAX LOAD

14400 LBS
TABLE SPEED

330 RPM
TABLE HP

40/50 HP
MACHINE WEIGHT

44092 LBS

HB-150LHX - Quote

Your Dealer:

Specifications

SPINDLE DIAMETER

5.9''
X-TRAVELS

196.8'' (236.2'')
Y-TRAVELS

137.8''
Z-TRAVELS

78.7''
W-TRAVELS

39.4''
ROTARY TABLE SIZE

98.4'' X 118.1''
MAX TABLE LOAD

77000 LBS
MACHINE WEIGHT

187392 LBS

VTC-50/60 - Quote

Your Dealer:

Specifications

TABLE SIZE

196.9''
MAX SWING/MAX TURNING DIAMETER

236.2''
MAX TURNING HEIGHT

118.1''
MAX LOAD

132280 LBS
TABLE SPEED

50 RPM
TABLE HP

208 HP
MACHINE WEIGHT

462000 LBS

HB-150X - Quote

Your Dealer:

Specifications

SPINDLE DIAMETER

5.9''
X-TRAVELS

157''
Y-TRAVELS

98''
Z-TRAVELS

78''
W-TRAVELS

27.6''
ROTARY TABLE SIZE

78.7'' X 86.6''
MAX TABLE LOAD

44000 LBS
MACHINE WEIGHT

104256 LBS

VTC-30/40 - Quote

Your Dealer:

Specifications

TABLE SIZE

118.1''
MAX SWING/MAX TURNING DIAMETER

157.5''
MAX TURNING HEIGHT

86'' (98'')
MAX LOAD

66000 LBS
TABLE SPEED

100 RPM
TABLE HP

80/100 HP
MACHINE WEIGHT

187000 LBS

HB-130X - Quote

Your Dealer:

Specifications

SPINDLE DIAMETER

5.1''
X-TRAVELS

157''
Y-TRAVELS

98''
Z-TRAVELS

63''
W-TRAVELS

27.55''
ROTARY TABLE SIZE

78.7'' X 86.6''
MAX TABLE LOAD

44000 LBS
MACHINE WEIGHT

94975 LBS

NT-10/12 F - Quote

Your Dealer:

Specifications

TABLE SIZE

39.4''
MAX SWING/MAX TURNING DIAMETER

49.2''
MAX TURNING HEIGHT

31.5''
MAX LOAD

9920 LBS
TABLE SPEED

450 RPM
TABLE HP

40/50 HP
MACHINE WEIGHT

37478 LBS

HB-130S - Quote

Your Dealer:

Specifications

SPINDLE DIAMETER

5.1''
X-TRAVELS

59.1'' (78.7'')
Y-TRAVELS

59''
Z-TRAVELS

51.2''
W-TRAVELS

27.56''
ROTARY TABLE SIZE

55'' x 63''
MAX TABLE LOAD

15400 LBS
MACHINE WEIGHT

55113 LBS (57143 LBS)

HB-150 - Quote

Your Dealer:

Specifications

SPINDLE DIAMETER

5.9''
X-TRAVELS

118.1''
Y-TRAVELS

90.6''
Z-TRAVELS

63.0''
W-TRAVELS

27.6''
ROTARY TABLE SIZE

78.7'' X 86.6''
MAX TABLE LOAD

44000 LBS
MACHINE WEIGHT

95349 LBS

HB-110M - Quote

Your Dealer:

Specifications

SPINDLE DIAMETER

4.3''
X-TRAVELS

62.9''
Y-TRAVELS

59''
Z-TRAVELS

39.3''
W-TRAVELS

13.7''
ROTARY TABLE SIZE

39.3'' X 43.3''
MAX TABLE LOAD

6613 LBS
MACHINE WEIGHT

44092 LBS

HB-130CX - Quote

Your Dealer:

Specifications

SPINDLE DIAMETER

5.1''
X-TRAVELS

157.5''
Y-TRAVELS

90.6''
Z-TRAVELS

51.1''
W-TRAVELS

27.56''
ROTATRY TABLE SIZE

63.0'' X 157.5''
MAX TABLE LOAD

44000 LBS
MACHINE WEIGHT

111686 LBS

HB-130C - Quote

Your Dealer:

Specifications

SPINDLE DIAMETER

5.1''
X-TRAVELS

118.1''
Y-TRAVELS

78.7''
Z-TRAVELS

51.2''
W-TRAVELS

27.5''
ROTARY TABLE SIZE

55.1'' X 55.1''
MAX TABLE LOAD

15400 LBS
MACHINE WEIGHT

90389 LBS

VTC-16/20R - Quote

Your Dealer:

Specifications

TABLE SIZE

63''
MAX SWING/MAX TURNING DIAMETER

78.7''
MAX TURNING HEIGHT

63''
MAX LOAD

17600 LBS
TABLE SPEED

250 RPM
TABLE HP

50/60 HP
MACHINE WEIGHT

56000 LBS

HB-150LH - Quote

Your Dealer:

Specifications

SPINDLE DIAMETER

5.9''
X-TRAVELS

157''
Y-TRAVELS

98''
Z-TRAVELS

63''
W-TRAVELS

39''
ROTARY TABLE SIZE

78.7'' X 86.6''
MAX TABLE LOAD

44000 LBS
MACHINE WEIGHT

104256 LBS

HB-130 - Quote

Your Dealer:

Specifications

SPINDLE DIAMETER

5.1''
X-TRAVELS

118.1''
Y-TRAVELS

90''
Z-TRAVELS

51.2''
W-TRAVELS

27.56''
ROTARY TABLE SIZE

63'' X 70.9''
TABLE LOAD

26400 LBS
MACHINE WEIGHT

86906 LBS

SMART MINI – LINEAR WAY – (CAT40, 12K)

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$39,900
* Call Sales for Term & Conditions.

WSX-TEST

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

SM 1050, 1370, 1570 Linear Guideway Series Brochure

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

High Speed Tapping and Machining Centers Brochure

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

SM 1100, 1370, 1682, 2082, 2110 Box Way Series Brochure

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

SV Series Brochure

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

SW 216 – BRIDGE TYPE – (CAT50, 6K)

Selected Options

Machine Options
Z Axis Travel 42”$24,900
Manual Angular Head (HF-M90L) 2000RPM$13,859
HF-SU360L Semi-Automatic Universal Head 5 Degree 2500RPM$42,800
HF-ME35L Manual Extension Head 350mmL 4000RPM$14,800
HF-S90L Semi-Automatic 90 Degree Head 5 Degree Indexing 2000RPM$36,800
Arm Seat for Head$8,900
Renishaw Tools Probe TS-27R$6,900
Renishaw Workpiece Probe RMP-60$18,900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$419,900
* Call Sales for Term & Conditions.

SMART SM 1682-50 – BOX WAY – (CAT50, 6K)

Selected Options

Machine Options
Lift Up Chip Conveyor$6,950
Air Thru Spindle$1,450
Coolant/Air Gun$950
BT50 Gripper$2,500
DDS 12,000 RPM 25 HP$16,900
Renishaw CAT40/50 OMP60 Spindle Probe - CAT40/50 Shank OMP60 + OMP60 Probe Kit (MOD TX/OPT-OFF)$4,500
Renishaw OTS AA Optical Tool Setter$2,400
Manual Guide i Training $2,000
3 Color Tower Light$450
60 ATC$5,900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$239,900
* Call Sales for Term & Conditions.

SMART SM 1370-50 – BOX WAY – (CAT50, 6K)

Selected Options

Machine Options
Lift Up Chip Conveyor$6,950
Air Thru Spindle$1,450
Coolant/Air Gun$950
BT50 Gripper$2,500
DDS 12,000 RPM 25/20 HP (Factory Order)$16,900
Renishaw CAT40/50 OMP60 Spindle Probe - CAT40/50 Shank OMP60 + OMP60 Probe Kit (MOD TX/OPT-OFF)$4,500
Renishaw OTS AA Optical Tool Setter$2,400
Manual Guide i Training $2,000
3 Color Tower Light$450
32 Tool ATC$1,900
40 Tool ATC$8,000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$189,900
* Call Sales for Term & Conditions.

SMART NV 5500L – LINEAR WAY – (CAT40, 12K)

Selected Options

Machine Options
Lift Up Chip Conveyor$8,900
Air Thru Spindle$1,450
Coolant/Air Gun$950
BT40 Gripper$2,000
Renishaw CAT40/50 OMP60 Spindle Probe - CAT40/50 Shank OMP60 + OMP60 Probe Kit (MOD TX/OPT-OFF)$4,500
Renishaw OTS AA Optical Tool Setter$2,400
Manual Guide i Training $2,000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$119,900
* Call Sales for Term & Conditions.

SMART KT 360D – LINEAR WAY – (BT30, 15K)

Selected Options

Machine Options
Lift Up Chip Conveyor$6,950
290 PSI Thru Spindle$5,900
Coolant/Air Gun$950
Fanuc OiMF-P$4,000
21 Tools$2,000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$79,900
* Call Sales for Term & Conditions.

SMART KM 430 – CROSS ROLLER WAY – (BT40, 12K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6,900
Fanuc OiMF-P$4,000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$99,900
* Call Sales for Term & Conditions.

SMART KM 500 – CROSS ROLLER WAY – (BT30, 12K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6,900
Fanuc OiMF-P$4,000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$119,900
* Call Sales for Term & Conditions.

SMART KT 420 – CROSS ROLLER WAY – (BT30, 15K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6,900
Fanuc OiMF-P$4,000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$74,900
* Call Sales for Term & Conditions.

SMART KT 420A – CROSS ROLLER WAY – (BT30, 15K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6,900
Fanuc OiMF-P$4,000
24,000 RPM, 25/5 HP$6,000
26 Tools$1,500

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$75,900
* Call Sales for Term & Conditions.

SMART KT 420L – CROSS ROLLER WAY – (BT30, 15K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6,900
Fanuc OiMF-P$4,000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$78,900
* Call Sales for Term & Conditions.

SMART KT 420AL – CROSS ROLLER WAY – (BT30, 15K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6,900
Fanuc OiMF-P$4,000
24,000 RPM, 25/5 HP$6,000
26 Tools$1,500

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$69,900
* Call Sales for Term & Conditions.

SMART KT 420DH – CROSS ROLLER WAY – (BT30, 15K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6,900
Fanuc OiMF-P$4,000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$159,900
* Call Sales for Term & Conditions.

SMART KT 450DH – CROSS ROLLER WAY – (CAT40, 12K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6,900
Fanuc OiMF-P$4,000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$179,900
* Call Sales for Term & Conditions.

SMART KT 500 – CROSS ROLLER WAY – (BT30, 15K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6,900
Fanuc OiMF-P$4,000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$99,900
* Call Sales for Term & Conditions.

SMART KT 700 – CROSS ROLLER WAY – (BT30, 15K)

Selected Options

Machine Options
High Speed Machining, 200 Look Ahead$995
290 PSI Thru Spindle (Factory Order)$6,900
Fanuc OiMF-P$4,000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$109,900
* Call Sales for Term & Conditions.

SMART KM 450D – LINEAR WAY – (CAT40, 12K)

Selected Options

Machine Options
Lift Up Chip Conveyor$6,950
290 PSI Thru Spindle$5,900
Coolant/Air Gun$950
Fanuc OIMF-P$4,000

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$119,900
* Call Sales for Term & Conditions.

SMART SM 1100-50 – BOX WAY – (CAT50, 6K)

Selected Options

Machine Options
Lift Up Chip Conveyor$6,950
Air Thru Spindle$1,450
Coolant/Air Gun$950
BT50 Gripper$2,500
DDS 12,000 RPM 25 HP$16,900
Renishaw CAT40/50 OMP60 Spindle Probe - CAT40/50 Shank OMP60 + OMP60 Probe Kit (MOD TX/OPT-OFF)$4,500
Renishaw OTS AA Optical Tool Setter$2,400
Manual Guide i Training $2,000
3 Color Tower Light$450

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$169,900
* Call Sales for Term & Conditions.

SMART SM 1682-50 – BOX WAY – (CAT50, 12K)

Selected Options

Machine Options
Lift Up Chip Conveyor$6,950
Air Thru Spindle$1,450
Coolant/Air Gun$950
BT50 Gripper$2,500
Renishaw CAT40/50 OMP60 Spindle Probe - CAT40/50 Shank OMP60 + OMP60 Probe Kit (MOD TX/OPT-OFF)$4,500
Renishaw OTS AA Optical Tool Setter$2,400
Manual Guide i Training $2,000
3 Color Tower Light$450
60 ATC$5,900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$281,800
* Call Sales for Term & Conditions.

SMART SM 2082-50 – BOX WAY – (CAT50, 6K)

Selected Options

Machine Options
Lift Up Chip Conveyor$6,950
Air Thru Spindle$1,450
Coolant/Air Gun$950
BT50 Gripper$2,500
DDS 12,000 RPM 25 HP$16,900
Renishaw CAT40/50 OMP60 Spindle Probe - CAT40/50 Shank OMP60 + OMP60 Probe Kit (MOD TX/OPT-OFF)$4,500
Renishaw OTS AA Optical Tool Setter$2,400
Manual Guide i Training $2,000
3 Color Tower Light$450
60 ATC$5,900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$259,900
* Call Sales for Term & Conditions.

SMART SM 2110-50 – BOX WAY – (CAT50, 6K)

Selected Options

Machine Options
Lift Up Chip Conveyor$6,950
Air Thru Spindle$1,450
Coolant/Air Gun$950
BT50 Gripper$2,500
DDS 12,000 RPM 25 HP$16,900
Renishaw CAT40/50 OMP60 Spindle Probe - CAT40/50 Shank OMP60 + OMP60 Probe Kit (MOD TX/OPT-OFF)$4,500
Renishaw OTS AA Optical Tool Setter$2,400
Manual Guide i Training $2,000
3 Color Tower Light$450
60 ATC$5,900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$349,900
* Call Sales for Term & Conditions.

HSA 2212 – BRIDGE TYPE – (CAT50, 6K/12K)

Selected Options

Machine Options
CTS 70 Bar (1000psi) with Water Cart (145.3 Gal)$24,800
AICC 2 (_400 Blocks)$5,970
Direct Drive Spindle 12000RPM_αiIT 22*26KW [34.87HP]$14,062
Oil Skimmer$2,600
Renishaw Tools Probe TS-27R$6,900
Renishaw Workpiece Probe RMP 60$18,900
Renishaw CAT40/50 OMP60 spindle probe CAT40/50 Shank OMP60 + OMP60 probe kit (MOD TX/OPT-OFF)$4,500
Renishaw OTS AA optical tool setter$2,400
Manual 90 Degree Head HF-M90L 2000RPM$12,800
Manual Universal Head HF-MU360L 2500RPM$19,800
Swivel Arm$8,900
ATC 60 Tools (from 40 Tools Upgrade 60 Tools)$14,700
Data Server 1GB$3,950

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$399,900
* Call Sales for Term & Conditions.

HSA 3212 – BRIDGE TYPE – (CAT50, 6K)

Selected Options

Machine Options
CTS 70 Bar (1000psi) with Water Cart (145.3 Gal)$24,800
AICC 2 (_400 Blocks)$5,970
Direct Drive Spindle 12000RPM_αiIT 22*26KW [34.87HP]$14,062
Oil Skimmer$2,600
Renishaw Tools Probe TS-27R$6,900
Renishaw Workpiece Probe RMP 60$18,900
Renishaw CAT40/50 OMP60 spindle probe CAT40/50 Shank OMP60 + OMP60 probe kit (MOD TX/OPT-OFF)$4,500
Renishaw OTS AA optical tool setter$2,400
Manual 90 Degree Head HF-M90L 2000RPM$12,800
Manual Universal Head HF-MU360L 2500RPM$19,800
Swivel Arm$8,900
ATC 60 Tools (from 40 Tools Upgrade 60 Tools)$14,700
Data Server 1GB$3,950

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$439,900
* Call Sales for Term & Conditions.

HSA 2212 – BRIDGE TYPE – (CAT40, 12K)

Selected Options

Machine Options
CTS 70 Bar (1000psi) with Water Cart (145.3 Gal)$24,800
AICC 2 (_400 Blocks)$5,970
Oil Skimmer$2,600
Renishaw Tools Probe TS-27R$6,900
Renishaw Workpiece Probe RMP 60$18,900
Renishaw OTS AA optical tool setter$4,500
Renishaw OTS AA optical tool setter$2,400
Manual 90 Degree Head HF-M90L 2000RPM$12,800
Manual Universal Head HF-MU360L 2500RPM$19,800
Swivel Arm$8,900
ATC 60 Tools (from 40 Tools Upgrade 60 Tools)$14,700
Data Server 1GB$3,950

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$399,900
* Call Sales for Term & Conditions.

HSA 320EAY – 5-SIDED BRIDGE TYPE – (CAT50, 6K/10K)

Selected Options

Machine Options
Tool ARM Type Tool Magazine_90 pcs$92,123
Tool ARM Type Tool Magazine (Vertical/Horizontal)_62 pcs$39,955
Gear Spindle 6000RPM$22,847
Coolant Through Spindle_70BAR (1015.24PSI) With Secondary Tank$18,602
Automatic Mutiangular Milling Head_HF-AU360H, 1deg./div., 4000RPM, CTS$118,989
Automatic Mutiangular Milling Head_HF-AU360H, 2.5deg./div., 4000RPM, CTS $112,352
Automatic Extend Head_HF-AE50L*4000RPM, 500mmL (19.69"L)$27,579
Automatic Extend Head_HF-AE35L*4000RPM, 350mmL (13.78"L)$23,927
Automatic Angular Head (HF-A90H) 1deg./div., 4000RPM, CTS$70,015
Automatic Angular Head (HF-A90H) 2.5deg./div., 4000RPM, CTS$68,799
Auto Rotary ARM Seat of Angular Head for HF-A90$16,952
Auto Rotary ARM Seat of Angular Head for HF-AU360$16,743
Auto Rotary ARM Seat of Angular Head for HF-AR90$14,627
TS-27R Intelligent Tool Setter (Touch Probe + Tool Database + Alarm Report System + Intelligent Tool Sort)$4,630
Workpiece Measure Probe (Renishaw RMP60)$24,823

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$769,000
* Call Sales for Term & Conditions.

HSA 420EAY – 5-SIDED BRIDGE TYPE – (CAT50, 6K/10K)

Selected Options

Machine Options
Tool ARM Type Tool Magazine_90 pcs$92,123
Tool ARM Type Tool Magazine (Vertical/Horizontal)_62 pcs$39,955
Gear Spindle 6000RPM$22,847
Coolant Through Spindle_70BAR (1015.24PSI) With Secondary Tank$18,602
Automatic Mutiangular Milling Head_HF-AU360H, 1deg./div., 4000RPM, CTS$118,989
Automatic Mutiangular Milling Head_HF-AU360H, 2.5deg./div., 4000RPM, CTS $112,352
Automatic Extend Head_HF-AE50L*4000RPM, 500mmL (19.69"L)$27,579
Automatic Extend Head_HF-AE35L*4000RPM, 350mmL (13.78"L)$23,927
Automatic Angular Head (HF-A90H) 1deg./div., 4000RPM, CTS$70,015
Automatic Angular Head (HF-A90H) 2.5deg./div., 4000RPM, CTS$68,799
Auto Rotary ARM Seat of Angular Head for HF-A90$16,952
Auto Rotary ARM Seat of Angular Head for HF-AU360$16,743
Auto Rotary ARM Seat of Angular Head for HF-AR90$14,627
TS-27R Intelligent Tool Setter (Touch Probe + Tool Database + Alarm Report System + Intelligent Tool Sort)$4,630
Workpiece Measure Probe (Renishaw RMP60)$24,823

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$839,000
* Call Sales for Term & Conditions.

HSA 327EAY – 5-SIDED BRIDGE TYPE – (CAT50, 6K/10K)

Selected Options

Machine Options
Tool ARM Type Tool Magazine_90 pcs$92,123
Tool ARM Type Tool Magazine (Vertical/Horizontal)_62 pcs$39,955
Gear Spindle 6000RPM$22,847
Coolant Through Spindle_70BAR (1015.24PSI) With Secondary Tank$18,602
Automatic Mutiangular Milling Head_HF-AU360H, 1deg./div., 4000RPM, CTS$118,989
Automatic Mutiangular Milling Head_HF-AU360H, 2.5deg./div., 4000RPM, CTS $112,352
Automatic Extend Head_HF-AE50L*4000RPM, 500mmL (19.69"L)$27,579
Automatic Extend Head_HF-AE35L*4000RPM, 350mmL (13.78"L)$23,927
Automatic Angular Head (HF-A90H) 1deg./div., 4000RPM, CTS$70,015
Automatic Angular Head (HF-A90H) 2.5deg./div., 4000RPM, CTS$68,799
Auto Rotary ARM Seat of Angular Head for HF-A90$16,952
Auto Rotary ARM Seat of Angular Head for HF-AU360$16,743
Auto Rotary ARM Seat of Angular Head for HF-AR90$14,627
TS-27R Intelligent Tool Setter (Touch Probe + Tool Database + Alarm Report System + Intelligent Tool Sort)$4,630
Workpiece Measure Probe (Renishaw RMP60)$24,823

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$819,000
* Call Sales for Term & Conditions.

HSA 427EAY – 5-SIDED BRIDGE TYPE – (CAT50, 6K/10K)

Selected Options

Machine Options
Tool ARM Type Tool Magazine_90 pcs$92,123
Tool ARM Type Tool Magazine (Vertical/Horizontal)_62 pcs$39,955
Gear Spindle 6000RPM$22,847
Coolant Through Spindle_70BAR (1015.24PSI) With Secondary Tank$18,602
Automatic Mutiangular Milling Head_HF-AU360H, 1deg./div., 4000RPM, CTS$118,989
Automatic Mutiangular Milling Head_HF-AU360H, 2.5deg./div., 4000RPM, CTS $112,352
Automatic Extend Head_HF-AE50L*4000RPM, 500mmL (19.69"L)$27,579
Automatic Extend Head_HF-AE35L*4000RPM, 350mmL (13.78"L)$23,927
Automatic Angular Head (HF-A90H) 1deg./div., 4000RPM, CTS$70,015
Automatic Angular Head (HF-A90H) 2.5deg./div., 4000RPM, CTS$68,799
Auto Rotary ARM Seat of Angular Head for HF-A90$16,952
Auto Rotary ARM Seat of Angular Head for HF-AU360$16,743
Auto Rotary ARM Seat of Angular Head for HF-AR90$14,627
TS-27R Intelligent Tool Setter (Touch Probe + Tool Database + Alarm Report System + Intelligent Tool Sort)$4,630
Workpiece Measure Probe (Renishaw RMP60)$24,823

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$869,000
* Call Sales for Term & Conditions.

HSA 423 – BRIDGE TYPE – (CAT50, 6K/12K)

Selected Options

Machine Options
CTS 70 Bar (1000psi) with Water Cart (145.3 Gal)$24,800
AICC 2 (_400 Blocks)$5,970
Direct Drive Spindle 12000RPM_αiIT 22*26KW [34.87HP]$14,062
Oil Skimmer$2,600
Renishaw Tools Probe TS-27R$6,900
Renishaw Workpiece Probe RMP 60$18,900
Manual 90 Degree Head HF-M90L 2000RPM$12,800
Manual Universal Head HF-MU360L 2500RPM$19,800
Swivel Arm$8,900
ATC 60 Tools (from 40 Tools Upgrade 60 Tools)$14,700
Data Server 1GB$3,950

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$669,900
* Call Sales for Term & Conditions.

HSA 523 – BRIDGE TYPE – (CAT50, 6K/12K)

Selected Options

Machine Options
CTS 70 Bar (1000psi) with Water Cart (145.3 Gal)$24,800
AICC 2 (_400 Blocks)$5,970
Direct Drive Spindle 12000RPM_αiIT 22*26KW [34.87HP]$14,062
Oil Skimmer$2,600
Renishaw Tools Probe TS-27R$6,900
Renishaw Workpiece Probe RMP 60$18,900
Manual 90 Degree Head HF-M90L 2000RPM$12,800
Manual Universal Head HF-MU360L 2500RPM$19,800
Swivel Arm$8,900
ATC 60 Tools (from 40 Tools Upgrade 60 Tools)$14,700
Data Server 1GB$3,950

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$729,900
* Call Sales for Term & Conditions.

HSA 323 – BRIDGE TYPE – (CAT50, 6K/12K)

Selected Options

Machine Options
CTS 70 Bar (1000psi) with Water Cart (145.3 Gal)$24,800
AICC 2 (_400 Blocks)$5,970
Direct Drive Spindle 12000RPM_αiIT 22*26KW [34.87HP]$14,062
Oil Skimmer$2,600
Renishaw Tools Probe TS-27R$6,900
Renishaw Workpiece Probe RMP 60$18,900
Renishaw CAT40/50 OMP60 spindle probe CAT40/50 Shank OMP60 + OMP60 probe kit (MOD TX/OPT-OFF)$4,500
Renishaw OTS AA optical tool setter$2,400
Manual 90 Degree Head HF-M90L 2000RPM$12,800
Manual Universal Head HF-MU360L 2500RPM$19,800
Swivel Arm$8,900
ATC 60 Tools (from 40 Tools Upgrade 60 Tools)$14,700
Data Server 1GB$3,950

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$599,900
* Call Sales for Term & Conditions.

SW 316 – BRIDGE TYPE – (CAT50, 6K)

Selected Options

Machine Options
Z Axis Travel 42”$24,900
Manual Angular Head (HF-M90L) 2000RPM$13,859
HF-SU360L Semi-Automatic Universal Head 5 Degree 2500RPM$42,800
HF-ME35L Manual Extension Head 350mmL 4000RPM$14,800
HF-S90L Semi-Automatic 90 Degree Head 5 Degree Indexing 2000RPM$36,800
Arm Seat for Head$8,900
Renishaw Tools Probe TS-27R$6,900
Renishaw Workpiece Probe RMP-60$18,900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$339,900
* Call Sales for Term & Conditions.

SW 323 – BRIDGE TYPE – (CAT50, 6K)

Selected Options

Machine Options
Z Axis Travel 42”$24,900
Manual Angular Head (HF-M90L) 2000RPM$13,859
HF-SU360L Semi-Automatic Universal Head 5 Degree 2500RPM$42,800
HF-ME35L Manual Extension Head 350mmL 4000RPM$14,800
HF-S90L Semi-Automatic 90 Degree Head 5 Degree Indexing 2000RPM$36,800
Arm Seat for Head$8,900
Renishaw Tools Probe TS-27R$6,900
Renishaw Workpiece Probe RMP-60$18,900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$529,900
* Call Sales for Term & Conditions.

SW 423 – BRIDGE TYPE – (CAT50, 6K)

Selected Options

Machine Options
Z Axis Travel 42”$24,900
Manual Angular Head (HF-M90L) 2000RPM$13,859
HF-SU360L Semi-Automatic Universal Head 5 Degree 2500RPM$42,800
HF-ME35L Manual Extension Head 350mmL 4000RPM$14,800
HF-S90L Semi-Automatic 90 Degree Head 5 Degree Indexing 2000RPM$36,800
Arm Seat for Head$8,900
Renishaw Tools Probe OS-27R$6,900
Renishaw Workpiece Probe OMP-60$18,900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$599,900
* Call Sales for Term & Conditions.

SW 523 – BRIDGE TYPE – (CAT50, 6K)

Selected Options

Machine Options
Z Axis Travel 42”$24,900
Manual Angular Head (HF-M90L) 2000RPM$13,859
HF-SU360L Semi-Automatic Universal Head 5 Degree 2500RPM$42,800
HF-ME35L Manual Extension Head 350mmL 4000RPM$14,800
HF-S90L Semi-Automatic 90 Degree Head 5 Degree Indexing 2000RPM$36,800
Arm Seat for Head$8,900
Renishaw Tools Probe TS-27R$6,900
Renishaw Workpiece Probe RMP-60$18,900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$649,900
* Call Sales for Term & Conditions.

SW 623 – BRIDGE TYPE – (CAT50, 6K)

Selected Options

Machine Options
Z Axis Travel 42”$24,900
Manual Angular Head (HF-M90L) 2000RPM$13,859
HF-SU360L Semi-Automatic Universal Head 5 Degree 2500RPM$42,800
HF-ME35L Manual Extension Head 350mmL 4000RPM$14,800
HF-S90L Semi-Automatic 90 Degree Head 5 Degree Indexing 2000RPM$36,800
Arm Seat for Head$8,900
Renishaw Tools Probe TS-27R$6,900
Renishaw Workpiece Probe RMP-60$18,900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$699,900
* Call Sales for Term & Conditions.

Kenichi Compact B

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

Kenichi Focus 5

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

Kenichi Linmax B

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

Kenichi Overview

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HNK R Series

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HNK NT & VTC Series

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HNK KTM

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HNK HPM

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HNK HGH-HGG

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HNK HL Series

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HNK HFB Series

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HNK HFB FLYER

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HNK HB Series

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HNK General

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

SXKH

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

SMART NL 2500/750 – BOX WAY – (10″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9,900
Chip Conveyor - Side Discharge $5,950
Auto Part Catcher (retrofitable)$3,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
3 Set of Hard Jaws$500
1 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1")$950
U-Drill Tool Holder (2")$950

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$105,900
* Call Sales for Term & Conditions.

SMART NL 2500SY – BOX WAY – (10″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge $5,950
Auto Part Catcher $3,950
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1")$950
U-Drill Tool Holder (2")$950
X-Axis Live Tool Holder ER-25 (non-coolant thru)$3,100
Z-Axis Live Tool Holder ER-25 (non-coolant thru) $4,900
O.D. Holder (1”)$950
Double O.D. Holder (main/sub)$950
Double O.D. Holder (1/2 index)$950

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$169,900
* Call Sales for Term & Conditions.

SMART SX 4000

Selected Options

Machine Options
Contact Your Distributor for Options.$

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$179,900
* Call Sales for Term & Conditions.

SMART NL 6000M/1500 – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$7,950
Hydraulic Steady Rest Preparation Kit$10,900
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
Boring Bar Holder (3”)$950
O.D. Holder (1-1/4”)$950
X-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru)$5,400
Z-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru)$6,900

Sleeves
Boring Bar Sleeve Set 3”x(5/8”,3/4”,1”,1-1/4”,1-1/2”,2”,2-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$289,800
* Call Sales for Term & Conditions.

SMART NL 6000XLM – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$10,950
Hydraulic Steady Rest Preparation Kit$10,900
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
X-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru)$5,400
Z-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru)$6,900
Boring Bar Holder (3”)$950
O.D. Holder (1-1/4”)$950

Sleeves
Boring Bar Sleeve Set 3”x(5/8”,3/4”,1”,1-1/4”,1-1/2”,2”,2-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$299,900
* Call Sales for Term & Conditions.

SMART NL 6000XXLM – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$10,950
Hydraulic Steady Rest Preparation Kit$10,900
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
X-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru)$5,400
Z-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru)$6,900
Boring Bar Holder (3”)$950
O.D. Holder (1-1/4”)$950

Sleeves
Boring Bar Sleeve Set 3”x(5/8”,3/4”,1”,1-1/4”,1-1/2”,2”,2-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$539,900
* Call Sales for Term & Conditions.

SMART NL 6000CXLM – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$9,950
Hydraulic Steady Rest Preparation Kit$10,900
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
24" Front Mounted 3-Jaw Air Chuck$39,900
24" Rear Mounted 3-Jaw Manual Chuck$14,900

Holders
X-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru) $5,400
Z-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru) $6,900
X-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru) $2,900
Z-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru) $4,600
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
Boring Bar Holder (3”)$950
O.D. Holder (1")$950

Sleeves
Boring Bar Sleeve Set 3”x(5/8”,3/4”,1”,1-1/4”,1-1/2”,2”,2-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$399
* Call Sales for Term & Conditions.

SMART NL 6000LM – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$9,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
Hydraulic Steady Rest Preparation Kit $10,900

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
Boring Bar Holder (3”)$950
O.D. Holder (1-1/4”)$950
X-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru)$5,400
Z-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru)$6,900

Sleeves
Boring Bar Sleeve Set 3”x(5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”,2",2-1/2")$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$249,900
* Call Sales for Term & Conditions.

SMART NL 6000CLM – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$9,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
Hydraulic Steady Rest Preparation Kit $10,900
24" Front Mounted 3-Jaw Air Chuck$39,900
24" Rear Mounted 3-Jaw Manual Chuck$14,900

Holders
X-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru) $5,400
Z-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru) $6,900
X-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru) $2,900
Z-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru) $4,600
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
Boring Bar Holder (3”)$950
O.D. Holder (1")$950

Sleeves
Boring Bar Sleeve Set 3”x(5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”,2",2-1/2")$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$319,900
* Call Sales for Term & Conditions.

SMART NL 6000CM – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$9,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
Hydraulic Steady Rest Preparation Kit $10,900
24" Front Mounted 3-Jaw Air Chuck$39,900
24" Rear Mounted 3-Jaw Manual Chuck$

Holders
Face Tool Holder (1-1/4”)$950
Boring Bar Holder (3”)$950
O.D. Holder (1")$950
U-Drill Tool Holder (3")$950

Sleeves
Boring Bar Sleeve Set 3”x (5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”,2",2-1/2")$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$349,900
* Call Sales for Term & Conditions.

SMART NL 6000SM/750 – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$7,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
Hydraulic Steady Rest Preparation Kit $10,900
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
Boring Bar Holder (3”)$950
X-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru)$2,900
Z-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru)$4,600
X-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru) $5,400
Z-Axis Live Tool Holder BMT85, ER-50 (non-coolant thru) $6,900
O.D. Holder (1")$950

Sleeves
Boring Bar Sleeve Set 3”x(5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”,2",2-1/2")$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$259,800
* Call Sales for Term & Conditions.

SMART NX 7000

Selected Options

Machine Options
Expanded Capacity Automatic Tool Change System - Upcharge 88 Chain type ATC $39,000
Expanded Capacity Automatic Tool Change System - Upcharge 126 Chain type ATC $79,000
Additional Pallet$9,900
Coolant Thru Spindle 870 PSI$10,900
Overhead Shower Coolant System$5,900
Chip Blaster Model JV40 (1000 PSI System) $21,900
Chip Blaster Mist Blaster Mist Collection with HEPA Filter$8,600
Conveyor with Mesh Hinge Belt, Scraper, Turbo Microfine 2$30,900
Conveyor with Magnetic Plate for Filtration System Turbo$34,900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$379,900
* Call Sales for Term & Conditions.

SMART NX 5000

Selected Options

Machine Options
Additional Pallet$8,900
Coolant Thru Spindle 870 PSI$10,900
Overhead Shower Coolant System$5,900
Chip Blaster Model JV40 (1000 PSI System)$21,900
Chip Blaster Mist Blaster Mist Collection with HEPA Filter$8,600
Conveyor with Mesh Hinge Belt, Scraper, Turbo Microfine 2$30,900
Conveyor with Magnetic Plate for Filtration System Turbo$24,900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$299,900
* Call Sales for Term & Conditions.

SMART NL 6000XL – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9,900
Chip Conveyor - Side Discharge$10,950
Hydraulic Steady Rest Preparation Kit$10,900
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
Boring Bar Holder (3”)$950
O.D. Holder (1-1/4”)$950

Sleeves
Boring Bar Sleeve Set 3”x(5/8”,3/4”,1”,1-1/4”,1-1/2”,2”,2-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$369,900
* Call Sales for Term & Conditions.

SMART NL 2000 – BOX WAY – (8″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9,900
Chip Conveyor - Side Discharge$5,950
Auto Door Single - Door Open with Safety Release (retrofitable) (10 Weeks Delivery)$5,400
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1”)$950
U-Drill Tool Holder (2”)$950
Boring Bar Holder (2")$950

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”)$1,800

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$85,900
* Call Sales for Term & Conditions.

SMART NL 1500M – BOX WAY – (6″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$5,950
Auto Door Single - Door Open with Safety Release (retrofitable) (10 Weeks Delivery)$5,400
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1”)$950
U-Drill Tool Holder (2”)$950
Boring Bar Holder (2")$950
X-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru)$2,900
Z-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru)$4,600
O.D. Holder (1")$950

Sleeves
Boring Bar Sleeve Set 1.5”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”)$1,800

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$95,800
* Call Sales for Term & Conditions.

SMART NL 1500 – BOX WAY – (6″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9,900
Chip Conveyor - Side Discharge$5,950
Auto Door Single - Door Open with Safety Release (retrofitable) (10 Weeks Delivery)$5,400
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1”)$950
U-Drill Tool Holder (2”)$950
Boring Bar Holder (2")$950

Sleeves
Boring Bar Sleeve Set 1.5”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”)$1,800

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$85,900
* Call Sales for Term & Conditions.

SMART NL 150 – BOX WAY – (6″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$5,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
Manual Guide i$2,000
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450
Parts Catcher$3,950
Tool Setter$3,950
Oil Skimmer$1,500

Holders
Face Tool Holder (1”)$950
U-Drill Tool Holder (2”)$950
Boring Bar Holder (2”)$950

Sleeves
Boring Bar Sleeve Set 1.5”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”)$1,800

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$72,900
* Call Sales for Term & Conditions.

SMART NL 2000BSY – BOX WAY – (8″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$5,950
Internal Parts Catcher / Parts Conveyor$5,950
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Hard Jaws$300
3 Color Tower Light$450

Holders
X-Axis Live Tool Holder ER-25 (non-coolant thru)$2,900
Z-Axis Live Tool Holder ER-25 (non-coolant thru)$4,600
Face Tool Holder (1”)$950
O.D. Holder (1”)$950
U-Drill Tool Holder (1-1/2”)$950
Boring Bar Holder (1-1/2")$

Sleeves
Boring Bar Sleeve Set 1-1/2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”)$1,800

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$159,900
* Call Sales for Term & Conditions.

SMART NL 5000LY – BOX WAY – (21″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$9,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
Hydraulic Steady Rest Preparation Kit $10,900

Holders
X-Axis Live Tool Holder BMT75, ER-32 (non-coolant thru)$4,200
Z-Axis Live Tool Holder BMT75, ER-32 (non-coolant thru)$5,900
Face Tool Holder (1-1/4”)$950
O.D. Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2", 2"))$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$259,900
* Call Sales for Term & Conditions.

SMART NL 4000LY – BOX WAY – (18″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$9,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
Hydraulic Steady Rest Preparation Kit $10,900

Holders
X-Axis Live Tool Holder BMT75, ER-32 (non-coolant thru)$4,200
Z-Axis Live Tool Holder BMT75, ER-32 (non-coolant thru)$5,900
Face Tool Holder (1-1/4”)$950
O.D. Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2", 2"))$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$289,900
* Call Sales for Term & Conditions.

SMART NL 3500BY – BOX WAY – (15″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$9,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
Hydraulic Steady Rest Preparation Kit $10,900

Holders
X-Axis Live Tool Holder BMT75, ER-32 (non-coolant thru)$4,200
Z-Axis Live Tool Holder BMT75, ER-32 (non-coolant thru)$5,900
Face Tool Holder (1-1/4”)$950
O.D. Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2", 2"))$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$209,900
* Call Sales for Term & Conditions.

SMART NL 2000ASY – BOX WAY – (6″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$5,950
Internal Parts Catcher / Parts Conveyor$5,950
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Hard Jaws$300
3 Color Tower Light$450

Holders
X-Axis Live Tool Holder ER-25 (non-coolant thru)$2,900
Z-Axis Live Tool Holder ER-25 (non-coolant thru)$4,600
Face Tool Holder (1”)$950
O.D. Holder (1”)$950
U-Drill Tool Holder (1-1/2”)$950
Boring Bar Holder (1-1/2")$950

Sleeves
Boring Bar Sleeve Set 1-1/2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”)$1,800

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$155,900
* Call Sales for Term & Conditions.

SMART NL 2000M – BOX WAY – (8″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$5,950
Auto Door Single - Door Open with Safety Release (retrofitable) (10 Weeks Delivery)$5,400
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
X-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru)$2,900
Z-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru) $4,600
Face Tool Holder (1”)$950
U-Drill Tool Holder (1.5”)$950
O.D. Holder (1”)$950
Boring Bar Holder (1.5”)$950

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”)$1,800

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$89,800
* Call Sales for Term & Conditions.

SMART NL 2000BM – BOX WAY – (10″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$5,950
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
X-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru)$2,900
Z-Axis Live Tool Holder BMT55, ER-25 (non-coolant thru) $4,600
Face Tool Holder (1”)$950
U-Drill Tool Holder (2”)$950
O.D. Holder (1”)$950
Boring Bar Holder (2”)$950

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”)$1,800

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$99,800
* Call Sales for Term & Conditions.

SMART SM30-2500

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$179,900
* Call Sales for Term & Conditions.

SMART SV 2 – LINEAR WAY – (CAT40, 12K)

Selected Options

Machine Options
290 PSI Coolant Thru Spindle $3,900
Renishaw Receiver and GUI Software$3,000
Renishaw Probe and Tool Setter (when purchased with machine)$1,995
CTS Preparation$1,900
4 Axis Preparation$1,950
High Speed Machining, 200 Look Ahead$995
Coolant/Air Gun$950

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$74,900
* Call Sales for Term & Conditions.

SMART SV 1 – LINEAR WAY – (CAT40, 8K)

Selected Options

Machine Options
290 PSI Coolant Thru Spindle $2,900
10,000 RPM with Spindle Oil Coolant$3,500
Auger for Chip Removal$2,900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$64,900
* Call Sales for Term & Conditions.

SMART SV 4 – LINEAR WAY – (CAT40, 12K)

Selected Options

Machine Options
290 PSI Coolant Thru Spindle$2,900
Renishaw Receiver and GUI Software$3,000
Renishaw Probe and Tool Setter (when purchased with machine)$1,995
CTS Preparation$1,900
4 Axis Preparation$1,950
High Speed Machining, 200 Look Ahead$995
Coolant/Air Gun$950

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$94,900
* Call Sales for Term & Conditions.

SMART SV 3 – LINEAR WAY – (CAT40, 12K)

Selected Options

Machine Options
290 PSI Coolant Thru Spindle$2,900
Renishaw Receiver and GUI Software$3,000
Renishaw Probe and Tool Setter (when purchased with machine)$1,995
CTS Preparation$1,900
4 Axis Preparation$1,950
High Speed Machining, 200 Look Ahead$995
Coolant/Air Gun$950

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$84,900
* Call Sales for Term & Conditions.

SMART SV 5 – LINEAR WAY – (CAT40, 12K)

Selected Options

Machine Options
Renishaw Probe and Tool Setter (when purchased with machine)$1,995
290 PSI Coolant Thru Spindle$2,900

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$114,900
* Call Sales for Term & Conditions.

SMART SM30-4500

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$249,900
* Call Sales for Term & Conditions.

SMART SM30-6500

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$279,900
* Call Sales for Term & Conditions.

SMART NL 2500M/750 – BOX WAY – (10″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge$5,950
Auto Part Catcher (Retrofitable)$3,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
X-Axis Live Tool Holder BMT65, ER-32 (non-coolant thru)$3,100
Z-Axis Live Tool Holder BMT65, ER-32 (non-coolant thru)$4,900
Face Tool Holder (1")$950
O.D. Holder (1”)$950
U-Drill Tool Holder (2")$950
Boring Bar Holder (2”)$950

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$115,800
* Call Sales for Term & Conditions.

SMART NL 3000BLM – BOX WAY – (12″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge $6,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
3 Set of Hard Jaws$500
1 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1")$950
U-Drill Tool Holder (2")$950
X-Axis Live Tool Holder BMT65, ER-32 (non-coolant thru)$3,100
Z-Axis Live Tool Holder BMT65, ER-32 (non-coolant thru)$4,900
O.D. Holder (1”)$950
Boring Bar Holder (2”)$950

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$139,900
* Call Sales for Term & Conditions.

SMART NL 3000BM – BOX WAY – (12″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge $6,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1")$950
U-Drill Tool Holder (2")$950
Boring Bar Holder (2”)$950
O.D. Holder (1”) $950
X-Axis Live Tool Holder BMT65, ER-32 (non-coolant thru) $3,100
Z-Axis Live Tool Holder BMT65, ER-32 (non-coolant thru) $4,900

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$141,800
* Call Sales for Term & Conditions.

SMART NL 3000BL – BOX WAY – (12″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9,900
Chip Conveyor - Side Discharge $6,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
3 Set of Hard Jaws$500
1 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1")$950
U-Drill Tool Holder (2")$950
Boring Bar Holder (2”)$950
X-Axis Live Tool Holder BMT65, ER-32 (non-coolant thru) $2,100
Z-Axis Live Tool Holder BMT65, ER-32 (non-coolant thru) $3,900

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$139,900
* Call Sales for Term & Conditions.

SMART NL 3000B – BOX WAY – (12″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$10,000
Chip Conveyor - Side Discharge $6,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1")$950
U-Drill Tool Holder (2")$950
Boring Bar Holder (2”)$950

Sleeves
Boring Bar Sleeve Set 2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$131,900
* Call Sales for Term & Conditions.

SMART NL 4000 – BOX WAY – (18″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9,900
Chip Conveyor - Side Discharge $7,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950
Boring Bar Holder (2-1/2”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$189,900
* Call Sales for Term & Conditions.

SMART NL 4000L – BOX WAY

Selected Options

Machine Options
Milling/Live Tool Turret$9,900
Chip Conveyor - Side Discharge $7,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950
Boring Bar Holder (2-1/2”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$215,900
* Call Sales for Term & Conditions.

SMART NL 5000M – BOX WAY – (21″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge $7,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950
X-Axis Live Tool Holder BMT75, ER-40 (non-coolant thru)$4,200
Z-Axis Live Tool Holder BMT75, ER-40 (non-coolant thru)$5,900
Boring Bar Holder (2-1/2”)$950
O.D. Holder (1-1/4”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$229,800
* Call Sales for Term & Conditions.

SMART NL 4000M – BOX WAY – (18″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge $7,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950
X-Axis Live Tool Holder BMT75, ER-40 (non-coolant thru)$4,200
Z-Axis Live Tool Holder BMT75, ER-40 (non-coolant thru)$5,900
Boring Bar Holder (2-1/2”)$950
O.D. Holder (1-1/4”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$179,800
* Call Sales for Term & Conditions.

SMART NL 4000LM – BOX WAY (18″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge $7,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950
X-Axis Live Tool Holder BMT75, ER-40 (non-coolant thru)$4,200
Z-Axis Live Tool Holder BMT75, ER-40 (non-coolant thru)$5,900
Boring Bar Holder (2-1/2”)$950
O.D. Holder (1-1/4”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(3/8’”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$225,800
* Call Sales for Term & Conditions.

SMART NL 5000LM – BOX WAY – (21″ CHUCK)

Selected Options

Machine Options
Chip Conveyor - Side Discharge $9,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
Hydraulic Steady Rest Preparation Kit$10,900

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950
X-Axis Live Tool Holder BMT75, ER-40 (non-coolant thru)$4,200
Z-Axis Live Tool Holder BMT75, ER-40 (non-coolant thru)$5,900
Boring Bar Holder (2-1/2”)$950
O.D. Holder (1-1/4”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$199,900
* Call Sales for Term & Conditions.

SMART NL 5000 – BOX WAY – (21″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9,900
Chip Conveyor - Side Discharge $7,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950
Boring Bar Holder (2-1/2”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$219,900
* Call Sales for Term & Conditions.

SMART NL 5000L – BOX WAY – (21″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9,900
Chip Conveyor - Side Discharge $9,950
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
Hydraulic Steady Rest Preparation Kit$10,900
3 Set of Hard Jaws$500
1 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (2-1/2”)$950
Boring Bar Holder (2-1/2”)$950

Sleeves
Boring Bar Sleeve Set 2-1/2”x(1/2”, 5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$249,900
* Call Sales for Term & Conditions.

SMART NL 6000L – BOX WAY – (24″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9,900
Chip Conveyor - Side Discharge 2200$9,950
Hydraulic Steady Rest Preparation Kit$10,900
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
3 Set of Hard Jaws$500
1 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
Boring Bar Holder (3”)$950

Sleeves
Boring Bar Sleeve Set 3”x(5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$309,900
* Call Sales for Term & Conditions.

SMART NL 6000S/750 – BOX WAY (24″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9,900
Chip Conveyor - Side Discharge$7,950
Hydraulic Steady Rest Preparation Kit$10,900
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
Boring Bar Holder (3”)$950

Sleeves
Boring Bar Sleeve Set 3”x(5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$249,900
* Call Sales for Term & Conditions.

SMART NL 6000/1500 – BOX WAY (24″ CHUCK)

Selected Options

Machine Options
Milling/Live Tool Turret$9,900
Chip Conveyor - Side Discharge 2200$7,950
Hydraulic Steady Rest Preparation Kit$10,900
140 PSI Coolant Pump, Replaces Standard Pump$1,450
290 PSI Coolant Pump, Replaces Standard Pump$3,600
Manual Guide i Training$2,000
1 Set of Hard Jaws$500
3 Set of Soft Jaws$300
3 Color Tower Light$450

Holders
Face Tool Holder (1-1/4”)$950
U-Drill Tool Holder (3”)$950
Boring Bar Holder (3”)$950

Sleeves
Boring Bar Sleeve Set 3”x(5/8”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”)$2,100

Drill Sockets

Back Plate
Block, Clamp & Wedge$350

Total Price:$279,900
* Call Sales for Term & Conditions.

VTC-20/25

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

SMART SM40-4500

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

VTC-100/160

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

VTC-25/40

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

SMART SM40-6500

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

SMART SM40-8500

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

Coming Soon

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

SM30 & SM40 Brochure

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

NX Series Brochure

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

NL Series Brochure

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

NL Flyer

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

General Line-Up Brochure

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

SMART Korea General Lineup Brochure

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

VTC-80/100

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

VTC-60/70

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

VTC-40/50

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

VTC-28/30

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

VTC-12/16R

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HB-150LHX

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

VTC-50/60

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HB-150X

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

VTC-30/40

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HB-130X

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

NT-10/12 F

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HB-130S

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HB-150

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HB-110M

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HB-130CX

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HB-130C

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

VTC-16/20R

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HB-150LH

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

HB-130

Selected Options

Machine Options

Holders

Sleeves

Drill Sockets

Back Plate

Total Price:$
* Call Sales for Term & Conditions.

Your Dealer:
