Product Image

SMART NL 2000M – BOX WAY – (8″ CHUCK)

Swing Over Bed

22.44
Max Turning Diameter

15.0
Max Turning Length

21.26
Chuck

8
Spindle Nose

A2-6
Spindle Motor

20/25 hp
Spindle Speed

4,500 rpm
Bar Capacity

2.56

Product Image

SMART NL 3000BLM – BOX WAY – (12″ CHUCK)

Swing Over Bed

27.56
Max Turning Diameter

17.72
Max Turning Length

41.34
Chuck

12
Spindle Nose

A2-11
Spindle Motor

29.5/47 hp
Spindle Speed

2,800 rpm
Bar Capacity

4.02

Product Image

SMART NL 4000M – BOX WAY – (18″ CHUCK)

Swing Over Bed

31.10
Max Turning Diameter

22.05
Max Turning Length

45.08
Chuck

18
Spindle Nose

A2-11
Spindle Motor

40 / 60 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.59

Product Image

SMART NL 5000LM – BOX WAY – (21″ CHUCK)

Swing Over Bed

35.43
Max Turning Diameter

22.05
Max Turning Length

83.43
Chuck

21
Spindle Nose

A2-15
Spindle Motor

40/60 hp
Spindle Speed

1,500 rpm
Bar Capacity

6.56

Product Image

SMART NL 6000LM – BOX WAY – (24″ CHUCK)

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

86.61
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

Product Image

SMART NL 6000XLM – BOX WAY – (24″ CHUCK)

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

125.98
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

Product Image

SMART NL 6000CLM – BOX WAY – (24″ CHUCK)

Swing Over Bed

40.55
Max Turning Diameter

35.4
Max Turning Length

86.6
Chuck

Chuck Not Included
Spindle Nose

A1-20
Spindle Motor

50/73 hp
Spindle Speed

1,000 rpm
Bar Capacity

6.52

Product Image

SMART NL 2500SY – BOX WAY – (10″ CHUCK)

Swing Over Bed

31.89
Max Turning Diameter

15.51
Max Turning Length

28.07
Chuck /Sub Spindle

10 / 8
Spindle Nose / Sub Spindle

A2-8 / A2-6
Spindle Motor / Sub Spindle

25/35 hp / 20 hp
Spindle Speed / Sub Spindle

4,000 rpm / 5,000 rpm
Bar Capacity / Sub Spindle

3.19 / 2.0

Product Image

SMART NL 3500BY – BOX WAY – (15″ CHUCK)

Swing Over Bed

33.5
Max Turning Diameter

16.9
Max Turning Length

57
Chuck

15
Spindle Nose

A2-11
Spindle Motor

40 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.6

Product Image

SMART NL 5000LY – BOX WAY – (21″ CHUCK)

Swing Over Bed

35.4
Max Turning Diameter

21.6
Max Turning Length

78.4
Chuck

21
Spindle Nose

A2-15
Spindle Motor

60 hp
Spindle Speed

1,500 rpm
Bar Capacity

6.56

Product Image

SMART MINI – LINEAR WAY – (CAT40, 12K)

X Travel

23.6
Y Travel

17.72
Z Travel

19.69
Table Size

29.53 x 17.72
Spindle Taper

CAT40
Spindle Speed

12,000 rpm
AC Spindle Motor

10/15 HP

Product Image

SMART SV 2 – LINEAR WAY – (CAT40, 12K)

X Travel

31.4
Y Travel

19.6
Z Travel

19.6
Table Size

19.6 x 39.2
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

20/25 hp
Magazine Capacity

30

Product Image

SMART SV 3 – LINEAR WAY – (CAT40, 12K)

X Travel

41.34
Y Travel

20.47
Z Travel

20.47
Table Size

45.28 x 19.69
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

20/25 hp
Magazine Capacity

30

Product Image

SMART SV 4 – LINEAR WAY – (CAT40, 12K)

X Travel

51.18
Y Travel

25.59
Z Travel

23.62
Table Size

57.09 x 23.62
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

20/25 hp
Magazine Capacity

30

Product Image

X Travel

22.05
Y Travel

22.05
Z Travel

27.17
Table Size

15.75
Spindle Taper

#40
Spindle Speed

100 - 15,000 RPM
Spindle HP

50
Spindle Torque (ft/lbs)

184
Rapid Traverse Rate

2,480
Number of Tools

60

Product Image

X Travel

31
Y Travel

29
Z Travel

32.7
Table Size

20
Spindle Taper

50
Spindle Speed

12,000 rpm
Spindle Torque (ft/lbs)

310
Rapid Traverse Rate

1,968
Number of Tools

60

Product Image

X Travel

39
Y Travel

37
Z Travel

41.3
Table Size

24
Spindle Taper

50
Spindle Speed

12,000 rpm
Spindle Torque (ft/lbs)

310
Rapid Traverse Rate

2,362
Number of Tools

64/88

Product Image

SMART KT 420AL – CROSS ROLLER WAY – (BT30, 15K)

X Travel

27.5
Y Travel

16.5
Z Travel

11.8
Table Size

31.5 x 15.7
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

25 / 7.5 hp
Magazine Capacity

20

Product Image

SMART KT 360D – LINEAR WAY – (BT30, 15K)

X Travel

20.5
Y Travel

14.2
Z Travel

11.8
Table Size

29.59 x 13.7
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10/7.5 hp
Magazine Capacity

14

Product Image

SMART KM 450D – LINEAR WAY – (CAT40, 12K)

X Travel

27.6
Y Travel

17.7
Z Travel

18.9
Table Size

27.5 x 17.7
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

15/10 hp
Magazine Capacity

30

Product Image

SW 316 – BRIDGE TYPE – (CAT50, 6K)

X Travel

122.05
Y Travel

62.99
Z Travel

30.71
Table Size

118.11 x 57.09
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

Product Image

SMART NL 1500 – BOX WAY – (6″ CHUCK)

Swing Over Bed

22.44
Max Turning Diameter

15.39
Max Turning Length

22.05
Chuck

6
Spindle Nose

A2-5
Spindle Motor

15/25 hp
Spindle Speed

6,000 rpm
Bar Capacity

2.01

Product Image

SMART NL 2000 – BOX WAY – (8″ CHUCK)

Swing Over Bed

22.44
Max Turning Diameter

15.39
Max Turning Length

22.05
Chuck

8
Spindle Nose

A2-6
Spindle Motor

20/25 hp
Spindle Speed

4,500 rpm
Bar Capacity

2.64

Product Image

Private: SMART NL 2500S/500 – BOX WAY – (10″ CHUCK)

Swing Over Bed

27.56
Max Turning Diameter

18.90
Max Turning Length

20.87
Chuck

10
Spindle Nose

A2-8
Spindle Motor

25 hp
Spindle Speed

4,000 rpm
Bar Capacity

3.2

Product Image

SMART NL 2500/750 – BOX WAY – (10″ CHUCK)

Swing Over Bed

27.56
Max Turning Diameter

18.90
Max Turning Length

29.53
Chuck

10
Spindle Nose

A2-8
Spindle Motor

47 hp
Spindle Speed

4,000 rpm
Bar Capacity

3.19

Product Image

Private: SMART NL 2500/1100 – BOX WAY – (10″ CHUCK)

Swing Over Bed

27.56
Max Turning Diameter

18.90
Max Turning Length

43.31
Chuck

10
Spindle Nose

A2-8
Spindle Motor

47 hp
Spindle Speed

4,000 rpm
Bar Capacity

3.19

Product Image

SMART NL 3000B – BOX WAY – (12″ CHUCK)

Swing Over Bed

27.56
Max Turning Diameter

18.90
Max Turning Length

29.53
Chuck

12
Spindle Nose

A2-11
Spindle Motor

29.5/47 hp
Spindle Speed

2,800 rpm
Bar Capacity

4.02

Product Image

SMART NL 3000BL – BOX WAY – (12″ CHUCK)

Swing Over Bed

27.56
Max Turning Diameter

18.90
Max Turning Length

43.31
Chuck

12
Spindle Nose

A2-11
Spindle Motor

29.5/47 hp
Spindle Speed

2,800 rpm
Bar Capacity

4.02

Product Image

SMART NL 4000 – BOX WAY – (18″ CHUCK)

Swing Over Bed

31.10
Max Turning Diameter

22.83
Max Turning Length

47.76
Chuck

18
Spindle Nose

A2-11
Spindle Motor

40/60 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.63

Product Image

SMART NL 4000L – BOX WAY

Swing Over Bed

31.10
Max Turning Diameter

22.83
Max Turning Length

87.13
Chuck

18
Spindle Nose

A2-11
Spindle Motor

40/60 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.59

Product Image

SMART NL 5000 – BOX WAY – (21″ CHUCK)

Swing Over Bed

35.43
Max Turning Diameter

26.38
Max Turning Length

45.47
Chuck

21
Spindle Nose

A2-15
Spindle Motor

40/60 hp
Spindle Speed

1,500 rpm
Bar Capacity

6.56

Product Image

SMART NL 5000L – BOX WAY – (21″ CHUCK)

Swing Over Bed

35.43
Max Turning Diameter

22.83
Max Turning Length

84.84
Chuck

21
Spindle Nose

A2-15
Spindle Motor

40/60 hp
Spindle Speed

1,500 rpm
Bar Capacity

6.56

Product Image

SMART NL 6000S/750 – BOX WAY (24″ CHUCK)

Swing Over Bed

40.55
Max Turning Diameter

37.80
Max Turning Length

29.53
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

Product Image

SMART NL 6000/1500 – BOX WAY (24″ CHUCK)

Swing Over Bed

40.55
Max Turning Diameter

37.80
Max Turning Length

61.02
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

Product Image

SMART NL 6000L – BOX WAY – (24″ CHUCK)

Swing Over Bed

40.55
Max Turning Diameter

37.80
Max Turning Length

88.58
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

Product Image

SMART NL 6000XL – BOX WAY – (24″ CHUCK)

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

125
Chuck

24
Spindle Nose

A2-15
Spindle Motor

73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.55

Product Image

SMART NL 1500M – BOX WAY – (6″ CHUCK)

Swing Over Bed

22.44
Max Turning Diameter

15.0
Max Turning Length

21.26
Chuck

6
Spindle Nose

A2-5
Spindle Motor

15/25 hp
Spindle Speed

6,000 rpm
Bar Capacity

2.01

Product Image

SMART NL 2000M – BOX WAY – (8″ CHUCK)

Swing Over Bed

22.44
Max Turning Diameter

15.0
Max Turning Length

21.26
Chuck

8
Spindle Nose

A2-6
Spindle Motor

20/25 hp
Spindle Speed

4,500 rpm
Bar Capacity

2.56

Product Image

SMART NL 2000BM – BOX WAY – (10″ CHUCK)

Swing Over Bed

22.44
Max Turning Diameter

15.0
Max Turning Length

21.26
Chuck

10
Spindle Nose

A2-8
Spindle Motor

20/25 hp
Spindle Speed

3,500 rpm
Bar Capacity

3.19

Product Image

Private: SMART NL 2500SM/500 – BOX WAY – (10″ CHUCK)

Swing Over Bed

27.56
Max Turning Diameter

17.72
Max Turning Length

18.90
Chuck

10
Spindle Nose

A2-8
Spindle Motor

25 hp
Spindle Speed

4,000 rpm
Bar Capacity

3.2

Product Image

SMART NL 2500M/750 – BOX WAY – (10″ CHUCK)

Swing Over Bed

27.56
Max Turning Diameter

17.72
Max Turning Length

27.56
Chuck

10
Spindle Nose

A2-8
Spindle Motor

47 hp
Spindle Speed

4,000 rpm
Bar Capacity

3.19

Product Image

SMART NL 3000BM – BOX WAY – (12″ CHUCK)

Swing Over Bed

27.56
Max Turning Diameter

17.72
Max Turning Length

29.53
Chuck

12
Spindle Nose

A2-11
Spindle Motor

29.5/47 hp
Spindle Speed

2,800 rpm
Bar Capacity

4.02

Product Image

SMART NL 3000BLM – BOX WAY – (12″ CHUCK)

Swing Over Bed

27.56
Max Turning Diameter

17.72
Max Turning Length

41.34
Chuck

12
Spindle Nose

A2-11
Spindle Motor

29.5/47 hp
Spindle Speed

2,800 rpm
Bar Capacity

4.02

Product Image

SMART NL 4000M – BOX WAY – (18″ CHUCK)

Swing Over Bed

31.10
Max Turning Diameter

22.05
Max Turning Length

45.08
Chuck

18
Spindle Nose

A2-11
Spindle Motor

40 / 60 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.59

Product Image

SMART NL 4000LM – BOX WAY (18″ CHUCK)

Swing Over Bed

31.10
Max Turning Diameter

22.05
Max Turning Length

84.5
Chuck

18
Spindle Nose

A2-11
Spindle Motor

40 / 60 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.59

Product Image

SMART NL 5000M – BOX WAY – (21″ CHUCK)

Swing Over Bed

35.43
Max Turning Diameter

22.05
Max Turning Length

44.06
Chuck

21
Spindle Nose

A2-15
Spindle Motor

40/60 hp
Spindle Speed

1,500 rpm
Bar Capacity

6.56

Product Image

SMART NL 5000LM – BOX WAY – (21″ CHUCK)

Swing Over Bed

35.43
Max Turning Diameter

22.05
Max Turning Length

83.43
Chuck

21
Spindle Nose

A2-15
Spindle Motor

40/60 hp
Spindle Speed

1,500 rpm
Bar Capacity

6.56

Product Image

SMART NL 6000SM/750 – BOX WAY – (24″ CHUCK)

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

27.56
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.52

Product Image

SMART NL 6000M/1500 – BOX WAY – (24″ CHUCK)

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

59.06
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50 / 73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

Product Image

SMART NL 6000LM – BOX WAY – (24″ CHUCK)

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

86.61
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

Product Image

SMART NL 6000XLM – BOX WAY – (24″ CHUCK)

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

125.98
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

Product Image

SMART NL 6000XXLM – BOX WAY – (24″ CHUCK)

Swing Over Bed

40.55
Max Turning Diameter

35.43
Max Turning Length

157
Chuck

24
Spindle Nose

A1-15
Spindle Motor

50/73 hp
Spindle Speed

1,200 rpm
Bar Capacity

6.56

Product Image

SMART NL 6000CM – BOX WAY – (24″ CHUCK)

Swing Over Bed

40.55
Max Turning Diameter

37.80
Max Turning Length

61.02
Chuck

Chuck Not Included
Spindle Nose

A1-20
Spindle Motor

50/73 hp
Spindle Speed

1,000 rpm
Bar Capacity

10.8

Product Image

SMART NL 6000CLM – BOX WAY – (24″ CHUCK)

Swing Over Bed

40.55
Max Turning Diameter

35.4
Max Turning Length

86.6
Chuck

Chuck Not Included
Spindle Nose

A1-20
Spindle Motor

50/73 hp
Spindle Speed

1,000 rpm
Bar Capacity

6.52

Product Image

SMART NL 6000CXLM – BOX WAY – (24″ CHUCK)

Swing Over Bed

40.55
Max Turning Diameter

35.4
Max Turning Length

125.9
Chuck

Chuck Not Included
Spindle Nose

A1-20
Spindle Motor

50/73 hp
Spindle Speed

1,000 rpm
Bar Capacity

6.56

Product Image

SMART NL 2000ASY – BOX WAY – (6″ CHUCK)

Swing Over Bed

31.89
Max Turning Diameter

16.18
Max Turning Length

29.53
Chuck

6
Spindle Nose

A2-5
Spindle Motor

15 / 25 hp
Spindle Speed

6,000 rpm
Bar Capacity

2.00

Product Image

SMART NL 2000BSY – BOX WAY – (8″ CHUCK)

Swing Over Bed

31.89
Max Turning Diameter

16.18
Max Turning Length

28.94
Chuck

8
Spindle Nose

A2-6
Spindle Motor

20/25 hp
Spindle Speed

4,500 rpm
Bar Capacity

2.64

Product Image

SMART NL 2500SY – BOX WAY – (10″ CHUCK)

Swing Over Bed

31.89
Max Turning Diameter

15.51
Max Turning Length

28.07
Chuck /Sub Spindle

10 / 8
Spindle Nose / Sub Spindle

A2-8 / A2-6
Spindle Motor / Sub Spindle

25/35 hp / 20 hp
Spindle Speed / Sub Spindle

4,000 rpm / 5,000 rpm
Bar Capacity / Sub Spindle

3.19 / 2.0

Product Image

SMART NL 3500BY – BOX WAY – (15″ CHUCK)

Swing Over Bed

33.5
Max Turning Diameter

16.9
Max Turning Length

57
Chuck

15
Spindle Nose

A2-11
Spindle Motor

40 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.6

Product Image

SMART NL 4000LY – BOX WAY – (18″ CHUCK)

Swing Over Bed

35.4
Max Turning Diameter

21.6
Max Turning Length

79.4
Chuck

18
Spindle Nose

A2-11
Spindle Motor

60 hp
Spindle Speed

2,000 rpm
Bar Capacity

4.63

Product Image

SMART NL 5000LY – BOX WAY – (21″ CHUCK)

Swing Over Bed

35.4
Max Turning Diameter

21.6
Max Turning Length

78.4
Chuck

21
Spindle Nose

A2-15
Spindle Motor

60 hp
Spindle Speed

1,500 rpm
Bar Capacity

6.56

Product Image

SMART MINI – LINEAR WAY – (CAT40, 12K)

X Travel

23.6
Y Travel

17.72
Z Travel

19.69
Table Size

29.53 x 17.72
Spindle Taper

CAT40
Spindle Speed

12,000 rpm
AC Spindle Motor

10/15 HP

Product Image

SMART SV 1 – LINEAR WAY – (CAT40, 8K)

X Travel

23.6
Y Travel

17.7
Z Travel

19.7
Table Size

29.5 x 17.7
Spindle Taper

CAT40
Spindle Speed

8,000 rpm
Spindle HP

15/20 hp
Magazine Capacity

24

Product Image

SMART SV 2 – LINEAR WAY – (CAT40, 12K)

X Travel

31.4
Y Travel

19.6
Z Travel

19.6
Table Size

19.6 x 39.2
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

20/25 hp
Magazine Capacity

30

Product Image

SMART SV 3 – LINEAR WAY – (CAT40, 12K)

X Travel

41.34
Y Travel

20.47
Z Travel

20.47
Table Size

45.28 x 19.69
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

20/25 hp
Magazine Capacity

30

Product Image

SMART SV 4 – LINEAR WAY – (CAT40, 12K)

X Travel

51.18
Y Travel

25.59
Z Travel

23.62
Table Size

57.09 x 23.62
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

20/25 hp
Magazine Capacity

30

Product Image

SMART SV 5 – LINEAR WAY – (CAT40, 12K)

X Travel

51.18
Y Travel

27.56
Z Travel

27.56
Table Size

57.09 x 25.59
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

20/25 hp
Magazine Capacity

30

Product Image

SMART KM 430 – CROSS ROLLER WAY – (BT40, 12K)

X Travel

31
Y Travel

16.9
Z Travel

16.9
Table Size

36 x 16
Spindle Taper

BT40
Spindle Speed

12,000 rpm
Spindle HP

15 hp
Magazine Capacity

20

Product Image

SMART KM 500 – CROSS ROLLER WAY – (BT30, 12K)

X Travel

39
Y Travel

19.9
Z Travel

20.4
Table Size

40 x 20
Spindle Taper

BT30
Spindle Speed

12,000 rpm
Spindle HP

15 hp
Magazine Capacity

24

Product Image

SMART NV 5500L – LINEAR WAY – (CAT40, 12K)

X Travel

53.15
Y Travel

22.44
Z Travel

20.8
Table Size

59.06 x 22.44
Spindle Taper

CAT40 (BIG Plus)
Spindle Speed

12,000 rpm
Spindle HP

25 hp
Magazine Capacity

30

Product Image

SMART SM 1100-50 – BOX WAY – (CAT50, 6K)

X Travel

43.31
Y Travel

23.62
Z Travel

24.8
Table Size

50 x 23.62
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

30/25 hp
Magazine Capacity

32

Product Image

SMART SM 1370-50 – BOX WAY – (CAT50, 6K)

X Travel

51.18
Y Travel

27.56
Z Travel

25.98
Table Size

57.09 x 27.56
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35/30 hp
Magazine Capacity

24

Product Image

SMART SM 1682-50 – BOX WAY – (CAT50, 6K)

X Travel

62.99
Y Travel

32.28
Z Travel

25.98
Table Size

69.9 x 32.28
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35/30 hp
Magazine Capacity

40

Product Image

SMART SM 1682-50 – BOX WAY – (CAT50, 10K)

X Travel

62.99
Y Travel

32.28
Z Travel

25.98
Table Size

69.9 x 32.28
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

10,000 rpm
Spindle HP

25 hp
Magazine Capacity

40

Product Image

SMART SM 2082-50 – BOX WAY – (CAT50, 6K)

X Travel

81.1
Y Travel

32.28
Z Travel

25.98
Table Size

84.65 x 32.28
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35/30 hp
Magazine Capacity

40

Product Image

SMART SM 2110-50 – BOX WAY – (CAT50, 6K)

X Travel

82.68
Y Travel

40.16
Z Travel

32.28
Table Size

88.58 x 40.16
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35/30 hp
Magazine Capacity

40

Product Image

X Travel

31
Y Travel

29
Z Travel

32.7
Table Size

20
Spindle Taper

50
Spindle Speed

12,000 rpm
Spindle Torque (ft/lbs)

310
Rapid Traverse Rate

1,968
Number of Tools

60

Product Image

X Travel

39
Y Travel

37
Z Travel

41.3
Table Size

24
Spindle Taper

50
Spindle Speed

12,000 rpm
Spindle Torque (ft/lbs)

310
Rapid Traverse Rate

2,362
Number of Tools

64/88

Product Image

X Travel

22.05
Y Travel

22.05
Z Travel

27.17
Table Size

15.75
Spindle Taper

#40
Spindle Speed

100 - 15,000 RPM
Spindle HP

50
Spindle Torque (ft/lbs)

184
Rapid Traverse Rate

2,480
Number of Tools

60

Product Image

SMART KM 450D – LINEAR WAY – (CAT40, 12K)

X Travel

27.6
Y Travel

17.7
Z Travel

18.9
Table Size

27.5 x 17.7
Spindle Taper

CAT40 (BIG PLUS)
Spindle Speed

12,000 rpm
Spindle HP

15/10 hp
Magazine Capacity

30

Product Image

SMART KT 360D – LINEAR WAY – (BT30, 15K)

X Travel

20.5
Y Travel

14.2
Z Travel

11.8
Table Size

29.59 x 13.7
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10/7.5 hp
Magazine Capacity

14

Product Image

SMART KT 420 – CROSS ROLLER WAY – (BT30, 15K)

X Travel

22
Y Travel

16.5
Z Travel

11.8
Table Size

25.9 x 15.7
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10 hp
Magazine Capacity

14

Product Image

SMART KT 420L – CROSS ROLLER WAY – (BT30, 15K)

X Travel

27.5
Y Travel

16.5
Z Travel

11.8
Table Size

31.5 x 15.7
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10 hp
Magazine Capacity

14

Product Image

SMART KT 420A – CROSS ROLLER WAY – (BT30, 15K)

X Travel

22
Y Travel

16.5
Z Travel

11.8
Table Size

25.9 x 15.7
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

25 / 7.5 hp
Magazine Capacity

20

Product Image

SMART KT 420AL – CROSS ROLLER WAY – (BT30, 15K)

X Travel

27.5
Y Travel

16.5
Z Travel

11.8
Table Size

31.5 x 15.7
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

25 / 7.5 hp
Magazine Capacity

20

Product Image

SMART KT 420DH – CROSS ROLLER WAY – (BT30, 15K)

X Travel

22
Y Travel

16.5
Z Travel

16.9
Table Size

15.7 x 45
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10 hp
Magazine Capacity

2-20

Product Image

SMART KT 450DH – CROSS ROLLER WAY – (CAT40, 12K)

X Travel

22
Y Travel

16
Z Travel

16.9
Table Size

15.7 x 45
Spindle Taper

CAT40
Spindle Speed

12,000 rpm
Spindle HP

15 hp
Magazine Capacity

2-26

Product Image

SMART KT 500 – CROSS ROLLER WAY – (BT30, 15K)

X Travel

39
Y Travel

19
Z Travel

12
Table Size

44 x 19
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10 hp
Magazine Capacity

14

Product Image

SMART KT 700 – CROSS ROLLER WAY – (BT30, 15K)

X Travel

31
Y Travel

27
Z Travel

12
Table Size

31 x 27
Spindle Taper

BT30
Spindle Speed

15,000 rpm
Spindle HP

10 hp
Magazine Capacity

14

Product Image

SMART SM30-2500

X AXIS TRAVEL (INCHES)

98.42
Y AXIS TRAVEL (INCHES)

15.75
Z AXIS TRAVEL (INCHES)

15.75
TABLE SIZE (INCHES)

98.42 x 15.75
SPINDLE TAPER

BBT30
SPINDLE SPEED

12,000 RPM
SPINDLE HP

5.5 HP
MAGAZINE CAPACITY

16

Product Image

SMART SM30-4500

X AXIS TRAVEL (INCHES)

177.17
Y AXIS TRAVEL (INCHES)

15.75
Z AXIS TRAVEL (INCHES)

15.75
TABLE SIZE (INCHES)

177.17 x 15.75
SPINDLE TAPER

BBT30
SPINDLE SPEED

12,000 RPM
SPINDLE HP

5.5 HP
MAGAZINE CAPACITY

16

Product Image

SMART SM30-6500

X AXIS TRAVEL (INCHES)

255.91
Y AXIS TRAVEL (INCHES)

15.75
Z AXIS TRAVEL (INCHES)

15.75
TABLE SIZE

255.91 x 15.75
SPINDLE TAPER

BBT30
SPINDLE SPEED

12,000 RPM
SPINDLE HP

5.5 HP
MAGAZINE CAPACITY

16

Product Image

SMART SM40-4500

X AXIS TRAVEL (INCHES)

177
Y AXIS TRAVEL (INCHES)

23
Z AXIS TRAVEL (INCHES)

18
TABLE SIZE (INCHES)

177 x 23
SPINDLE TAPER

CAT40 (BIG PLUS)
SPINDLE SPEED

12,000 RPM
SPINDLE HP

15 HP
MAGAZINE CAPACITY

30

Product Image

SMART SM40-6500

X AXIS TRAVEL (INCHES)

256
Y AXIS TRAVEL (INCHES)

23
Z AXIS TRAVEL (INCHES)

18
TABLE SIZE (INCHES)

256 x 23
SPINDLE TAPER

CAT40 (BIG PLUS)
SPINDLE SPEED

12,000 RPM
SPINDLE HP

15 HP
MAGAZINE CAPACITY

30

Product Image

SMART SM40-8500

X AXIS TRAVEL (INCHES)

335
Y AXIS TRAVEL (INCHES)

23
Z AXIS TRAVEL (INCHES)

18
TABLE SIZE (INCHES)

335 x 23
SPINDLE TAPER

CAT40 (BIG PLUS)
SPINDLE SPEED

12,000 RPM
SPINDLE HP

15 HP
MAGAZINE CAPACITY

30

Product Image

HSA 2212 – BRIDGE TYPE – (CAT40, 12K)

X Travel

88.58
Y Travel

47.24
Z Travel

30.71
Table Size

78.74 x 43.31
Spindle Taper

CAT40 (BIG Plus)
Spindle Speed

12,000 RPM
Spindle HP

25 hp
Magazine Capacity

40

Product Image

HSA 2212 – BRIDGE TYPE – (CAT50, 6K/12K)

X Travel

88.58
Y Travel

47.24
Z Travel

30.71
Table Size

78.74 x 43.31
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/12,000 RPM
Spindle HP

35 hp
Magazine Capacity

40

Product Image

HSA 3212 – BRIDGE TYPE – (CAT50, 6K)

X Travel

127.95
Y Travel

47.24
Z Travel

30.71
Table Size

118.11 x 43.31
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 RPM
Spindle HP

35 hp
Magazine Capacity

40

Product Image

HSA 323 – BRIDGE TYPE – (CAT50, 6K/12K)

X Travel

118.11
Y Travel

90.55
Z Travel

30.71
Table Size

118.11 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/12,000 RPM
Spindle HP

35 hp
Magazine Capacity

40

Product Image

HSA 423 – BRIDGE TYPE – (CAT50, 6K/12K)

X Travel

157.48
Y Travel

90.55
Z Travel

30.71
Table Size

157.48 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/12,000 RPM
Spindle HP

35 hp
Magazine Capacity

40

Product Image

HSA 523 – BRIDGE TYPE – (CAT50, 6K/12K)

X Travel

196.85
Y Travel

90.55
Z Travel

30.71
Table Size

196.85 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000/12,000 RPM
Spindle HP

35 hp
Magazine Capacity

40

Product Image

SW 216 – BRIDGE TYPE – (CAT50, 6K)

X Travel

82.68
Y Travel

62.99
Z Travel

30.71
Table Size

78.74 x 57.09
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

Product Image

SW 316 – BRIDGE TYPE – (CAT50, 6K)

X Travel

122.05
Y Travel

62.99
Z Travel

30.71
Table Size

118.11 x 57.09
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

Product Image

SW 323 – BRIDGE TYPE – (CAT50, 6K)

X Travel

118.11
Y Travel

90.55
Z Travel

30.71
Table Size

118.11 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

Product Image

SW 423 – BRIDGE TYPE – (CAT50, 6K)

X Travel

157.48
Y Travel

90.55
Z Travel

30.71
Table Size

157.48 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

Product Image

SW 523 – BRIDGE TYPE – (CAT50, 6K)

X Travel

196.85
Y Travel

90.55
Z Travel

30.71
Table Size

196.85 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

Product Image

SW 623 – BRIDGE TYPE – (CAT50, 6K)

X Travel

236.22
Y Travel

90.55
Z Travel

30.71
Table Size

236.22 x 86.61
Spindle Taper

CAT50 (BIG Plus)
Spindle Speed

6,000 rpm
Spindle HP

35 hp
Magazine Capacity

40

Product Image

SPINDLE DIAMETER

4.3''
X-TRAVELS

62.9''
Y-TRAVELS

59''
Z-TRAVELS

39.3''
W-TRAVELS

13.7''
ROTARY TABLE SIZE

39.3'' X 43.3''
MAX TABLE LOAD

6613 LBS
MACHINE WEIGHT

44092 LBS

Product Image

SPINDLE DIAMETER

5.1''
X-TRAVELS

59.1'' (78.7'')
Y-TRAVELS

59''
Z-TRAVELS

51.2''
W-TRAVELS

27.56''
ROTARY TABLE SIZE

55'' x 63''
MAX TABLE LOAD

15400 LBS
MACHINE WEIGHT

55113 LBS (57143 LBS)

Product Image

SPINDLE DIAMETER

5.1''
X-TRAVELS

118.1''
Y-TRAVELS

90''
Z-TRAVELS

51.2''
W-TRAVELS

27.56''
ROTARY TABLE SIZE

63'' X 70.9''
TABLE LOAD

26400 LBS
MACHINE WEIGHT

86906 LBS

Product Image

SPINDLE DIAMETER

5.1''
X-TRAVELS

157''
Y-TRAVELS

98''
Z-TRAVELS

63''
W-TRAVELS

27.55''
ROTARY TABLE SIZE

78.7'' X 86.6''
MAX TABLE LOAD

44000 LBS
MACHINE WEIGHT

94975 LBS

Product Image

SPINDLE DIAMETER

5.1''
X-TRAVELS

118.1''
Y-TRAVELS

78.7''
Z-TRAVELS

51.2''
W-TRAVELS

27.5''
ROTARY TABLE SIZE

55.1'' X 55.1''
MAX TABLE LOAD

15400 LBS
MACHINE WEIGHT

90389 LBS

Product Image

SPINDLE DIAMETER

5.1''
X-TRAVELS

157.5''
Y-TRAVELS

90.6''
Z-TRAVELS

51.1''
W-TRAVELS

27.56''
ROTATRY TABLE SIZE

63.0'' X 157.5''
MAX TABLE LOAD

44000 LBS
MACHINE WEIGHT

111686 LBS

Product Image

SPINDLE DIAMETER

5.9''
X-TRAVELS

118.1''
Y-TRAVELS

90.6''
Z-TRAVELS

63.0''
W-TRAVELS

27.6''
ROTARY TABLE SIZE

78.7'' X 86.6''
MAX TABLE LOAD

44000 LBS
MACHINE WEIGHT

95349 LBS

Product Image

SPINDLE DIAMETER

5.9''
X-TRAVELS

157''
Y-TRAVELS

98''
Z-TRAVELS

78''
W-TRAVELS

27.6''
ROTARY TABLE SIZE

78.7'' X 86.6''
MAX TABLE LOAD

44000 LBS
MACHINE WEIGHT

104256 LBS

Product Image

SPINDLE DIAMETER

5.9''
X-TRAVELS

157''
Y-TRAVELS

98''
Z-TRAVELS

63''
W-TRAVELS

39''
ROTARY TABLE SIZE

78.7'' X 86.6''
MAX TABLE LOAD

44000 LBS
MACHINE WEIGHT

104256 LBS

Product Image

SPINDLE DIAMETER

5.9''
X-TRAVELS

196.8'' (236.2'')
Y-TRAVELS

137.8''
Z-TRAVELS

78.7''
W-TRAVELS

39.4''
ROTARY TABLE SIZE

98.4'' X 118.1''
MAX TABLE LOAD

77000 LBS
MACHINE WEIGHT

187392 LBS

Product Image

TABLE SIZE

39.4''
MAX SWING/MAX TURNING DIAMETER

49.2''
MAX TURNING HEIGHT

31.5''
MAX LOAD

9920 LBS
TABLE SPEED

450 RPM
TABLE HP

40/50 HP
MACHINE WEIGHT

37478 LBS

Product Image

TABLE SIZE

47.2''
MAX SWING/MAX TURNING DIAMETER

63''
MAX TURNING HEIGHT

47.2''
MAX LOAD

14400 LBS
TABLE SPEED

330 RPM
TABLE HP

40/50 HP
MACHINE WEIGHT

44092 LBS

Product Image

TABLE SIZE

63''
MAX SWING/MAX TURNING DIAMETER

78.7''
MAX TURNING HEIGHT

63''
MAX LOAD

17600 LBS
TABLE SPEED

250 RPM
TABLE HP

50/60 HP
MACHINE WEIGHT

56000 LBS

Product Image

TABLE SIZE

78.7''
MAX SWING/MAX TURNING DIAMETER

98.4''
MAX TURNING HEIGHT

70.9''
MAX LOAD

26460 LBS
TABLE SPEED

200 RPM
TABLE HP

60/75 HP
MACHINE WEIGHT

105600 LBS

Product Image

TABLE SIZE

98'' (110'')
MAX SWING/MAX TURNING DIAMETER

118''
MAX TURNING HEIGHT

78''
MAX LOAD

44000 LBS
TABLE SPEED

130 RPM
TABLE HP

50/75 HP
MACHINE WEIGHT

132000 LBS

Product Image

TABLE SIZE

98.4''
MAX SWING/MAX TURNING DIAMETER

157.5''
MAX TURING HEIGHT

78.7'' (98'')
MAX LOAD

44000 LBS
TABLE SPEED

130 RPM
TABLE HP

60/75 HP
MACHINE WEIGHT

151800 LBS

Product Image

TABLE SIZE

118.1''
MAX SWING/MAX TURNING DIAMETER

157.5''
MAX TURNING HEIGHT

86'' (98'')
MAX LOAD

66000 LBS
TABLE SPEED

100 RPM
TABLE HP

80/100 HP
MACHINE WEIGHT

187000 LBS

Product Image

TABLE SIZE

157.5''
MAX SWING/MAX TURNING DIAMETER

196.9''
MAX TURNING HEIGHT

98.4''
MAX LOAD

110230 LBS
TABLE SPEED

50 RPM
TABLE HP

134 HP
MACHINE WEIGHT

321200 LBS

Product Image

TABLE SIZE

196.9''
MAX SWING/MAX TURNING DIAMETER

236.2''
MAX TURNING HEIGHT

118.1''
MAX LOAD

132280 LBS
TABLE SPEED

50 RPM
TABLE HP

208 HP
MACHINE WEIGHT

462000 LBS

Product Image

TABLE SIZE

236.2''
MAX SWING/MAX TURNING DIAMETER

275.6''
MAX TURNING HEIGHT

137.8''
MAX LOAD

330690 LBS
TABLE SPEED

40 RPM
TABLE HP

255 HP
MACHINE WEIGHT

643700 LBS

Product Image

TABLE SIZE

314.9''
MAX SWING/MAX TURNING DIAMETER

393.7''
MAX TURNING HEIGHT

236.2''
MAX LOAD

771618 LBS
TABLE SPEED

20 RPM
TABLE HP

355 HP
MACHINE WEIGHT

146400 LBS

Product Image

TABLE SIZE

393.7''
MAX SWING/MAX TURNING DIAMETER

629.9''
MAX TURNING HEIGHT

236.2''
MAX LOAD

992080 LBS
TABLE SPEED

15 RPM
TABLE HP

355 HP
MACHINE WEIGHT

1543000 LBS

Quick-Quote Finance

Dealer Locator

CNC Machine

Testimonials

CNC Machine

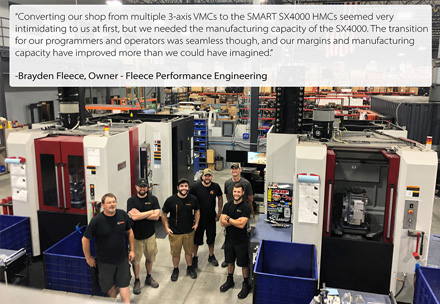

Homepage Testimonial Image

Homepage Testimonial Image 2

Homepage Testimonial Image 3

Homepage Testimonial Image 3

Virtual Tour

Site Map
© 2024 Smart Machine Tool U.S.A - All Rights Reserved.
Privacy Policy
Terms of Service
Contact Us
Google Plus
Website Design by Webstix
